• Model NO.：EMH3
• Main Girder Form：I-Beam
• Application：Gantry Crane
• Sling Type：Chain
• Lift Speed：2~8m,Min
• Chain Falls：2
• Color：Orange
• Capacity：500kg
• Transport Package：Plastic Cloth
• Specification：CE
• Trademark：LYFOOCRANE
• Origin：Beijing, China
• HS Code：84253190
• Production Capacity：10000

Basic Info.

Model NO. EMH3 Main Girder Form I-Beam Application Gantry Crane Sling Type Chain Lift Speed 2~8m/Min Chain Falls 2 Color Orange Capacity 500kg Transport Package Plastic Cloth Specification CE Trademark LYFOOCRANE Origin Beijing, China HS Code 84253190 Production Capacity 10000

Product Description

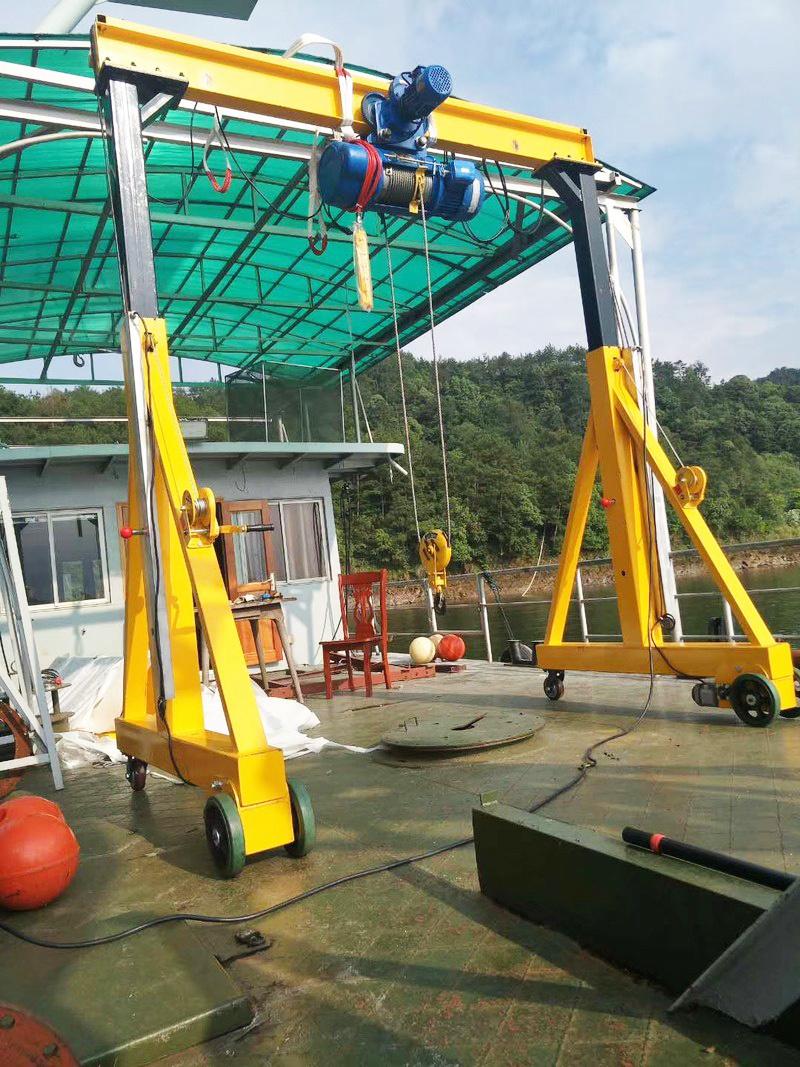

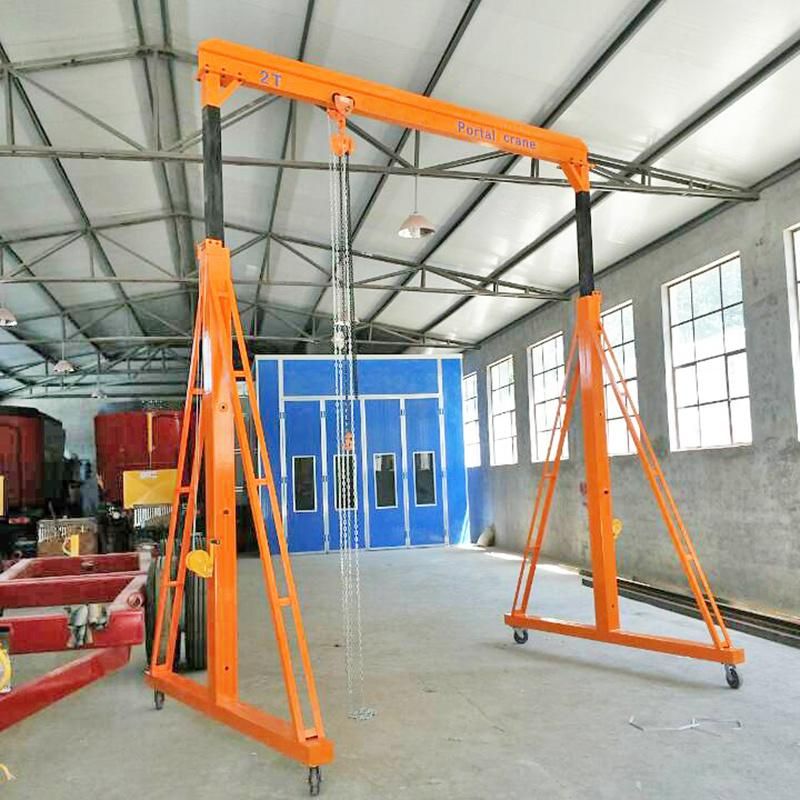

Non-Rail Gantry Crane

Non-Rail Mobile Gantry Crane

In many places, especially some confined place, where the general overhead crane or gantry crane is not applicalbe, the manual gantry crane is a very useful sololution.  It is a light duty, easy installation, easy operation equippment.

It is designed with rubber wheel ,by which, it can run on concrete floor.  The universal wheel on front can lead the gantry to any point by any direction.  The driving wheels can be electrical or manual type according to the site situation.

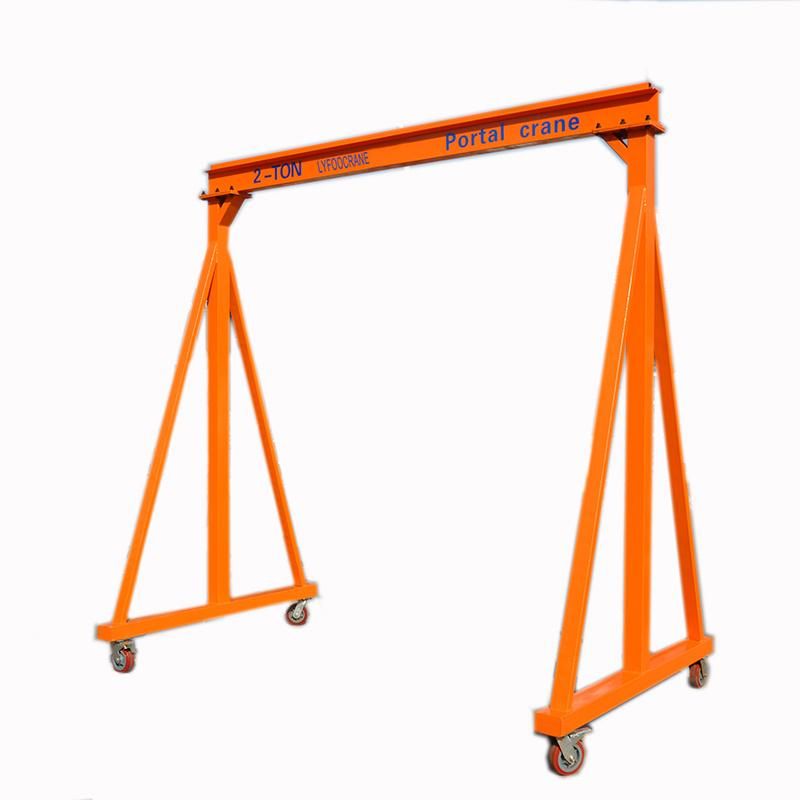

MH  Fixed Type

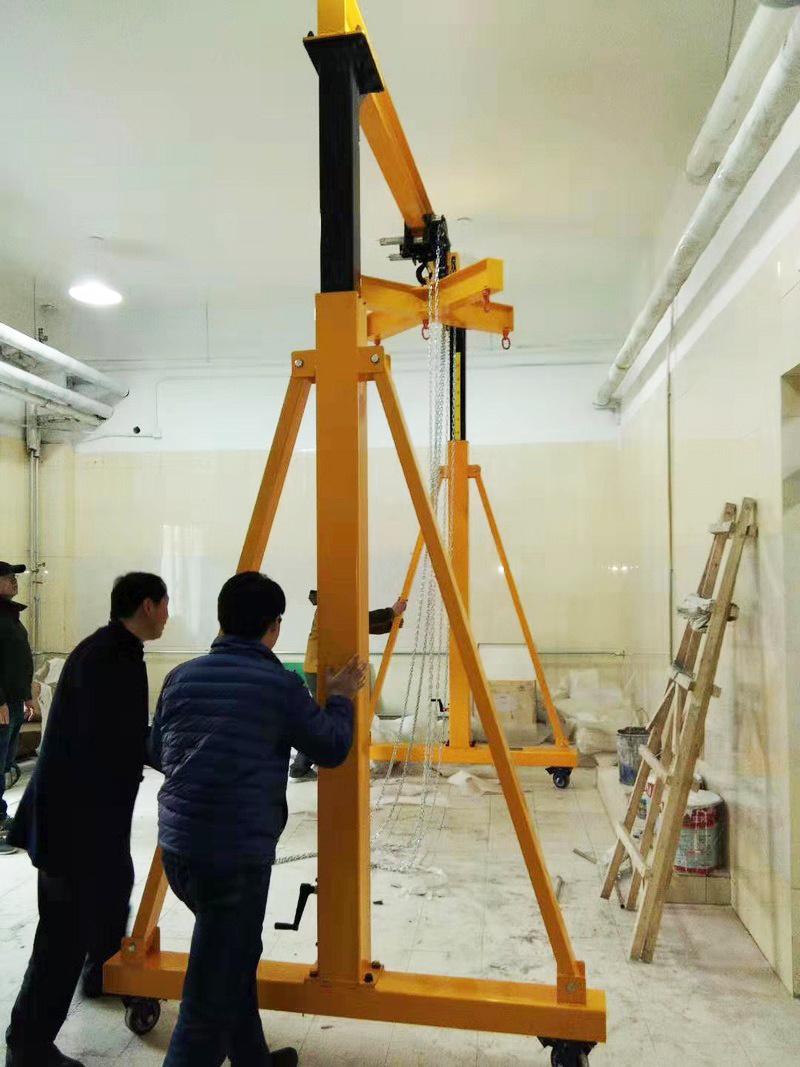

MH1 Height Adjustable by Manual Winch

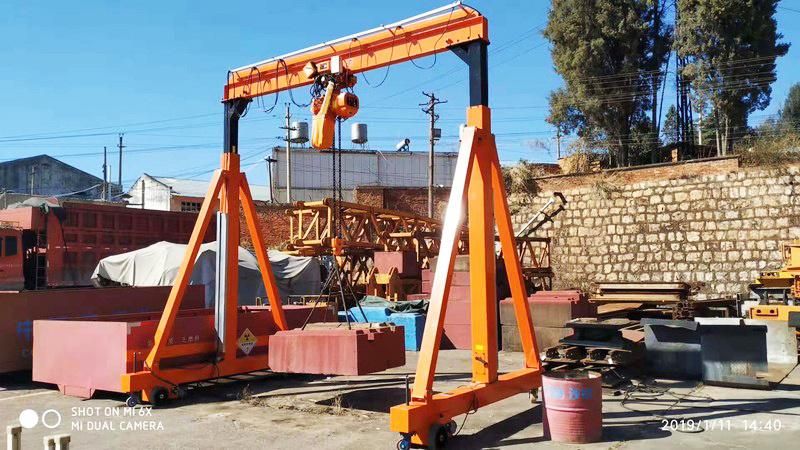

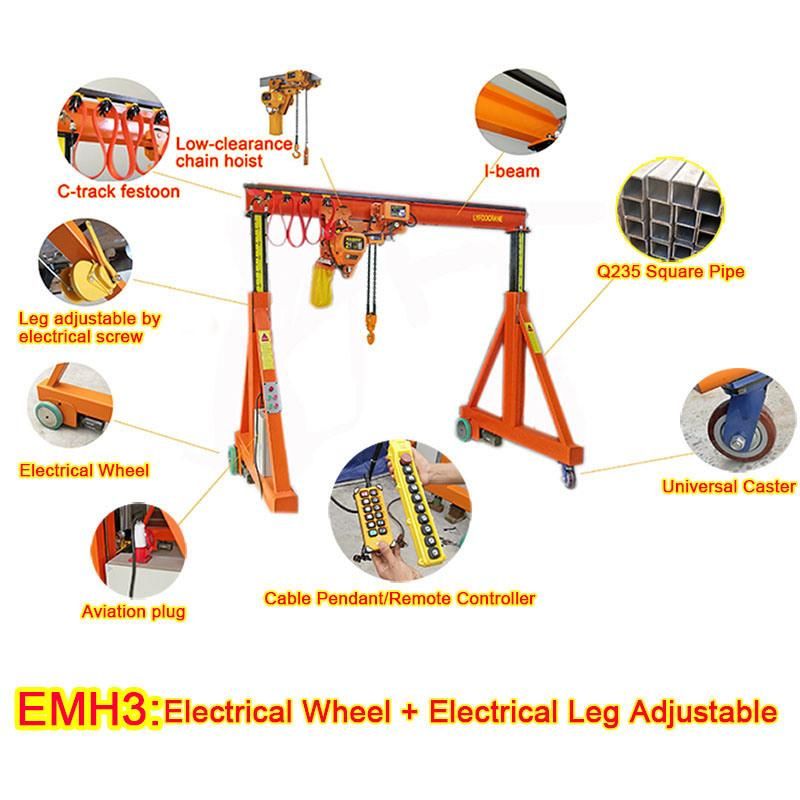

EMH3 Height Adjustable by Electrical Screw

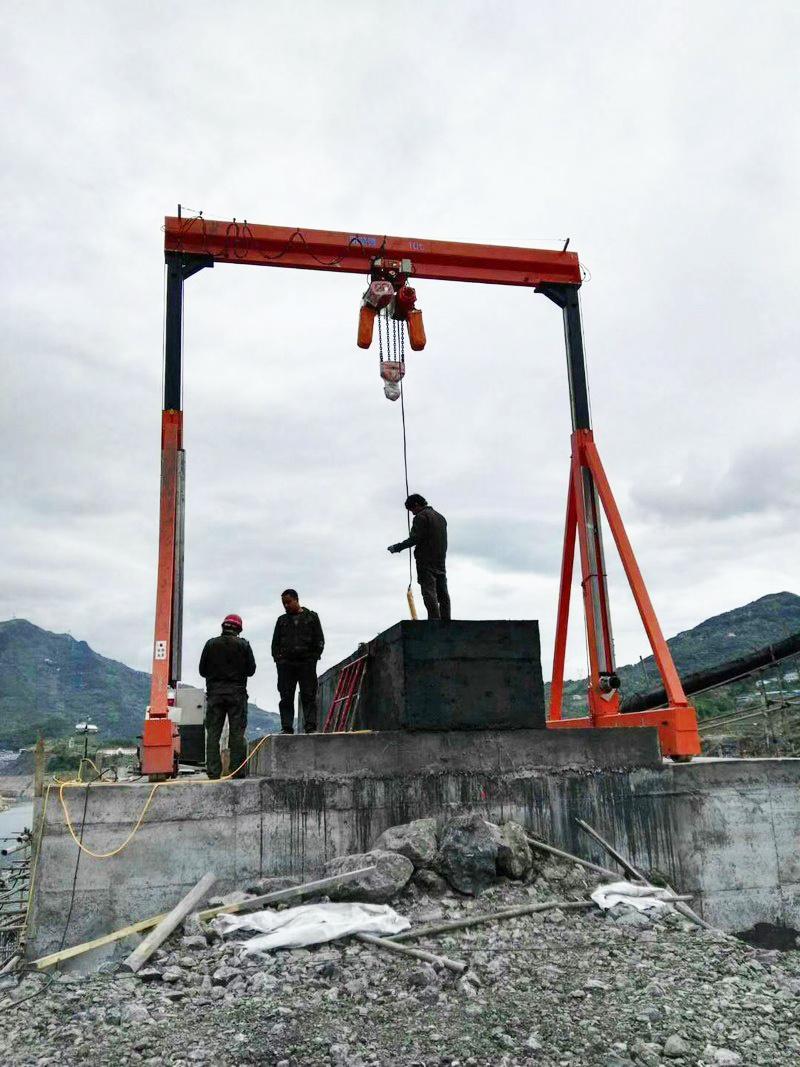

Beam Height Adjusted

The beam height can be rasied to different height.  It is very useful when certain area has some low roof.  As a result, you do not have to buy different cranes or tools. We provide 3 type of height adjusted gantry: Lever raising; Winch raising and Turbine raising model.

Features:

1. Bolt connection

All loose parts are connected by high-strength bolts. 2 worker can assemble them at site easily.



2. Nut embeded design

Ground beam has a nut embeded designing.  This makes the assemble work very simple.  All bolts and nuts are matched perfectly.

3. Span alternative

Clinet can order differnet span of beams to meet the same legs.  It can be assembled according to different working site.

4. Other features

Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection.
