• Model NO.：LD
• Main Girder Form：Single Girder
• Type：Ordinary
• Product Name：Workshop Overhead Crane
• Power Source：220V,380V,415 on Request
• Color：Industrial Yellow ,Red or on Request
• Girder Type：Box Type
• Insulation：F
• Application：Steel, Warehouse, Hydropower Station, Producti
• Motor：Gear Motor
• Aftersale Service：Engineer Overseas Service Available
• Electric Parts：Siemens Delixi Schneider
• Lifting Spped：8m,5m Per Minute
• Hoist Type：Rope Hoist
• Cross Speed：0~20m ,Min
• Work Duty：A3 A5 A6
• Lift Capacity：on Customer′s Request
• Transport Package：Standard Export Package
• Specification：Material: Q235B,Q345B
• Trademark：Mingdao
• Origin：China
• HS Code：8426112000
• Production Capacity：1000sets, Year

Basic Info.

Model NO. LD Main Girder Form Single Girder Type Ordinary Product Name Workshop Overhead Crane Power Source 220V/380V/415 on Request Color Industrial Yellow /Red or on Request Girder Type Box Type Insulation F Application Steel, Warehouse, Hydropower Station, Producti Motor Gear Motor Aftersale Service Engineer Overseas Service Available Electric Parts Siemens Delixi Schneider Lifting Spped 8m/5m Per Minute Hoist Type Rope Hoist Cross Speed 0~20m /Min Work Duty A3 A5 A6 Lift Capacity on Customer′s Request Transport Package Standard Export Package Specification Material: Q235B/Q345B Trademark Mingdao Origin China HS Code 8426112000 Production Capacity 1000sets/ Year

Product Description

                          Workshop Using LD Model Overhead Crane Materials Lifting Equipment


LD model single girder overhead crane is characterized by more reasonable structure and higher strength steel as a whole crane.
Single girder overhead crane is more typical when lifting capacity less than 20T.

Used together with CD1  model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 0.5 ton ~ 32ton.
The span is 7.5m~ 22.5m. Working duty is A3~A5, working temperature is -25-40ºC.
This product is widely used in steel mills, warehouse,hydropower station,production workshop, production line, materials stocks,
equipment assembly etc to lift goods.

We have comprehensive standard equipment and professional design engineers to offer best solutions for individual requirements.
This product has two operational methods, ground(pendent controller /remote controller) or operational cabin room .



Advantages of a single girder design:
1)Less expensive due to a simpler trolley design, reduced freight costs, simplified and faster installation, and less material for the
bridge and runway beams.

2)Most economical option for light to medium-duty cranes

3)Lower loads on the building structure or foundations due to a reduced deadweight. In many cases, it can be supported by existing
roof structure without the use of additional support columns.

4)Better hook approach for both trolley travel and bridge travel

5)Easier to install, service, and maintain

6)Ideal for workshops, warehouses, material yards, and manufacturing and production facilities

7)Lighter load on runway rails or beams means less wear on the beams and end truck wheels over time

8)Great for facilities with low headroom

Safe Devices:
1.Overload Limit Switch

2. Rubber Buffers 3.Electric Protective Devices

3.Emergency Stop System

4.Voltage Lower Protection Function

5. Current Overload Protection System

6. Rail Anchoring 8.Lifting Height Limit Device

Loading into container:

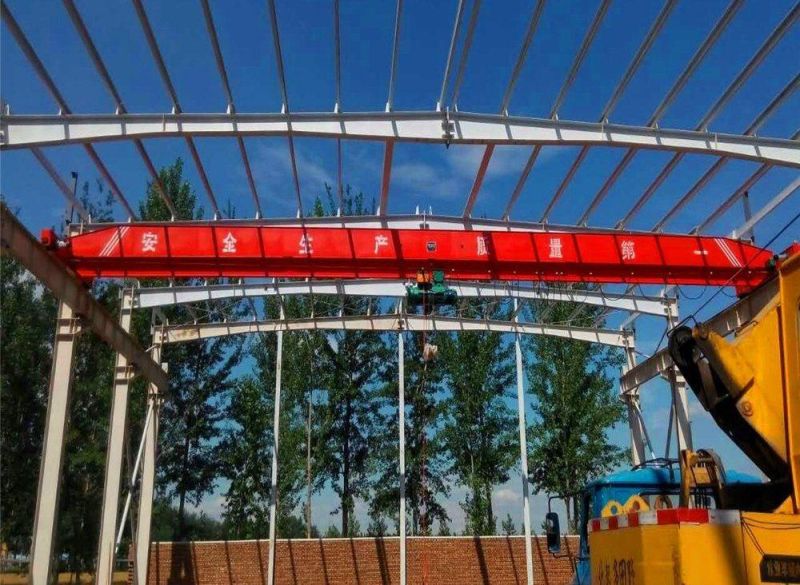

After installation:

Customer feedback:

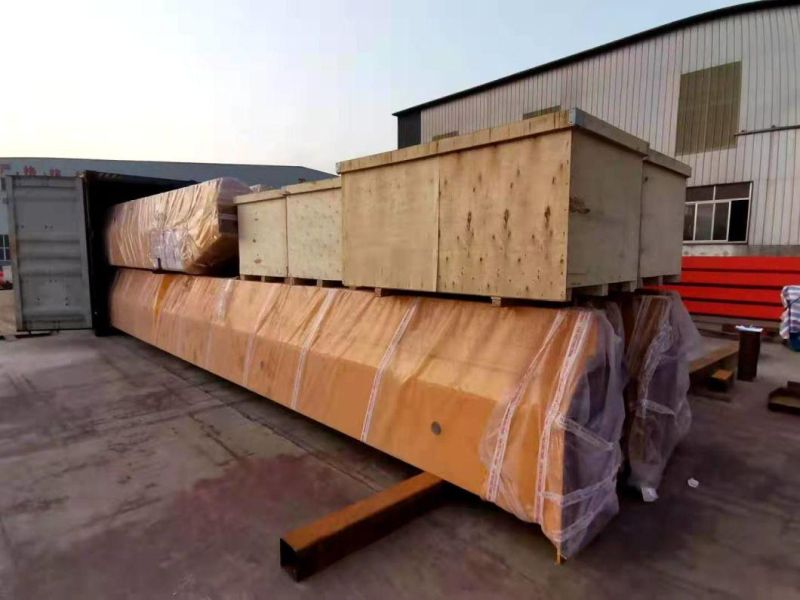

Shipping way of Mingdao Cranes:

♦ Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.

♦ Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce

   abrasion during the transportation.

♦ If the size are suitable for container ship, usually by container.

♦ Big size, usually by bulk ship or by container after truncation.

♦ Transport ways are based on reducing cost & keep safety.

Safe Devices:



FAQ ABOUT MINGDAO CRANES:

1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind
of operation way you need.

3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

5.In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
