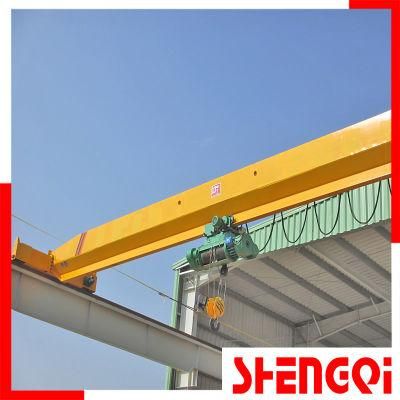

Single Girder Low-Clearance Eot Bridge Overhead Crane

Lyfoo Industry Co., Ltd.
  • Certification：CE, ISO9001
  • Condition：New
  • Operation Form：Air Operation+Ground Operation
  • Maximum Lifting Height：30-40m
  • Maximum Lifting Weight：10ton
  • Main Girder Form：Single Girder

Base Info

  • Model NO.：LT
  • Type：Beam
  • Feature：Bridge Crane
  • Rated Load Capacity：1-10t
  • Max. Lifting Load：10t
  • Max.Lifting Height：80m
  • Span：7.5m~35m
  • Voltage：380V,415V,440V
  • Frequency：50,60Hz
  • Stepless Speed Control：Available (Variable Frequency Control)
  • Electrical System Brand：Siemens,Schneider,Chint
  • Affiliate Documents：English Operation Manual, Wiring Diagram
  • Transport Package：Strong Wooden Box
  • Specification：Low Clearance
  • Trademark：LYFOO
  • Origin：China
  • HS Code：84261120
  • Production Capacity：5000 Units Per Year

Description

traveling mechanism Performance parameters 1-5t10tTraveling Speed (m/min)2020Reduction Ratio (i)3838MotortypeYESpower2×0.42×0.8Rotational speed1200Working SystemA5Power supply3phrase  380V    50HzWheel diameterФ200Width of Track37-70mm

Technical Characteristics:
1) Hard-tooth surface of reducer
2) Steel winding drum
3) Imported rope
4) Converter function of adjustable speed without contact or module
5) Intelligence controlling
6) Trinity drive


Cause this is a customized product, please provide us the following information
Capacity?
Lifting Height? (from hook to the ground)
Span?
Local Power-V-Hz-P?
