Nucleon 100~500kg Pillar Stand Articulating Arm Jib Crane Pneumatic Crane

Nucleon (Xinxiang) Crane Co., Ltd.
  • After-sales Service：Technical Advisory of Installation & Commissioning
  • Warranty：12 Months Warranty After Successful Installation
  • Certification：CE
  • Condition：New

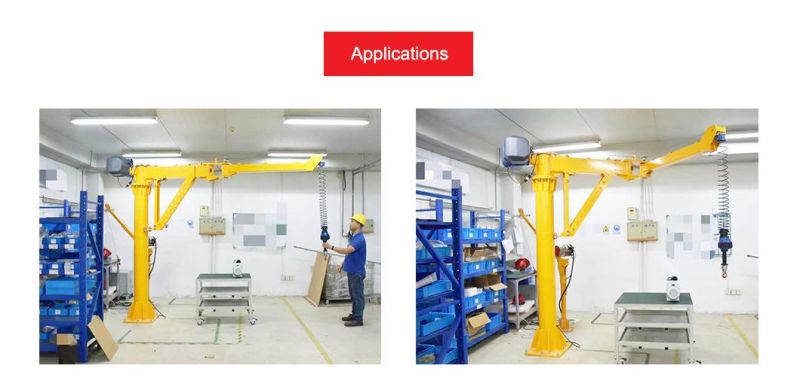

  • Application：Workshop, Warehouse, Construction Site
  • Anchor：Whole-Buried

Base Info

  • Model NO.：NBZ-C
  • Structure：Solid Web
  • Material：Steel
  • Type：Cantilever
  • Load Capacity：up to 500kg
  • Turning Radius：up to 4 Meters
  • Height of Lift：up to 3 Meters
  • Control：Hand Grip,Radio Remote
  • Power Supply：220~480V, 50~60Hz, 3phase
  • Hoisting Speed：up to 40 M,Min
  • Rotate Speed (Main Arm)：Manual
  • Rotate Speed (Aux Arm)：Manual
  • Applications：Warehouse, Workstation, Machining Shop
  • Lead Time：Within 30 Days
  • Lifting Device Options：Intelligent Lifting Device,Air Balancer
  • Random Files：Operation & Maintenance Manual, Wiring Diagram
  • Spare Parts：Provide Random Spares for Two Year Maintenance
  • Transport Package：Wooden Case, Waterproof Film
  • Specification：360 Degree Rotate(main arm),270 Degree(Aux arm)
  • Trademark：Nucleon Crane
  • Origin：Henan, China

Description

Basic Info.

Model NO. NBZ-C Structure Solid Web Material Steel Type Cantilever Load Capacity up to 500kg Turning Radius up to 4 Meters Height of Lift up to 3 Meters Control Hand Grip/Radio Remote Power Supply 220~480V, 50~60Hz, 3phase Hoisting Speed up to 40 M/Min Rotate Speed (Main Arm) Manual Rotate Speed (Aux Arm) Manual Applications Warehouse, Workstation, Machining Shop Lead Time Within 30 Days Lifting Device Options Intelligent Lifting Device/Air Balancer Random Files Operation & Maintenance Manual, Wiring Diagram Spare Parts Provide Random Spares for Two Year Maintenance Transport Package Wooden Case, Waterproof Film Specification 360 Degree Rotate(main arm)/270 Degree(Aux arm) Trademark Nucleon Crane Origin Henan, China

Product Description

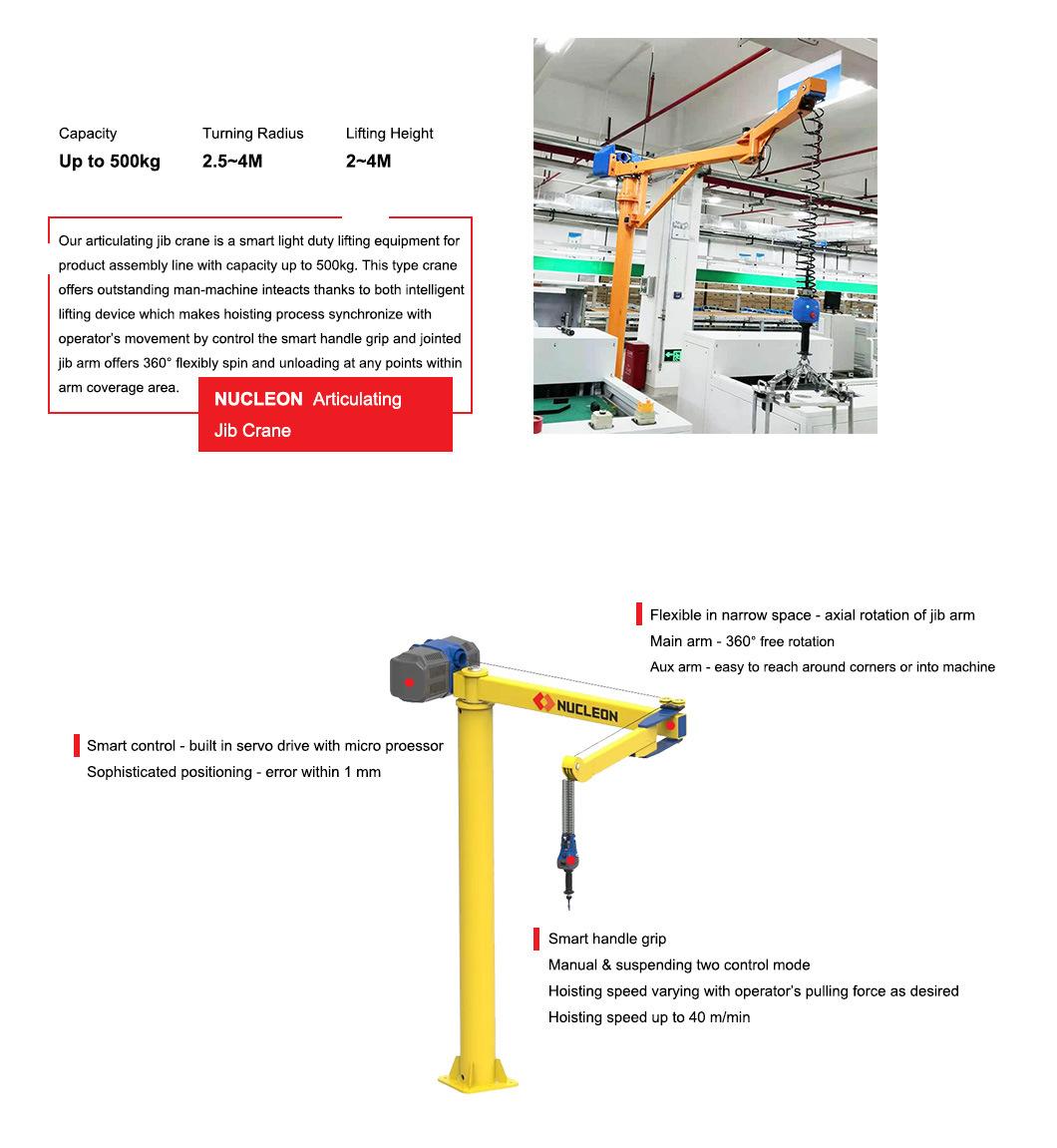

Nucleon 100~500kg Pillar Stand Articulating Arm Jib Crane Pneumatic Crane
Nucleon 100~500kg Pillar Stand Articulating Arm Jib Crane Pneumatic CraneSpecifications

Item100kg200kg300kg500kg
Turning Radius2.5~4m2.5~4m2.5~3.5m2.5~3.5m
Lifting Height2~4m2m2~4m2m
Lifting Speed (hand grip mode)40m/min30m/min15m/min7.5m/mmin
Lifting Speed (Floating mode)36m/min27m/min13.5m/min6.75m/min
Turning MethodManualManualManualManual


Customer Service

1. Installation service of overhead crane available with:
    Video tutorial support for whole installation process.
    7/24 remote assistance for crane installation guidance and commissioning.

2. Twelve months warranty after successful crane commissioning.
