• Model NO.：Crawler Crane
• Transport Package：Roro Ship
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705109100
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. Crawler Crane Transport Package Roro Ship Specification CE Trademark Super-above Origin Jiangsu, China HS Code 8705109100 Production Capacity 1000PCS/Year

Product Description

crawler crane XGC130 130 ton crawler crane for sale .

This crawler crane can be used for farmland construction and water conservancy construction, petrochemical & power engineering, iron and steel, non-ferrous metals, coal and other resource exploration and construction, building construction, municipal construction, port construction and other fields.

Inheriting the advantages from the old product, XGC130 crawler crane pays more attention to the improvement of lifting performance, assembly/disassembly and transport convenience and operation comfort. The system is mature and reliable with complete safety devices. Fitted with advanced technologies including complete assembly and disassembly function, integration transport and etc, the crane's performance is superior to that with other domestic brands in various aspects.

During the initial development period of XGC130 crawler crane, an overall market research is conducted, based on the original three basic working conditions (boom working condition, fixed jib working condition, boom single top working condition), two new working conditions of main hook working condition with fixed jib and fixed jib working condition with main hook are added, hook free fall function is also optionally configured for the hoist mechanism, so as to meet different requirements of the customers.

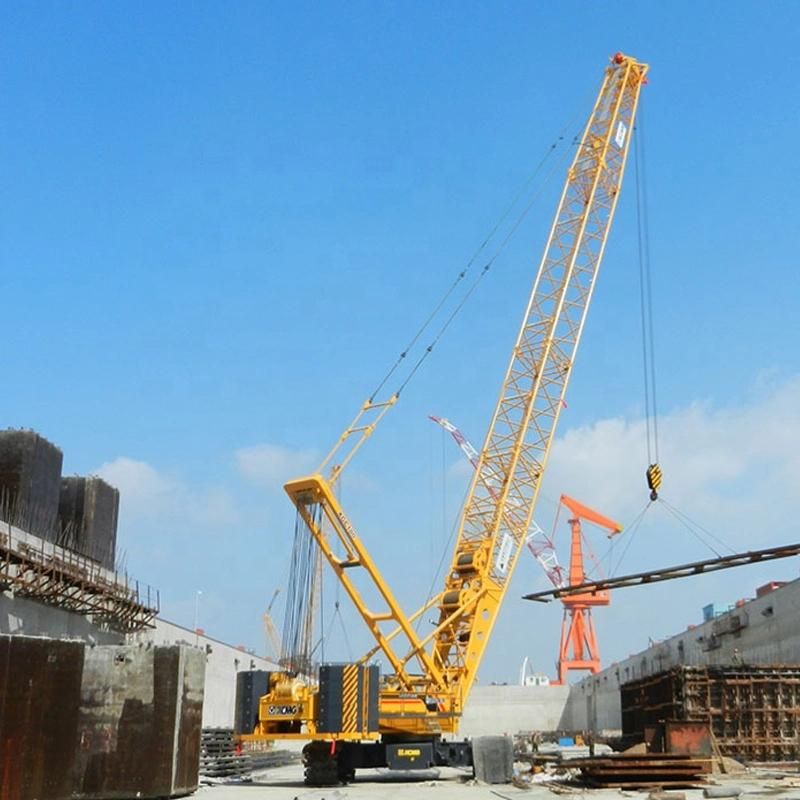

130ton Mobile hydraulic crawler crane

TECHINICAL PARAMETERS

Item	Unit	Parameter
Max. rated lifting capacity for boom	(t)	130
Max. rated lifting capacity for fixed jib	(t)	18.2
Max. load moment	(t.m)	702
Max. rated lifting capacity for boom single top	(t)	13
Boom length	(m)	19~76
Boom luffing angle	(°)	30~83
Fixed jib length	(m)	13~25
Max. dimension of single unit in transport state(L×W×H)	(m)	10.6×3×3.35
Fixed jib offset angle	(°)	15,30
Max. single line speed for hoist mechanism	(m/min)	110
Max. single line speed for boom luffing mechanism	(m/min)	75.6/62.6
Max. slewing speed	(r/min)	1.3
Max. travel speed	(km/h)	1.4
Grade ability	(%)	30
Mean ground pressure	(MPa)	0.094
Engine Model	-	SC9DK270G3/QSC
Engine power	(kW)	200/183
Emission	-	National III/EU III
