5 Ton Knuckle Boom Crane for Trucks Sq5za2

XUZHOU BOB-LIFT CONSTRUCTION MACHINERY CO., LTD.
  • After-sales Service：Yes
  • Warranty：1year
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：10-15m
  • Maximum Lifting Weight：5-7t

Base Info

  • Model NO.：SQ5ZA2
  • Shaft Number：2
  • Crane Jib：Three-Arm
  • Type：Folding
  • Color：According Customer Requirement
  • Painting：Galvanized, Anti Oxidation
  • Materials：Hq60, Hq70, Q345
  • Boom Type：Telescopic Boom
  • Max Working Radius：9.06m
  • The Min Capacity：1,060kg
  • Installation Space：850mm
  • Self Weight：2,050kg
  • Rotation Angle：360
  • Product Name：Price Hydraulic Knuckle Boom 5 Ton Crane for Sales
  • Transport Package：Wooden Cases
  • Specification：2320*851*2230
  • Trademark：BOB-LIFT
  • Origin：Xuzhou, China
  • HS Code：8426910000
  • Production Capacity：100 Sets,Month

Description

SQ5ZA2 Max Lifting Capacity Ton 5 Max Lifting Moment Ton.m 10.5 Recommend Power KW 22 Hydraulic System Flow L/min 35 Hydraulic System Pressure MPa 20 Oil Tank Capacity L 100 Installation Space mm 1050 Rotation Angle ° 400

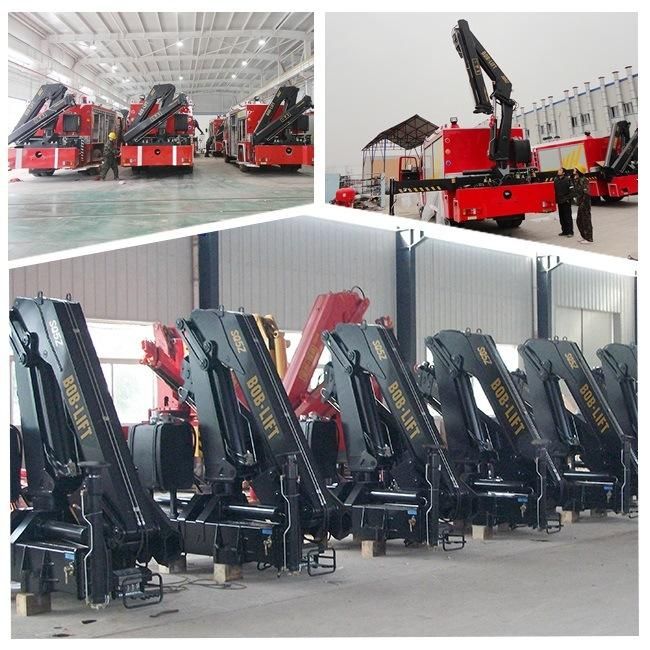

PRODUCT PICTURES
5 Ton Knuckle Boom Crane for Trucks Sq5za2

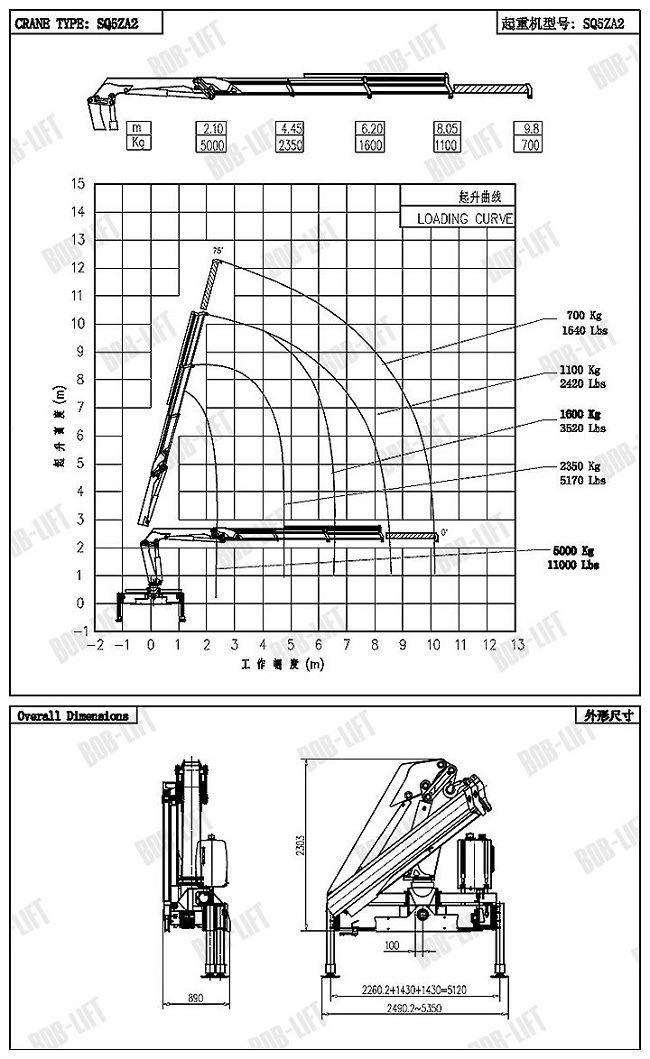

TECHNICAL DATA
5 Ton Knuckle Boom Crane for Trucks Sq5za2



PACKING DETAILS
5 Ton Knuckle Boom Crane for Trucks Sq5za2
CERTIFICATE
5 Ton Knuckle Boom Crane for Trucks Sq5za2
FAQ

1. Factory History?

16 Years production, 10 years export experience.

2. Steel material manufacturer?
Shanghai Baosteel

3. Type of the boom?
Hydraulic boom+jib/manual boom(optional attachment)

4. How to finish the preshipment inspection?
Factory Inspection, video provided

5. Optional Attachments

Remote Control, Moment Limited Valve, Top Seat, Work Basket, Assistant Stabilizer leg...

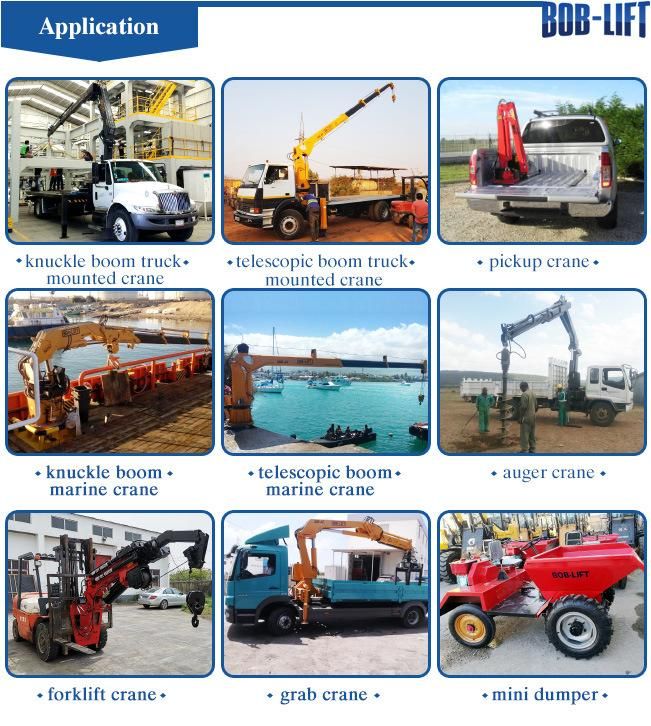

Crane Application

  1. Knuckle & Telescopic Boom Truck Mounted Crane
  2. Marine Crane
  3. Timber Crane
  4. Auger Crane
  5. Pickup Crane
  6. Forklift Crane
  7. Basket Crane
  8. Aerial Work Platform
