• Model NO.：Qtz160(6516)
• Moving Type：Fixed
• Type：Top-Slewing Crane
• Color：Customized Color
• Power Source：Electric
• Tip Load：1.6t
• Independent Hoisting Height：50m
• Lifting Arm Length：65m
• Sling Type Wire：Rope
• Usage：Building Construction
• Slewing Speed：0.7r,Min
• Power Supply：380V or on Request
• Attached Hoisting Height：200m
• Control Method：Remote Control or Cabin
• Transport Package：Packing in 40hc Container
• Specification：1.8× 1.8× 2.5m
• Trademark：Mingdao
• Origin：China
• HS Code：84260000
• Production Capacity：15 Sets,Month

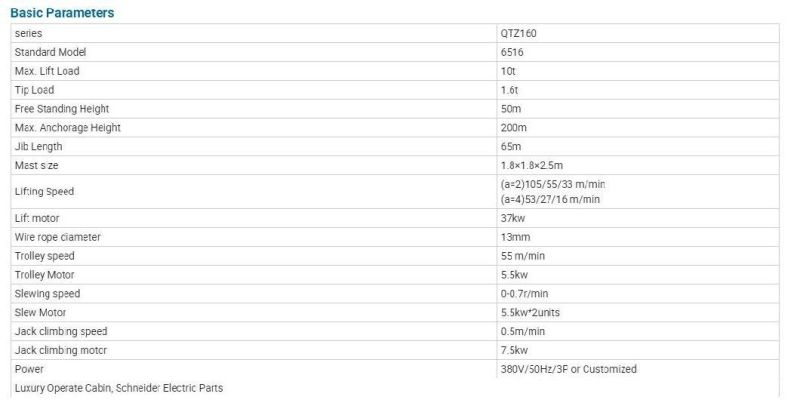

Basic Info.

Model NO. Qtz160(6516) Moving Type Fixed Type Top-Slewing Crane Color Customized Color Power Source Electric Tip Load 1.6t Independent Hoisting Height 50m Lifting Arm Length 65m Sling Type Wire Rope Usage Building Construction Slewing Speed 0.7r/Min Power Supply 380V or on Request Attached Hoisting Height 200m Control Method Remote Control or Cabin Transport Package Packing in 40hc Container Specification 1.8× 1.8× 2.5m Trademark Mingdao Origin China HS Code 84260000 Production Capacity 15 Sets/Month

Product Description

Brief Introduction

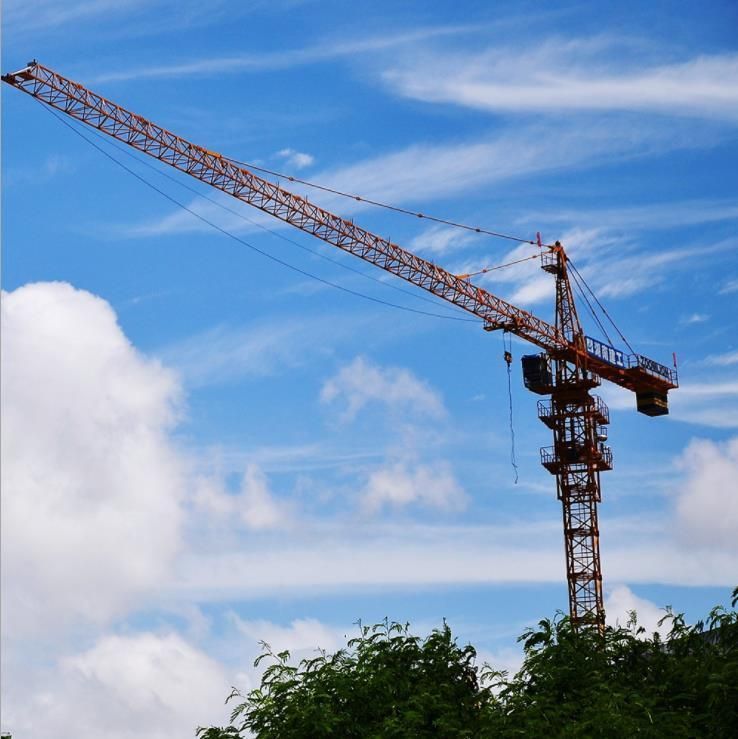

Flattop tower cranes are generally used on construction sites or bridge construction sites. The position of the hooks can be controlled by the boom swing and the distance of the trolley, and the objects can be lifted at the turning radius. Compared with the tower crane with tower head and tie rod, the mechanical model of the boom is simple and clear. Because there is no tower head, the installation height is low, making installation quicker and safer. Suitable for large building needs.

The flattop tower crane is a new type of tower crane developed in recent years. It is characterized in that the tower tip and its front and rear tie rods are eliminated from the structure of the original jack-up tower crane, and the structural strength of the big arm and balance arm is enhanced. The big arm and the balance arm are directly connected, and the advantages are as follows:
1.The whole machine is small in size, convenient and safe to install, and reduces transportation and storage costs;
2.The boom has good tolerance, uniform force and small damage to the structure and connecting parts;
3.component design can be standardized, modular, interchangeable, reduce equipment idle, improve investment efficiency.

Feature of tower crane
1.Suitable for all kinds of construction project and can work under all kinds of work condition.
 2.It has high working speed, good speed-adjusting performance, steady operation and high  efficiency.
 3.The crane has complete set of safety devices, which can guarantee the safe and high efficient  operation of the equipment.
 4.Three-speed motor and mono-speed ratio decelerator are applied in the lifting structure, which  enables heavy load low speed and light load high speed.
 5.Planet gear decelerator is applied in the circumcise rating structure, together with moment-limiting  hydraulic couple, which can realize high load capacity, steady starting and reliable operation.

Advantage of Tower Crane
1.Robot automatic welding system;
2.Automatic impeller blasting and spraying assembly line;
3.CNC plasma cutting machine;
4.Precision machine tools;
5. France Schneider contactor;
6.Jiangte motor;
7.Equipped with complete set of safety devices
Safety features
Full set of safety protection equipment:weight limit,moment limit,height limit, and slewing limit,emergency brake, labor protective devices like rest platform and guardrail.
1.Weight limit: If the material is over the capacity, the crane will give a sharp warning for   protection itself.
2.Moment limiter:Real-time monitoring and detection of crane working conditions, with its own diagnostic function, rapid dangerous status alarm and safety control.
3.Height limit:Control the lowest and highest extreme position of lifting hook.
4.Slewing limit: Control the extreme turns number of turn left and right.
5.Emergency brake: If the operation staff  encounter some emergency situation, we could start the emergency brake system to protection the related treasure.

Control mechanism
Hoisting mechanism is driven by three-speed electromotor with high working speed and good speed-adjusting capability and high efficiency; Derrick mechanism using worm-wheel reducer can meet operating needs. Slewing mechanism that is driven by two-speed electromotor; Make operation more stable and reliable.

Our services
1.We can design the customerized tower crane as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Operational video can be sent to you if needed.
5.The seller can send professional technicians to the site of buyer to  guide the erecting work.
6.12(twelve)months (except for wire rope and AC contactor) after the equipment be well erected and we will offer spare parts whole year long.
7.Lifelong time freely provide technical support .

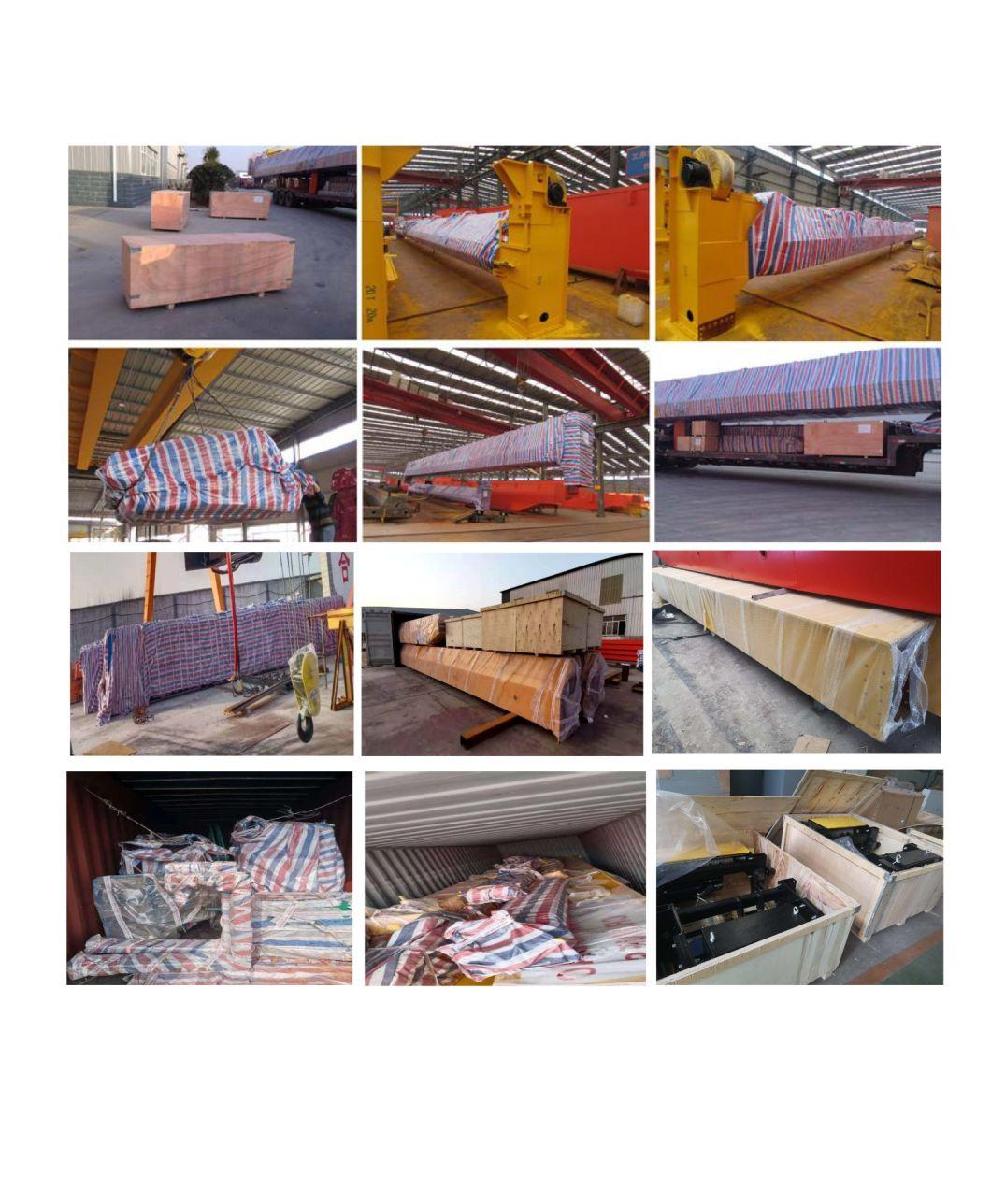

Packing&Delivery
Packing in 40HC container.
Steel structure naked or packed by bubble.
Electric part and easily demand parts packed by high quality plywood box
