55 Ton Small Hydraulic Crawler Crane (ZCC550H-1)

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service:1 Year
  • Max. Lifting Height:52m
  • Rated Loading Capacity:55 Ton
  • Certification:ISO9001, CE, RoHS, BV
  • Condition:New
  • Warranty:1 Year

Base Info

  • Model NO.:ZCC550H-1
  • Main Boom Length:13-52m
  • Fixed Jib Length:6-15m
  • Crane Counterweight:17.5t
  • Transport Package:Nude
  • Specification:CE, RoHS, SGS, GMP
  • Origin:Hunan China
  • HS Code:84295100
  • Production Capacity:50, 000 PCS,Year.

Description

ItemUnitValueRemarksMax. lifting capacity ×    radiust × m55×3.7 Max. lifting capacity on    fixed jibt5.5 Max. lifting capacity of    luffing jibt12 Main boom lengthm13 - 52 Fixed jib lengthm6 - 15 Max. length of main boom    with fixed jibt43+15 Luffing jib lengthm16m-28m Max. main boom +max.    luffing jibm40mm+28mm Derricking angle.30 - 80 Fixed jib angle.10,30 Max. rope  speed
     of winchesHoisting winch 1m/min125/100With optional free-fall functionHoisting winch 2125 Derricking winch80 Slewing speedrpm

0-2.1

 Traveling speedkm/h0-1.6 Max. gradeability%30With basic boom and    counterweight over frontGround pressureMpa0.068 Deadweightt50.5With basic boomCrane counterweightt17.5 Overall dimensions(L × W    × H)m12800×4600(3300)×3120With A-frame and main    boom pivot sectionEngineModel WP6G190E26Manufacturer:Weichai Power CO, Ltd.Rated power / rotational    speedkW/r/min140/1900Max. output torque /rotational    speedNm/r/min830/1300Exhaust emission National StageIIDistance between track    center × crawler contact length × crawler widthmm2540 ×5000×760Crawler carrier    retracted3840 ×5000×760Crawler carrier    extended NoiseNoise level outside    operator's cab during operation(dB)≤107 Noise level in    operator's cab during operation≤85
Pictures

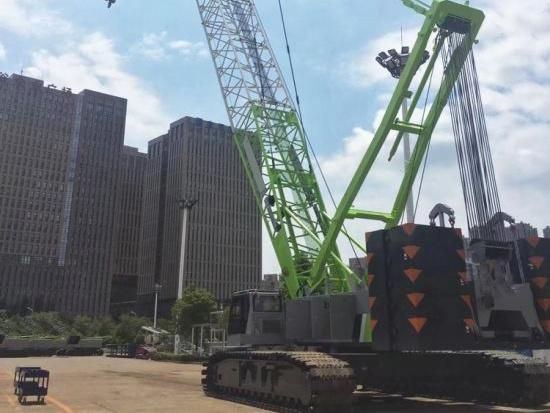

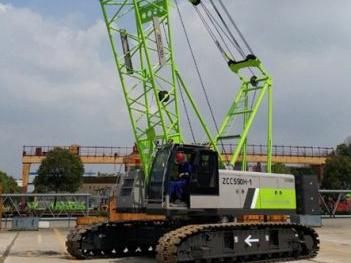

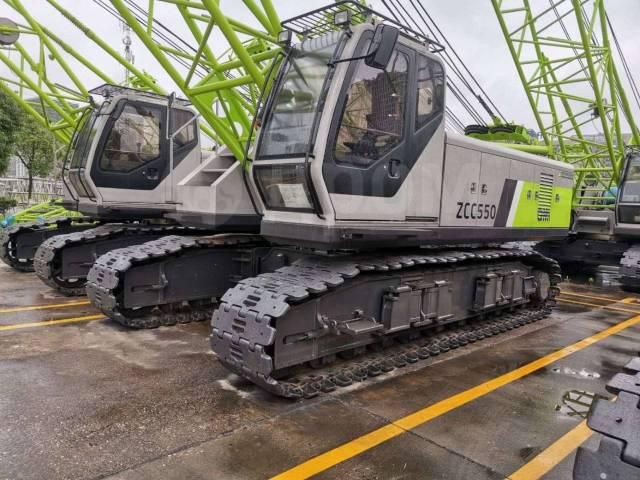

55 Ton Small Hydraulic Crawler Crane (ZCC550H-1)55 Ton Small Hydraulic Crawler Crane (ZCC550H-1)55 Ton Small Hydraulic Crawler Crane (ZCC550H-1)
