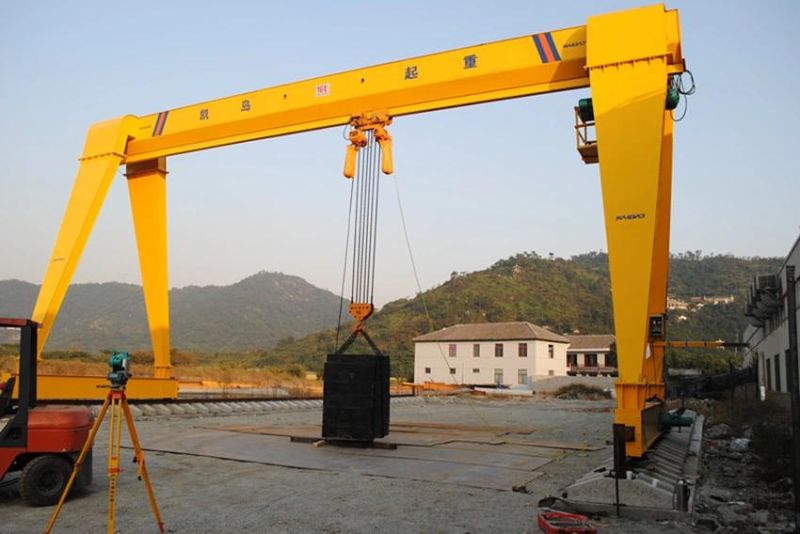

5t-100t Model Mg Single-Girder Overhead Gantry Crane

Zhejiang Kaidao Hoisting Machinery Co., Ltd.
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Weight：5t-100t
  • Maximum Lifting Height：25-30m
  • Operation Form：Remote Control
  • Type：Common Gantry Crane

Base Info

  • Model NO.：Model Mg Single-Girder Overhead Gantry Crane
  • Main Girder Form：Single Girder
  • Color：Yellow
  • Span：10.5m-31.5m
  • Frequence：50,60Hz,S
  • Voltage：220V-480V
  • Application：Construction Usage, Workshop Usage
  • Tower Crane Type：Under Slewing Cranes
  • Sling Type：Chain
  • Power Source：Electric
  • Moving Type：Wheel
  • Installation：Assembled
  • Transport Package：Plywood Cases
  • Specification：The first clss in china
  • Trademark：ELK
  • Origin：China
  • HS Code：8426199000
  • Production Capacity：200sets,Month

Description

Lifting  capacity(t)1, 2, 3, 5, 10, 16, 20Span  (m)7.5-22.5Mechanism      travellingSpeed  (m/min)10  , 20,   3045,   60MotorTypeZDY21-4ZDR12-4Power(kw)2*0.82*1.5Speed  (r/min)13801380Electric  HoistModelCD1/MD1Lifting  height6, 9, 12, 18, 24, 30Lifting  speed8(7); 8/0.8(7/0.7)Traversing  speed20, 30Work  ClassificationA3-A5Power  supply(v, Hz)380V  ;   50HzDia  of  wheel(mm)Ø 300recom  mended  railP18  , P22, P24, P30
