Xct100 Xct100_M 100ton Telescopic Truck Crane
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service:Spare Parts
- Warranty:1 Year
- Certification:GS, CE, ISO9001
- Condition:New
- Maximum Lifting Height:79m
- Maximum Lifting Weight:100ton
Base Info
- Model NO.:XCT100_M
- Shaft Number:3
- Crane Jib:Five-Arm
- Type:Telescopic Boom
- Overall Dimensions:15295×3000×3820mm
- Front Axle Load:10000kg
- Rated Power:316kw
- Rated Torque:2060n.M,Rpm
- Engine:Wp12.430e40,ISM11e4 440
- Max.Traveling Speed:80km,H
- Max. Load Moment Base Boom:4380kn.M
- Max.Gradeability:45%
- Luffing Time of The Main Boom:60s
- Base Boom Length:13.1m
- Full-Extend Boom+Jib Length:61m
- Min. Working Radius:4.5m
- Transport Package:Nude Package
- Specification:55000kg
- Trademark:CRUKING
- Origin:China
- HS Code:8705109100
- Production Capacity:500sets,Year
Description
XCT100 truck crane is a product with high reliability inheriting classical and advanced technology for designing and manufacturing truck cranes of many years and based on mature technology. Special truck crane chassis designed and manufactured by our company, all covered working surface and classic appearance outline is equipped. The operations of cranes are very simple, convenient and flexible. It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
Main Specification≤88

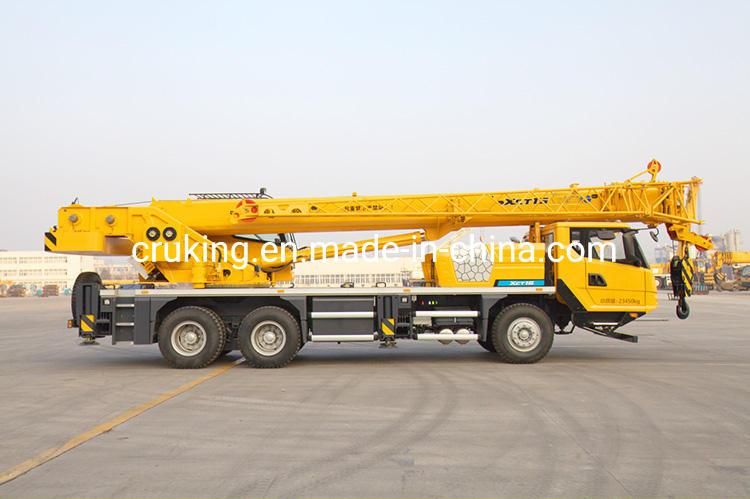

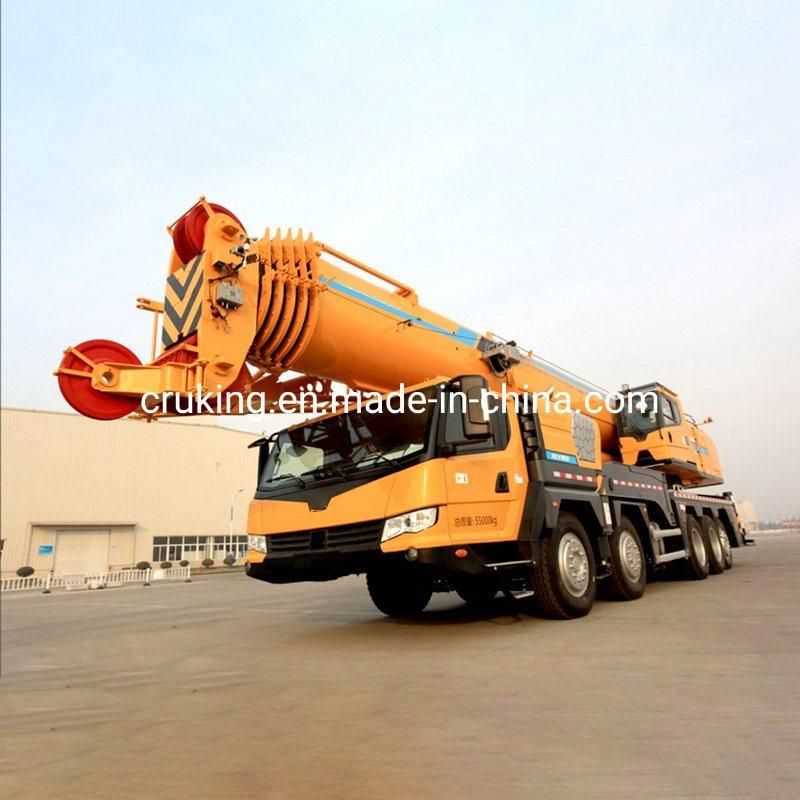

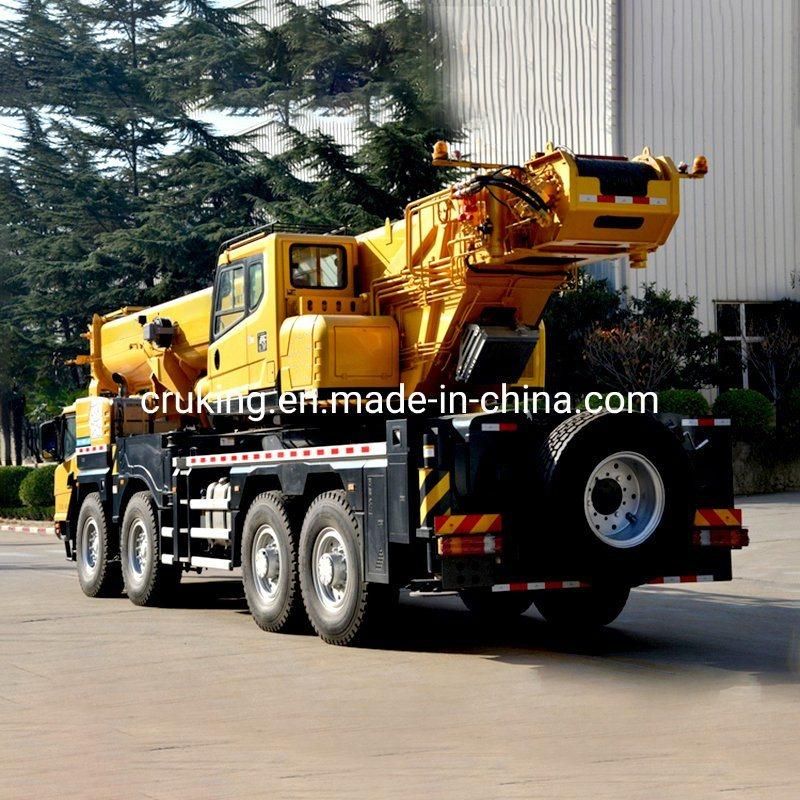

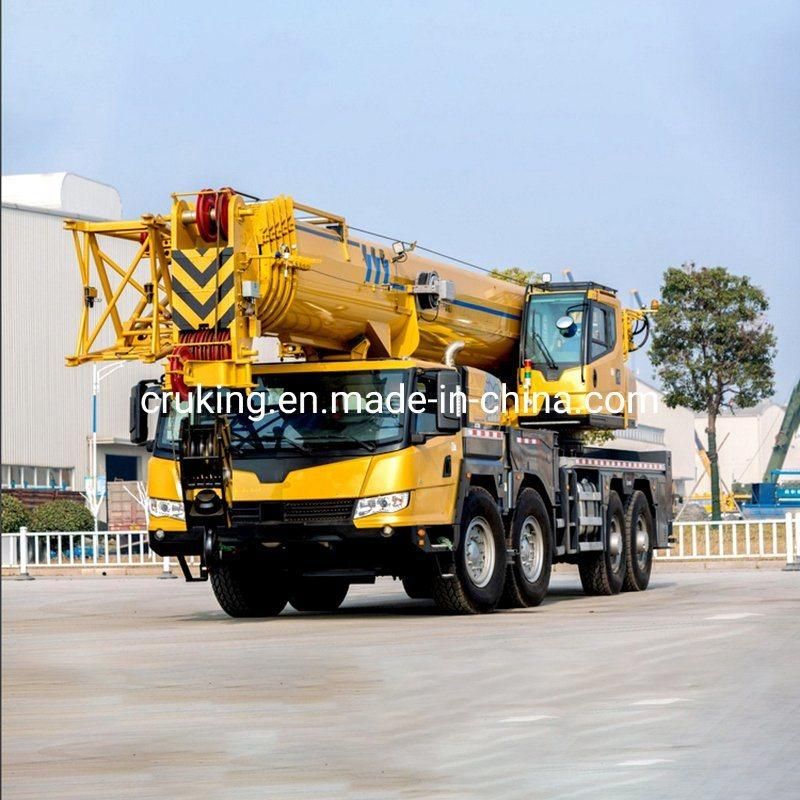

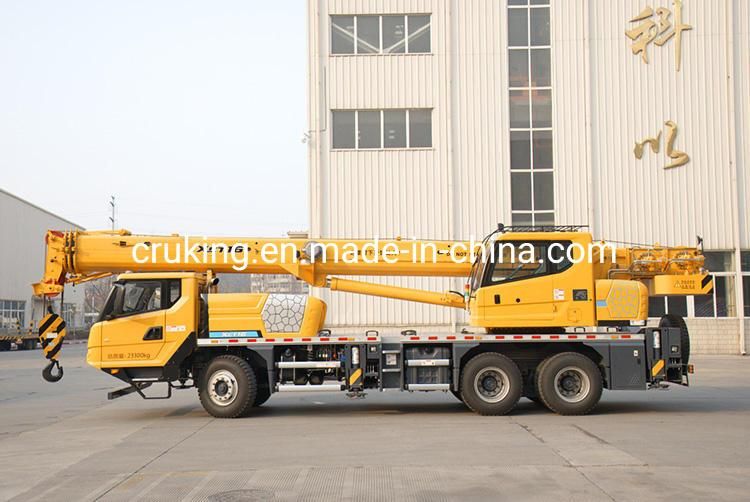

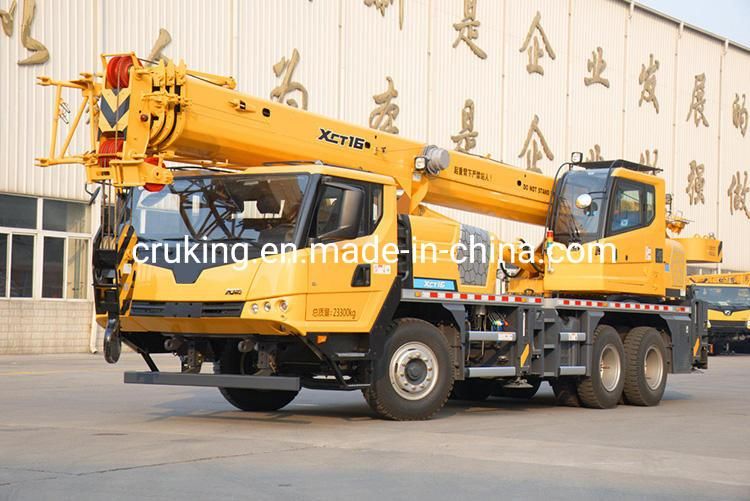

Photos
