• Model NO.：SQS250
• Type：Straight Arm
• Power：18 Kw
• Rated Lifting Moment：12.5 T.M
• Installation Space：1000 mm
• Rated Loading Capacity：8ton
• Transport Package：Comply with Export Packaging Requirements
• Specification：7990*2496*3311 mm
• Trademark：Newindu
• Origin：Jiangsu, China (Mainland)
• HS Code：84295100
• Production Capacity：500 Sets,Month

Item

Parameters

Unit

Capacity

Max. lifting capacity

10

t

Dimensions

Overall length

7990

mm

Overall width

2496

mm

Overall height

3311

mm

Axles

2

Axle distance-1,2

4600

mm

Axle distance-2,3

--

mm

Weight

Overall weight

20000

kg

Front axle load

7000

kg

Rear axle load

13000

kg

Engine

Model

D10.28-40

Rated power

204

kW

Rated torque

1190

Nm

Emissions

EURO IV

Traveling

Max. traveling speed

102

km/h

Approach angle

16

°

Departure angle

26

°

Max. gradeability

30

%

Main Performance

Rated lifting moment

75.0

kN.m

Max.outreach

9.6

m

Slewing torque

9.0(0.9)

kN.m(mt)

Slewing angle(continuous)

400

°

Operating pressure

31.5(315)

Mpa(bar)

Pump capacity

25-35

l/min

Air conditioner

HVAC in low cab

Cooling / Heating

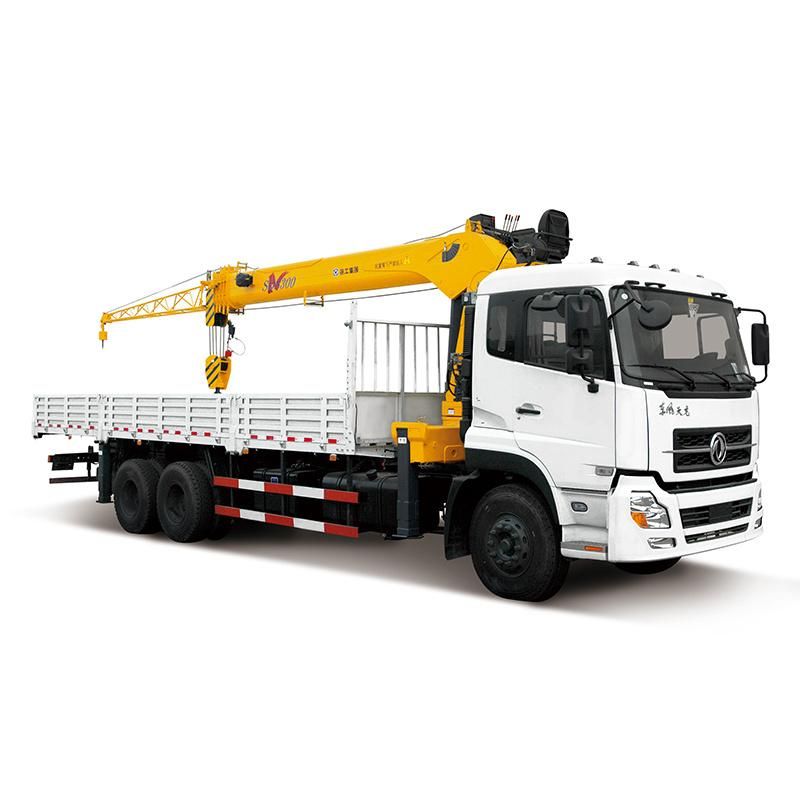

Photos for Reference
