Zoomlion 80ton Heavy Duty Mobile Truck Crane for Sale (ZTC800E)
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：ZTC800E552
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Folding
- Max. Driving Speed：80km,H
- Max. Gradeability：40%
- Min. Ground Clearance：310mm
- Transport Package：Roro,Container,Nude
- Specification：50000kg
- Trademark：Zoomlion
- Origin：China
- HS Code：8705109100
- Production Capacity：50units,Month
Description
Overview
Product Description

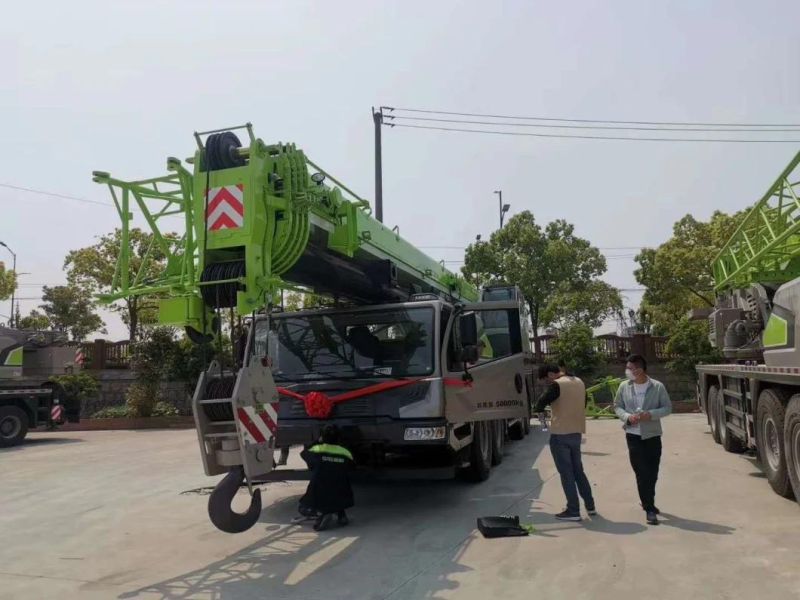

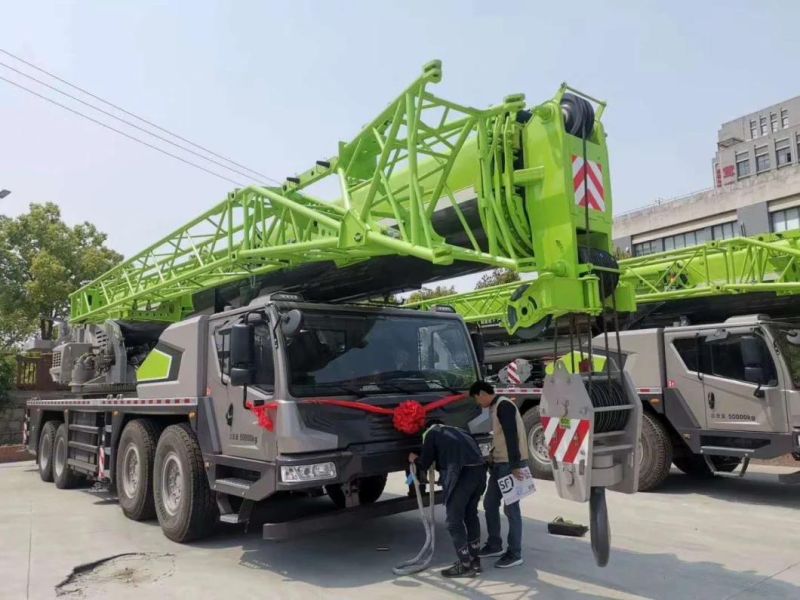

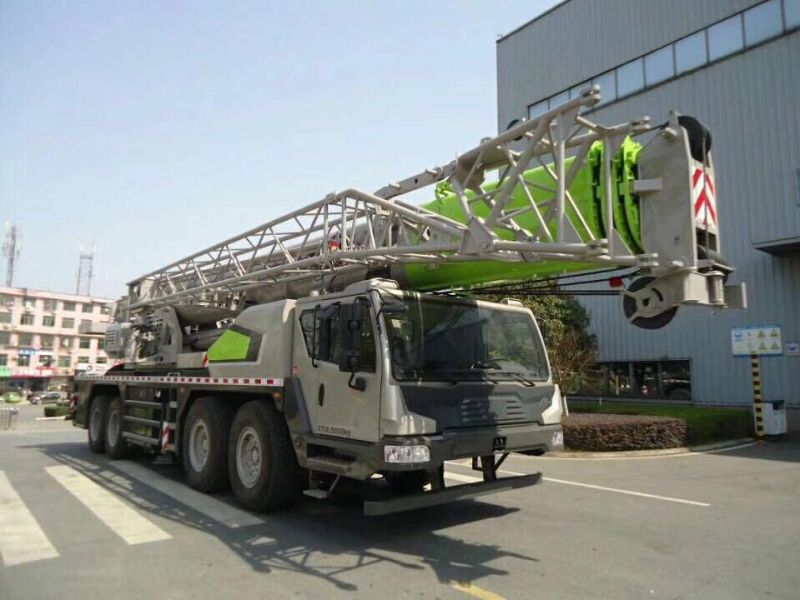

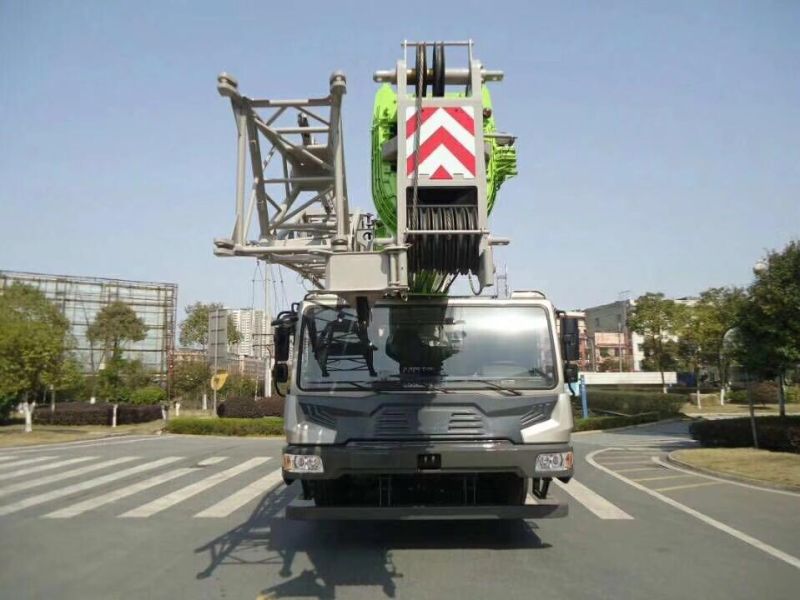

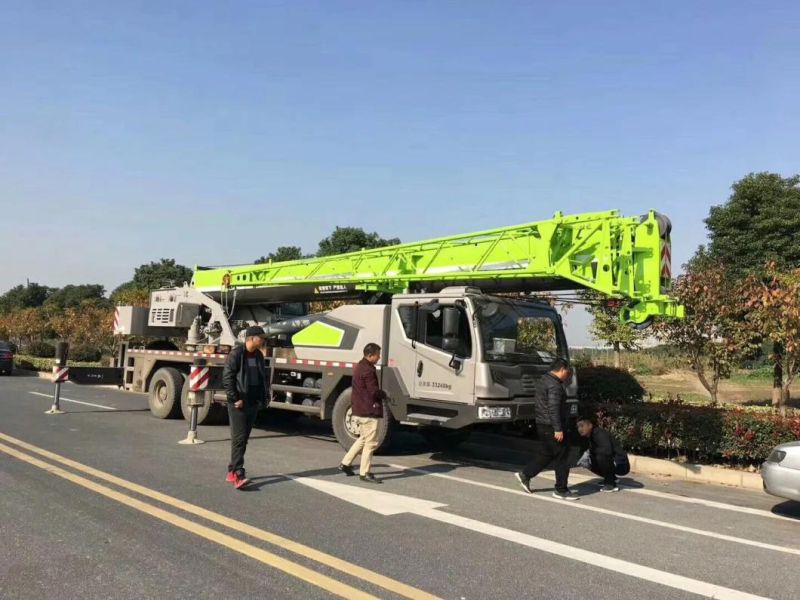

Product Parameters ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg80000 Max. load moment of basic boomkN.m2646 Max. load moment of main boom(fully extended)kN.m1288 Max. lifting height of main boomm47.7These parameters do not include deflection of main boom and jibMax. lifting height of jibm63.8Working speeds Max. hoist rope speed(Main winch)m/min125At 4th layerMax. hoist rope speed(Auxiliary winch)m/min110At 2nd layerBoom demrricking up times55 Boom telescoping out times120 Slewing speedr/min1.7 Driving parametersMax. driving speedkm/h85 Max. gradeability%46 Min. Turning diametermDetailed Photos
