Liugong Tc250A4 Small Hydraulic 25 Ton 4 Sections Truck Crane
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：TC250A4
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Max. Single Rope Speed：130 M,Min
- Transport Package：Roro,Nude Packing by Container,Bulk
- Specification：30400 KG
- Trademark：LIUGONG
- Origin：China
- HS Code：84295100
- Production Capacity：100 Units, Month
Description
Product DescriptionMax. rated lifting capacity 25 t Max. rated lifting torque of basic boom 1083 kN·m Max. rated lifting torque of full extended 592 kN·m Max. lifting height of main boom 34 m Max. lifting height of Jib 34+8.7 m Overall net weight 30400 kg Max. single rope speed 130 m/min Time of telescoping boom 55 s Time of elevating boom 45(35) Max. slewing speed 2.4 rpm Max. travel speed 80 km/h Gradeability 0.4 Min. turning diameter 20 m Dimensions (L x W x H) 12850x2490x3460 mm Outrigger longitudinal span 5600 mm Outrigger transverse span 6200 mm Sections of boom 4 Length of main boom 34 m Length of jib 8.8 m Engine Model ISDe 285 30 Rated power 210 kW Max. rated torque 970 N·m

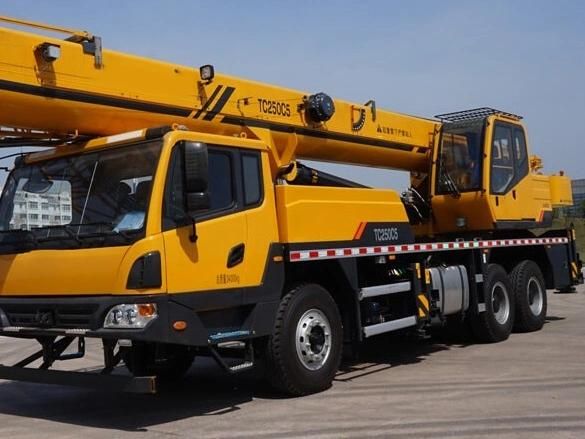

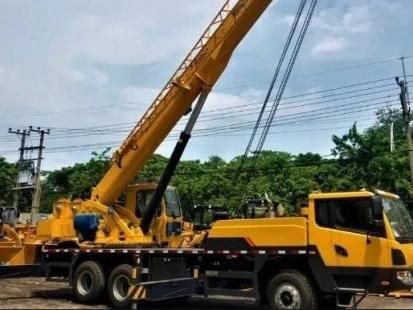

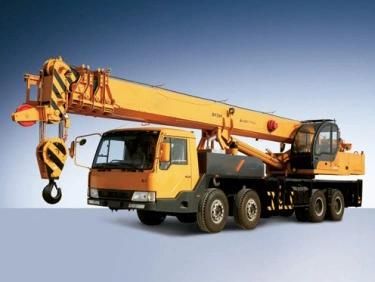

- Product Pictures
