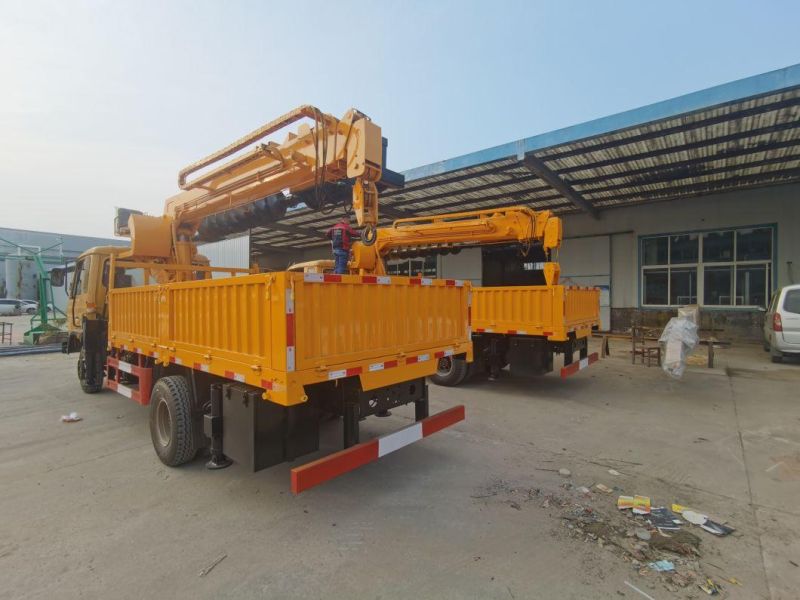

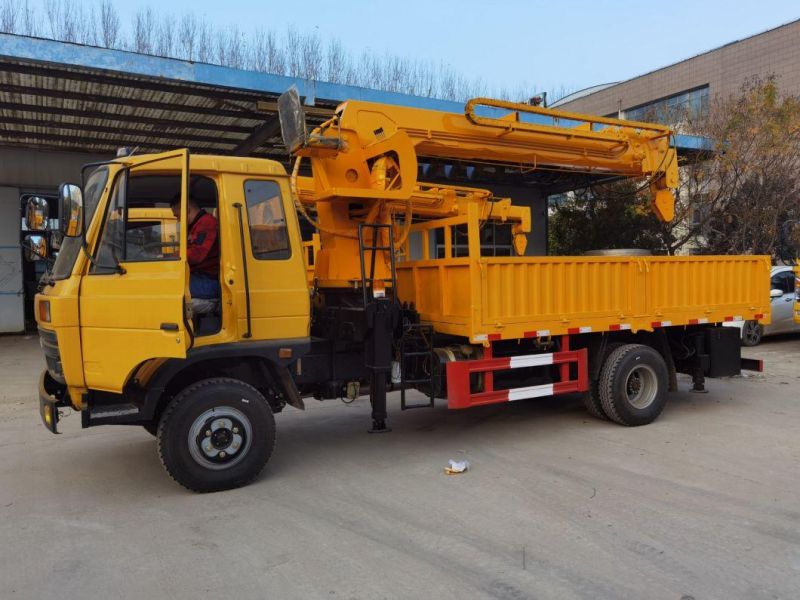

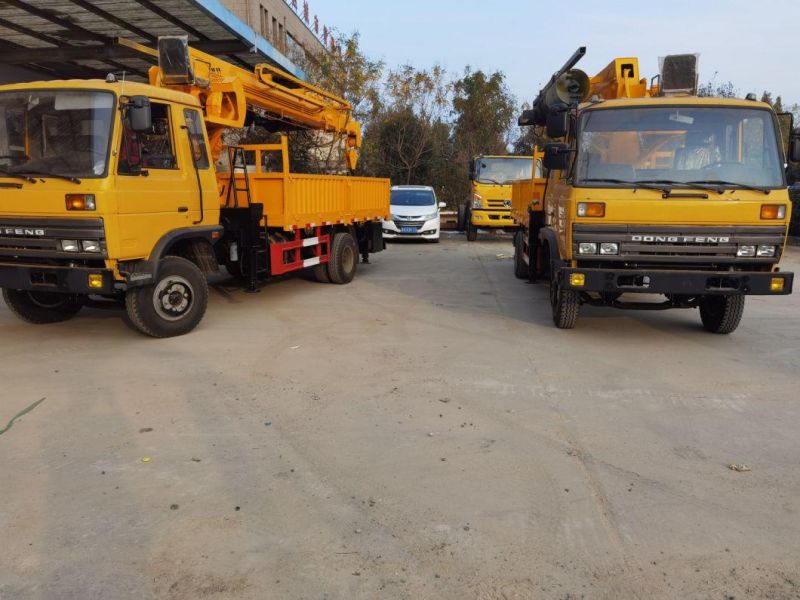

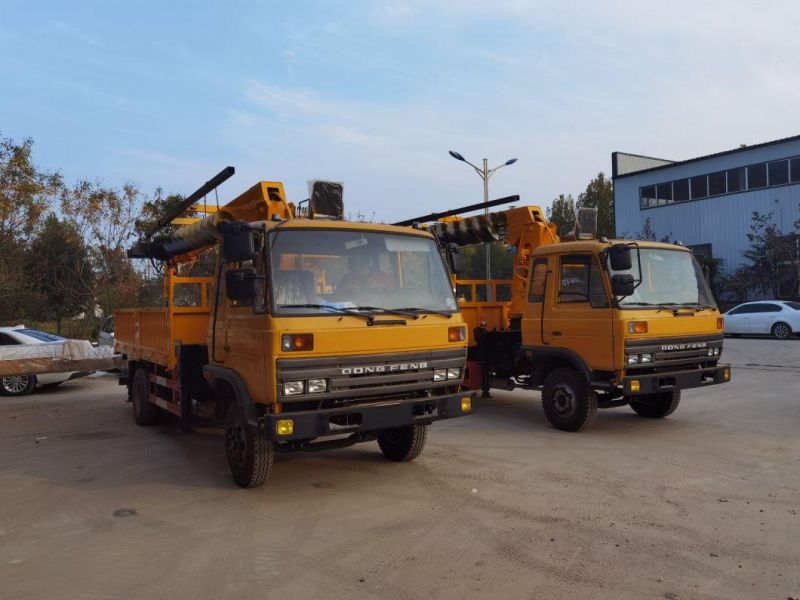

High Quality 5ton Truck Mounted Crane with 5m Augur Rig
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：10-15m
- Maximum Lifting Weight：5-7t
Base Info
- Model NO.：5ton
- Shaft Number：4
- Crane Jib：Four-Arm
- Type：Folding
- Hydraulic Crane Weight：3200kg
- Transport Package：Nude
- Specification：5800* 3000*1600mm
- Trademark：SINOMADA
- Origin：China
- HS Code：8429521200
- Production Capacity：500,Month
Description
Crane
Capability
Parameter
Max lifting quality
Kg
5000
Max lifting movement
T.m
12.5
Max working range
m
11
Max lifting height
m
13
Span of supportive legs
m
2.28-4.7
Oil tank capacity
L
130
Slewing angle
°
360
Rated hydraulic pressure
MPa
20
Recommended hydraulic flow
L/min
40
Hydraulic Crane weight
kg
3200
