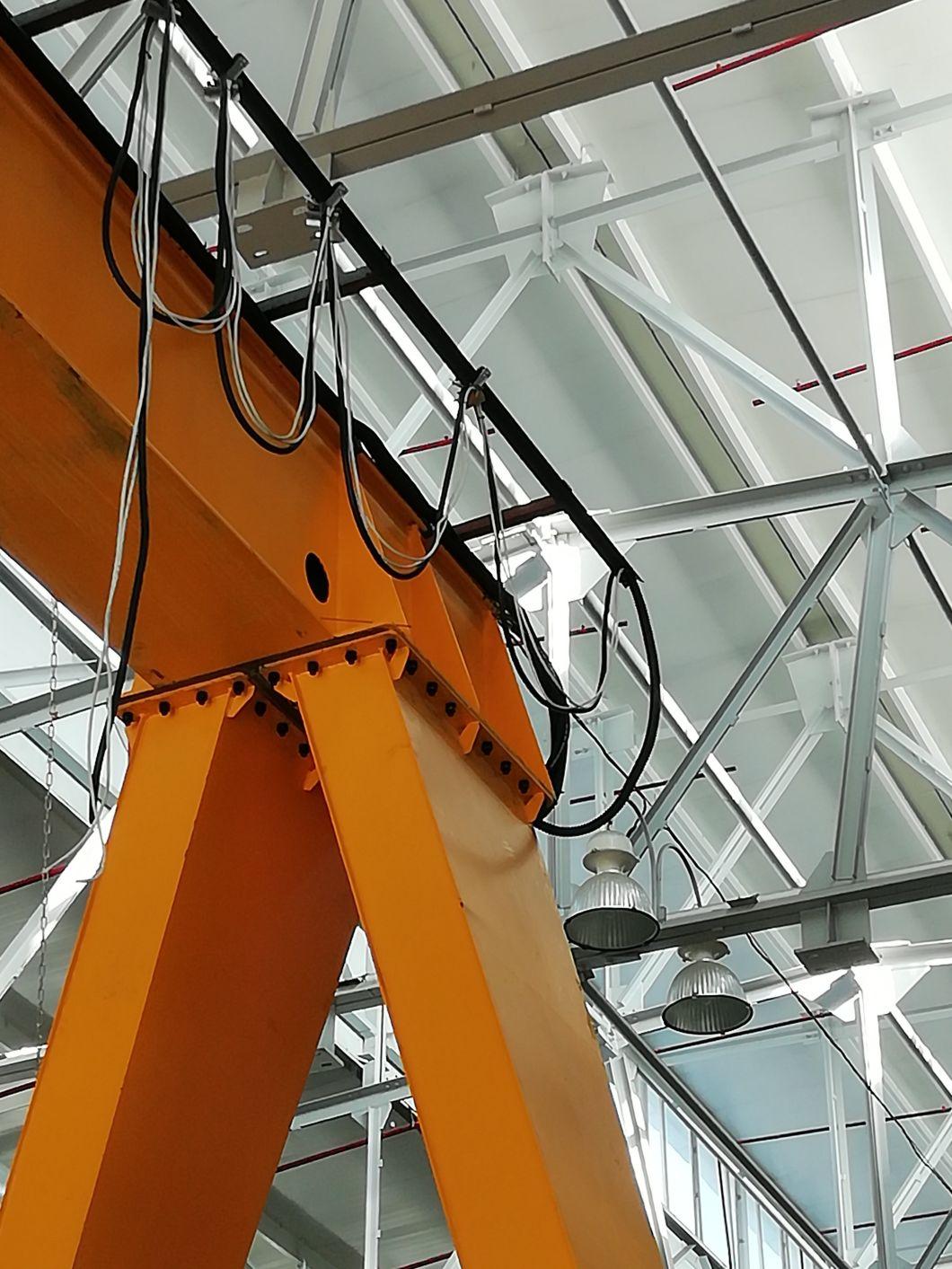

20ton F Insulation Class China Cheap Single Girder Gantry Crane Price Manufacture
HENAN ETERNALWIN MACHINERY EQUIPMENT CO., LTD.- Warranty：2 Years
- Certification：CE, ISO9001
Base Info
- Condition：New
- Maximum Lifting Weight：0-50t
- Maximum Lifting Height：10-15m
- Operation Form：Air Operation+Ground Operation
- Type：Common Gantry Crane
- Main Girder Form：Single Girder
- Capacity：20t
- Span：Customized
- Lifting Height：Customized
- Working Duty：Heavy Duty
- Lifting Mechanism：Electric Hoist
- After-Sales Service Provided：Field Installation, Commissioning and Training
- Applicable Industries：Construction and Warehouse
- Transport Package：Sea Worthy and Wooden Box
- Specification：20ton
- Trademark：eternalwin
- Origin：China
- HS Code：8426193000
- Production Capacity：50 Sets Per Month
- Package size per unit product：1.00cm * 1.00cm * 1.00cm
- Gross weight per unit product：1.000kg
Description
Main Features:
Simple and compact structure, steady performance.
Easy to install and high efficiency.
Overload, low voltage protective device.
Pendent control and remote control.
Easy maintenance.
Specification:
Lifting capacity is 5ton to 32ton;
Span is 12m to 30m;
Lifting height is 6m, 9m, 12m, etc;
Working duty is A3 A4;
Working temperature is -20°C to + 40°C.
Componentsa) Steel structure: main bridge beam, end carriages with wheels driven by motors.b) Hoisting mechanism: electric hoist or open winch mounted on main bridge beam.c) Electrics: electric box/cables/operator.
Control methoda) Wireless Remote Control; b) Pendant Line with Press Button; c) Cabin Control
PaintingEpoxy zinc rich primer + micaceous iron oxide anchor coat + aliphatic polyurethane top coatColor: according to your demand.Average thickness: about 100 microns
Safety features1. Weight overload protection device: If the material is over the capacity, the crane will give a sharp warning for protection itself.2. Emergency brake: If the operation staff encounters some emergency situation, we could start the emergency brake system to protection the related treasure.3. Control Method: Ground control and cab control to avoid any injure to the operation staff4. Main lifting motor: with thermal protection and currency protection.5. Hooks with latch6. Top quality long time bearing polyurethane materials buffer7. Protective earthing8. Crane traveling limit switches

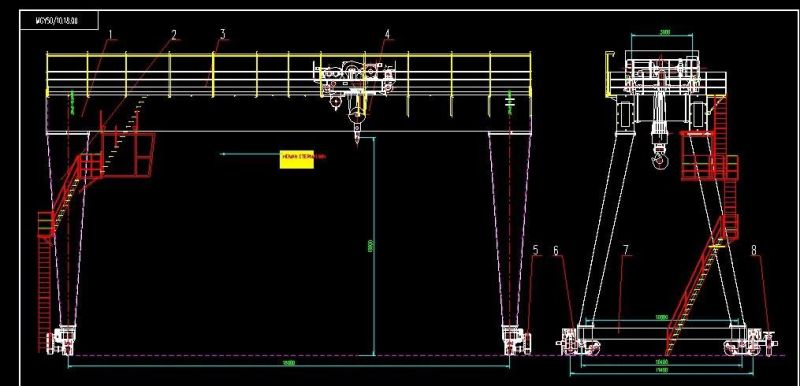

Drawing:
| Our after-sales service provide: |
| 1.15 months warranty after delivery or 12 months warranty after acceptance,whichever comes earlier. |
| 2.1 years spare-parts provided for better maintenance. |
| 3.Professional technical staffs provide installation, commissioning and training services. |
| 4.Delivery with English user manual, parts manual, product certification and other relevant certificates. |
| 5.Technical advisory for any time and Engineers available to service machinery overseas. |
FAQ
More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.
2, Which kind crane can you provide?
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, Eurocrane is able to provide you with complete competitive solutions for material handling based on your demands.
3, What services can you provide?
We have a complete pre-sales & after-sales service system, including consultation, repair, maintenance, modernization, training, inspection and etc. Our engineers are available overseas.
4, Which brand are the accessories and electronic components in your cranes?
We have a long term cooperations with ABB, Siemens, Schn,eider SEW, etc. And we have world-leading processing machines which are imported from Japan and Germany.
5, Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
