• Model NO.：SQ3.2S3
• Type：Straight Arm
• Material：HG70
• Max Lifting moment：80Kn.m
• Max Lifting Capacity：3.2T
• Max Lifting Height：10m
• Working Radius：7.4m
• Boom Section：3 stages
• Rotation Angle：360°All Rotaion
• Working Pressure：16MPa
• Rated Oil Flow：30 L,min
• Oil tank Capacity：100L
• Winch type：Hydraulic
• Swing type：Planetary gear reduction
• Outrigger：adjustable, Hydraulic operating.
• Outrigger Span：1750-3550mm
• Installation Space：800mm

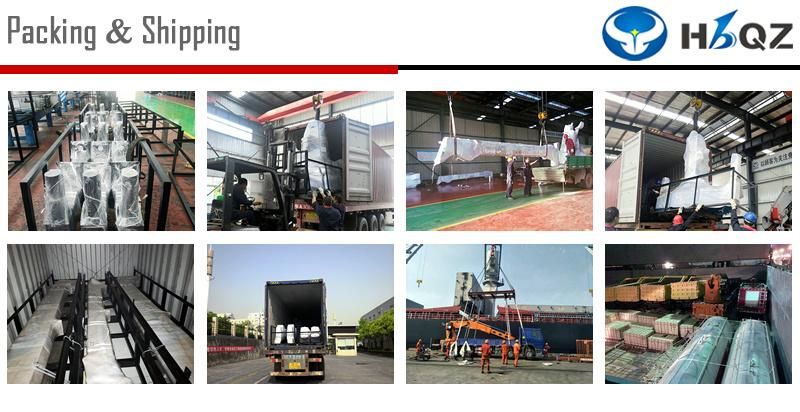

• Transport Package：Nude or Customized
• Specification：1500kg crane weight
• Trademark：HBQZ
• Origin：China
• HS Code：8426910000
• Production Capacity：35 Unit,Units Per Month

Max Lifting Capacity (kg/m)3200/2.51100/4800/5.3400/7.4Max Lifting Height10mWorking Radius7.4mBoom Section3 stagesRotation Angle360°All RotaionWorking Pressure16mpaRated Oil Flow30 L/minOiltank Capacity100LWinchtypeHydraulicSwingtypePlanetary gear reduction.Outriggeradjustable, Hydraulic operating.Outrigger Span1750-3550mmCrane Weight1500 kgInstallation Space800mmSafety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.MaterialHG70 10.00R20 tubeless tire, 7 pieces including one spare tire




Hubei Jiaheng Technology Co., Ltd
Hubei Best Crane Co., Ltd
(Truck Crane Professional Manufacturer)
Web: hbjh2013.en.made-in-china.com
