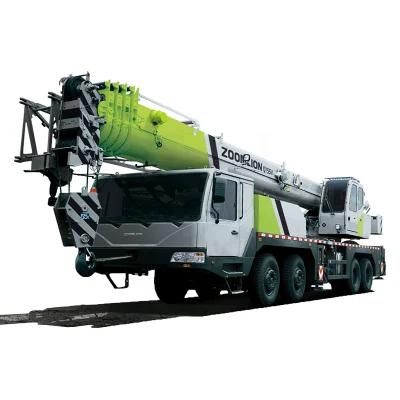

• Model NO.：ZAT3000
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Folding
• Max. Hoist Rope Speed(Main)：113m,Min
• Max. Hoist Rope Speed(Auxiliary)：56m,Min
• Boom Derricking up Time：80s
• Boom Extendingt Time：860s
• Max. Slewing Speed：0-1.3r,Min
• Max. Driving Speed：80km,H
• Max. Gradeability：50%
• Min. Ground Clearance：415mm
• Deadweight in Driving Condition：54990kg
• Overall Dimensions(L*W*H)：17752*3000*4000mm
• Transport Package：Container,RO-RO
• Specification：17752*3000*4000mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：8426200000
• Production Capacity：100,Month

Item

Value

Remarks

Work

performance

Max. rated   lifting capacity               kg

300000

Max. load   moment of basic boom      kN.m

8750

At   7 m radius

Max.   lifting height of main boom          m

80

The   parameters do not include deflection of main boom and jib.

Max.   lifting height of jib                  m

112

Work   speeds

Max. hoist   rope speed (Main winch)   m/min

113

At   the 4^th layer

Max. hoist   rope speed (Auxiliary winch)   m/min

56

At   the 2^nd layer

Boom   extending time                  min

15

Affected   by the temperature and engine RPM

Boom derricking   up time                 s

80

Slewing   speed                      r/min

0   - 1.3

Driving

Max.   operating altitude                m

2000

Max.   driving speed                  km/h

80

Approach   angle                         °

17.5

Departure   angle                         °

14

Max.   gradeability                       %

50

Min.   turning diameter                   m

24

Min.   ground clearance                 mm

415

Limits for   exhaust pollutants and smoke

Conform   to related standards

GB3847-2005

Oil   consumption per hundred kilometers   L

91

Mass

Deadweight   in driving condition          kg

54990

Axle load                             kg

12000

Dimensions

Overall   dimensions (L × W × H)        mm

17752   × 3000 × 4000

Outrigger spread   (L)                   m

8.8

Outrigger   spread (W)                  m

8.8

Main boom   length                     m

15.4   - 80

Boom angle                           °

-0.6   - 82

Light   jib length                     m

12 - 32

Combination lengths

Heavy Jib   length                        m

9   - 32

Combination   lengths

Offset                                °

0,   15, 30

Others

Y-shaped guying system

Equipped

Y-shaped guying system
