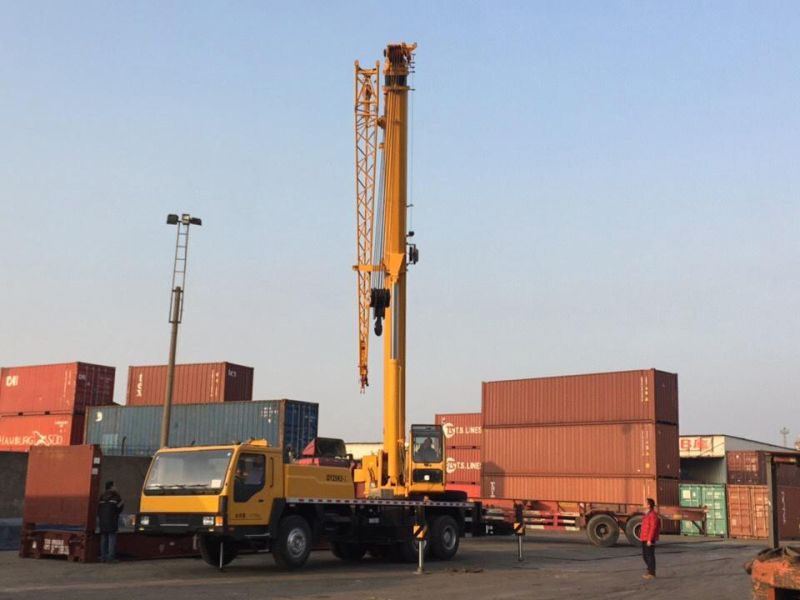

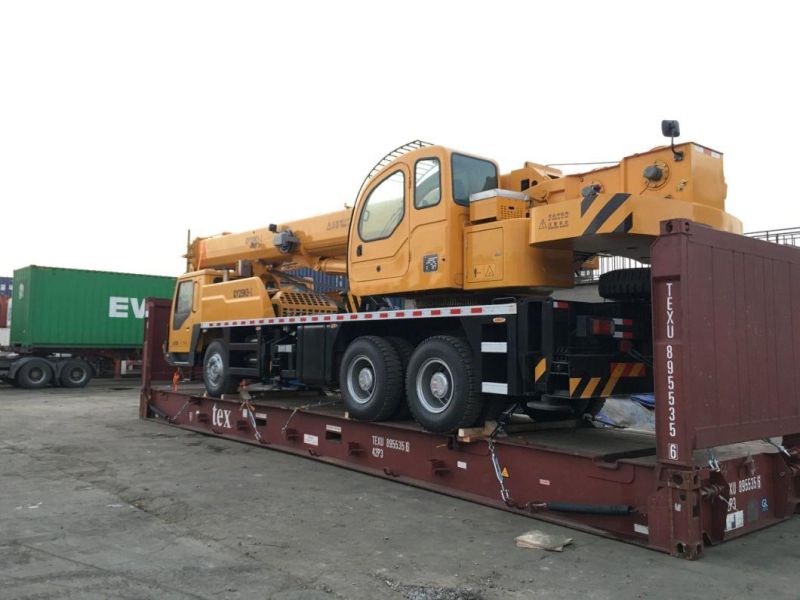

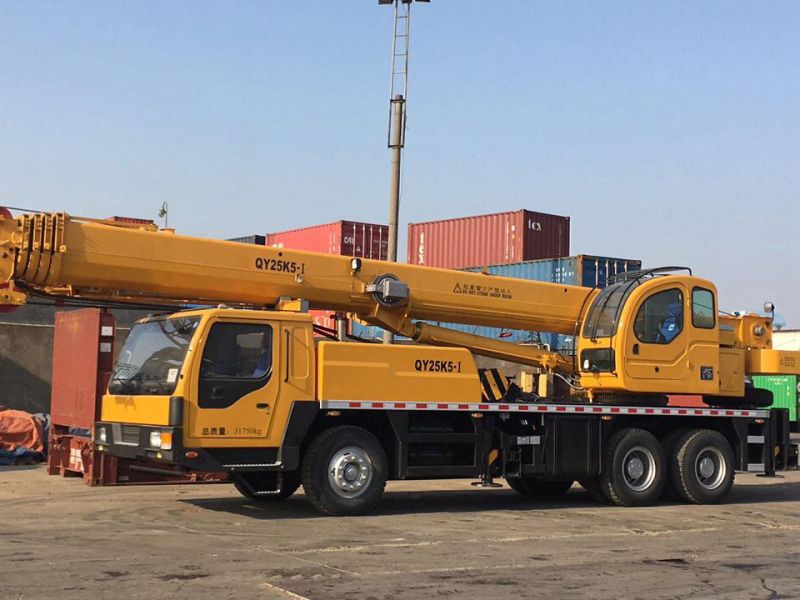

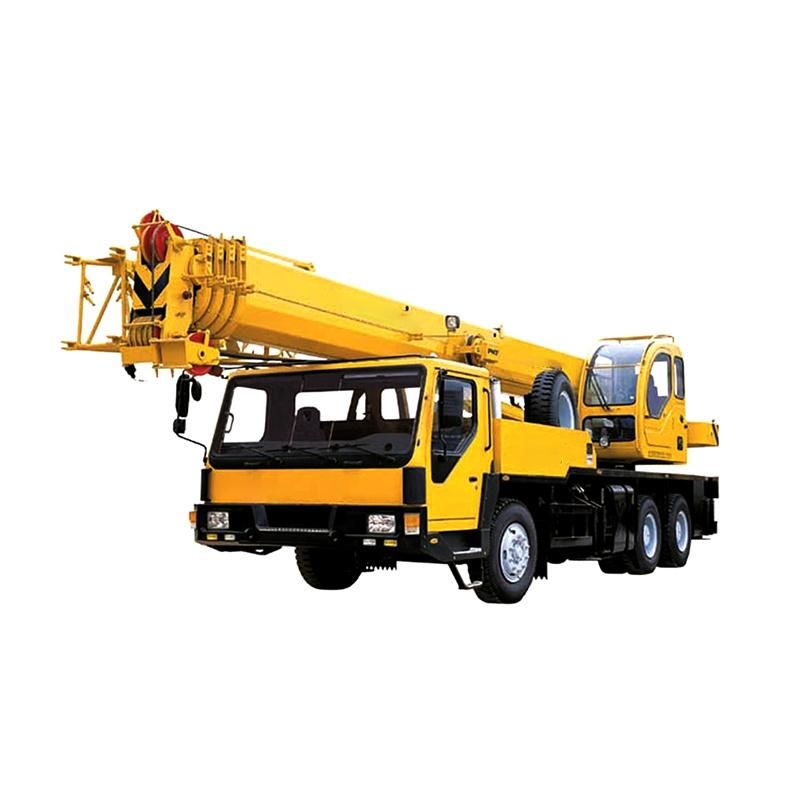

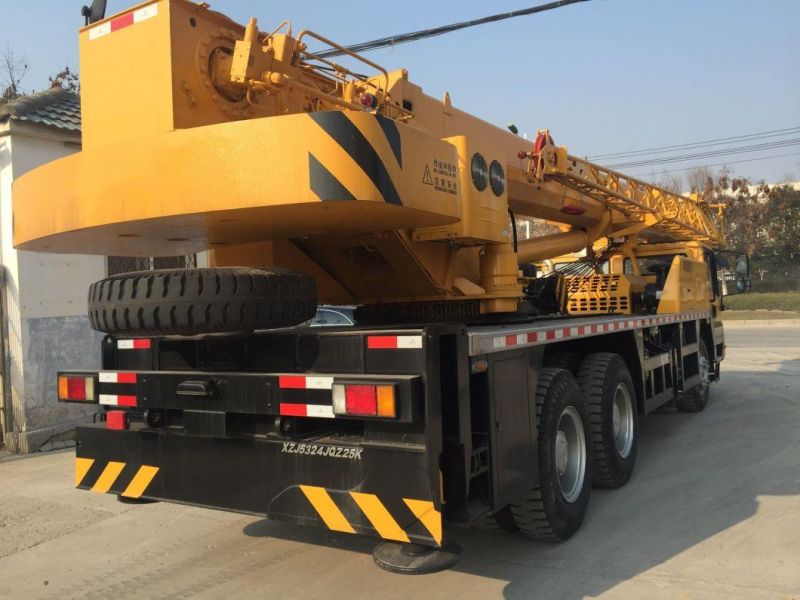

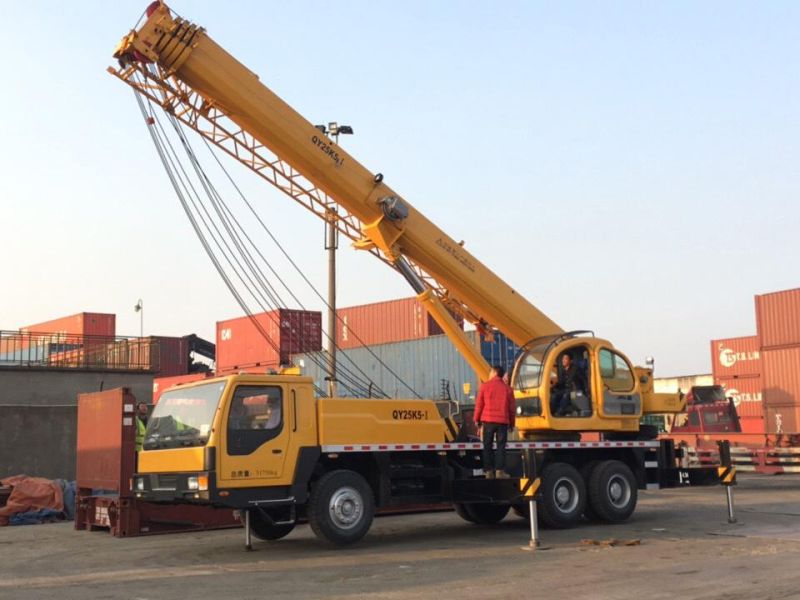

High Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5d

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification:GS, RoHS, CE, ISO9001, ISO9001: 2000
  • Condition:New
  • Maximum Lifting Height:15-20m
  • Maximum Lifting Weight:>16t
  • Shaft Number:3
  • Crane Jib:Five-Arm

Base Info

  • Model NO.:QY25K5D
  • Type:Small Crane
  • Color:Yellow
  • Max. Loading:25t
  • Engine:213kw, EU-III
  • 5 Section Octagonal Boom:39.5m
  • Application:Construction
  • Tower Crane Type:Under Slewing Cranes
  • Sling Type:Wire Rope
  • Main Girder Form:Single Girder
  • Power Source:Hydraulic
  • Moving Type:Orbital
  • Transport Package:Nude, Suitable for Shiping
  • Specification:ISO
  • Trademark:Oriemac
  • Origin:Jiangsu, China
  • HS Code:84294019
  • Production Capacity:100 Sets,Month

Description

QY25K5-IOverall lengthmm12300Overall widthmm2500Overall heightmm3350Weight

 Total weight in travelkg31750Front axle loadkg6550Rear axle loadkg25200Power

 Engine model
 SC8DK280Q3WD615.329Engine rated powerkW/(r/min)206/2200213/2200Engine rated torqueN.m/(r/min)1112/14001160/1400Travel

 Max. travel speedkm/h80Min. turning diameterm22Min. ground clearancemm260Approach angle°16Departure angle°13Max. grade ability%40Fuel consumption for 100kmL≈37Main performance

 Max. rated total lifting capacityt25Min. rated working radiusmm3000Turning radius at turntable tailm3.065Max. lifting torquekN.m961Base boomm10.4Fully extended boomm39.5Fully extended boom+jibm47.8Longitudinal outrigger spanm5.14Lateral outrigger spanm6Working speed

 Boom luffing times68Boom full extension times150Max. swing speedr/min2.5Max. speed of main winch (single rope) (no load)m/min125Max. speed of aux. winch (single rope) (no load)m/min125High Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5dHigh Performance Brand New 25 Ton Hydraulic Construction Mobile Truck Crane Qy25K5d
