• Model NO.：SCC550A
• Type：Cantilever
• Max Lifting Capacity：55t
• Max Lifting Moment：203.5 T M
• Boom Length：13-52 M
• Max Lifting Moment with Fixed Jib：112 TM
• Fixed Jib Length：6.1-15.25 M
• Longest (Boom+Fixed Jib)：43+15.25 M
• Boom Luffing Angle：30 Degree-80 Degree
• Fixed Jib Offset Angle：10 Degree, 30 Degree
• Engine Model：Cummins Qsb5.9-C210
• Engine Rated Power：154,2200 Kw,Rpm
• Engine Rated Torque：820 Nm , 1400 Rpm
• Engine Emissions：Tier 3
• Rope Speed of Main/Auxiliary Winches：0-130 M,Min
• Rope Speed of Boom/Jib Luffing Winches：0-80 M,Min
• Single Rope Pull：7 T
• Transport Package：Export Package
• Specification：55ton
• Trademark：SANY
• Origin：China
• Production Capacity：5000 Set Per Week

Basic Info.

Model NO. SCC550A Type Cantilever Max Lifting Capacity 55t Max Lifting Moment 203.5 T M Boom Length 13-52 M Max Lifting Moment with Fixed Jib 112 TM Fixed Jib Length 6.1-15.25 M Longest (Boom+Fixed Jib) 43+15.25 M Boom Luffing Angle 30 Degree-80 Degree Fixed Jib Offset Angle 10 Degree, 30 Degree Engine Model Cummins Qsb5.9-C210 Engine Rated Power 154/2200 Kw/Rpm Engine Rated Torque 820 Nm / 1400 Rpm Engine Emissions Tier 3 Rope Speed of Main/Auxiliary Winches 0-130 M/Min Rope Speed of Boom/Jib Luffing Winches 0-80 M/Min Single Rope Pull 7 T Transport Package Export Package Specification 55ton Trademark SANY Origin China Production Capacity 5000 Set Per Week

Product Description

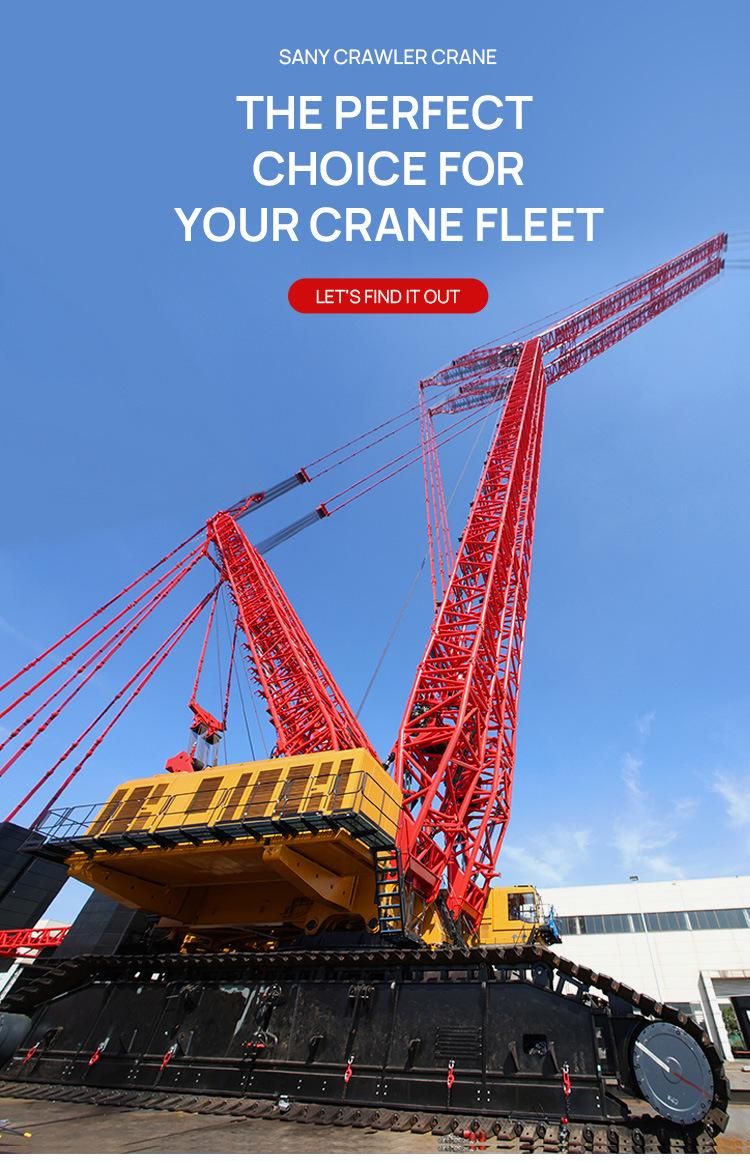

SANY SCC550A 55 ton Crawler Crane for Sale
Sany SCC550A crawler crane's maximum lifting capacity is 55 tons, with multifunctional boom system, the crane may support a combination of up to 11 types of operating conditions. The 55 ton crawler tower suits for various business requirements.

Engine
▪▪Model: DCEC (Cummins China) QSB5.9-C210 Diesel engine;
▪▪Type: 4-stroke, water-cooled, vertical in-line 6 cylinders, direct
injection, turbo-charger, intercooler, complied with European
Off-way Tier III Emission Standard and Chinese Off-way Tier III
Emission Standard;
▪▪Displacement: 5.9L;
▪▪Rated power: 154kW/2200rpm;
▪▪Operation power: 147kW/1800rpm;
▪▪Max. Torque: 820N·m/1500rpm ;
▪▪Starter: 24V-6kW;
▪▪Radiator: fin type aluminum plate core;
▪▪Air cleaner: Dry type system with main filter element, safety
element and resistance indicator;
▪▪Throttle: Grip type hand throttle, electrically-controlled;
▪▪Fuel filter: Replaceable paper element;
▪▪Batteries: Two 12V×180Ah capacity batteries, connected in
series;
▪▪Fuel tank capacity: 400L.

Electrical Control System
▪▪Self-developed SYIC-II integrated control system is adopted with
higher integration, precise operation and reliable quality;
▪▪Control system consists of power system, engine system,
main control system, LMI system, auxiliary system and safety
monitoring system. CAN BUS is used for data communication
between controller, monitor and the engine;
▪▪Monitor: the working parameters and status are shown on the
monitor, such as the engine speed, fuel volume, engine oil
pressure, servo pressure, wind speed, engine working hours,
lifting conditions and boom angle.

Hydraulic System
▪▪Main pumps: open variable displacement piston pumps of
large displacement are adopted to provide oil supply for main
actuators of main machine;
▪▪Gear pump: dual gear pump for swing, radiator and control
circuit;
▪▪Control: main pump adopts electrically-controlled positive flow
control; winch motor adopts limitless adjustable piston motor of
variable displacement. The operating components are two cross
hydraulic handle, one dual travel pedal control valve to control
various actuators proportionally;
▪▪Way of cooling: heat exchanger, fan core and multi-stage
cooling;
▪▪Filter: large flow, high precision filter, with bypass valve and
transmitter, which can remind the user to replace the filter
element in time;
▪▪Max. pressure of system: 32 Mpa;
▪▪Main/aux. load hoist and travel system: 32Mpa;
▪▪Swing system: 20 MPa;
▪▪Control system: 5 MPa;
▪▪Hydraulic Tank Capacity:460L.

Superior Performance

Powerful Lifting Capacity

Wide-track chassis is designed to ensure excellent stability within 360° rotation; the maximum lifting capacity of main boom is 203.5t·m (55t×3.7m), the maximum length of main boom is 52m, and the rated single line pull of main and auxiliary winches is up to 6.5t.

Excellent Operation

Load-sensing system, limit load regulation, and electronic-over-hydraulic proportional micro-speed controls ensure smooth micro-movement and stable operation.

Efficient Operating Speed

Cummins 6-cylinder engine with rated power of 132kW@2200rpm, maximum torque of 800Nm@1400rpm; outmost layer line speed of main and auxiliary lifting winches is 120m/min, and that of luffing winch is 72m/min.

Safety and Reliability

Safe Control System

Switch between the operation and installation modes is more convenient and reliable, and the crane's functions including electronic level gauge, off-line stop, emergency electric control, and closed-circuit monitoring ensure your safety; load moment limiter is free of calibration, which provides you with a safer operation and costs you less time.

Reliable Function Guarantee

Sufficient safety margin in structural design; the control system runs stably even in extreme cold / hot weather, high altitude and sandy regions; the key components like pumps, valves, motors, and reducers of international well-known brands are reliable and stable; advanced hydraulic technology, lightning protection, waterproof/dustproof devices are adopted to ensure the whole machine's stability and reliability; the crane passed the verification test of the strength twice higher than that in the industry.

High Return & Low Cost

Optimized Transportation

With telescopic crawler, the maximum transport width of whole machine is 3.36m, ensuring it to be transported freely.

Convenient Maintenance

It takes no more than 10min/person to adjust, 30min/person for daily maintenance and 2h/person to repair the machine. GPS remote monitoring system is optional for maintenance and management.

Flexible Configuration

Free fall winch is optional for main and auxiliary lifting winches; slewing area limit device is optional to improve the crane's safety.
