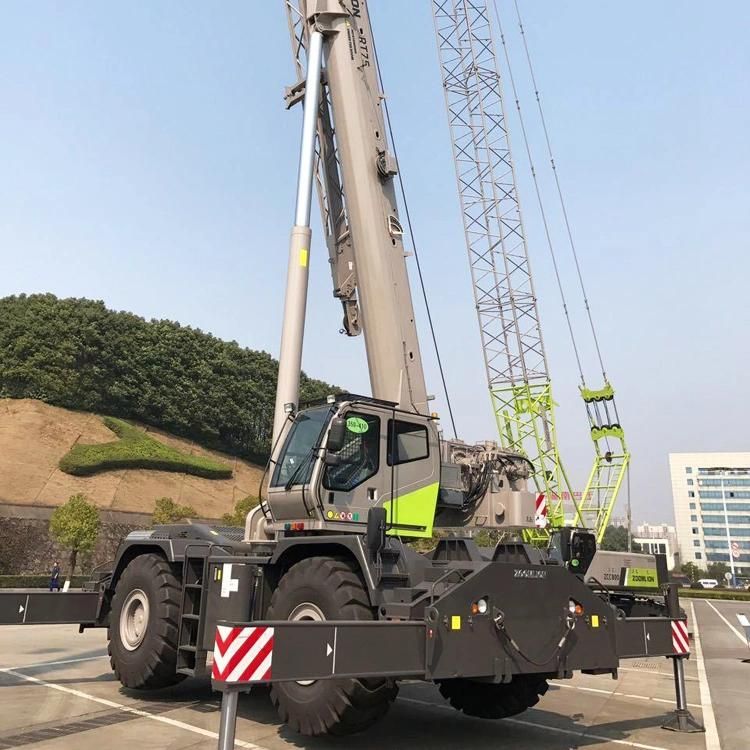

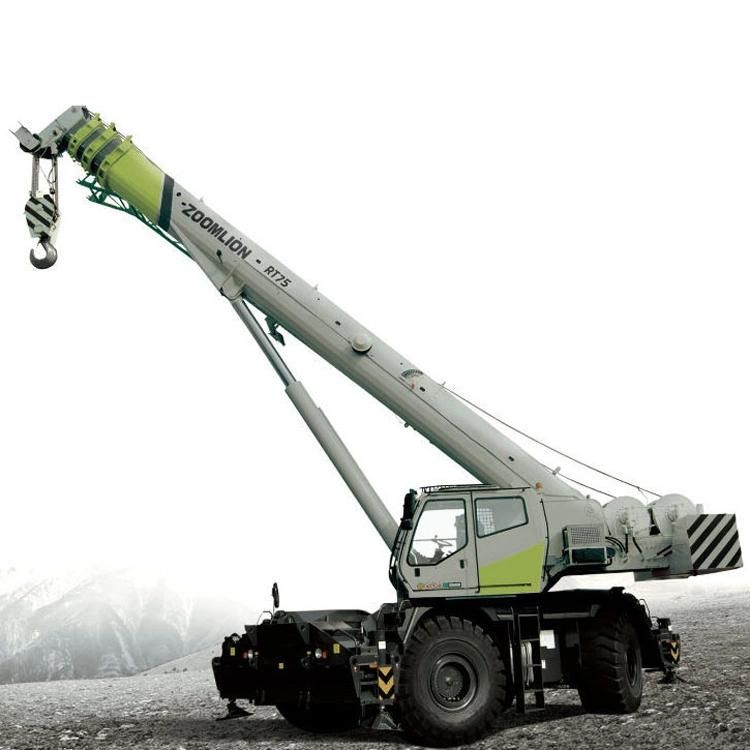

Zoomlion 75ton Rough Terrain Crane Rt75 Rt Crane

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • After-sales Service：Oversea
  • Warranty：1 Year
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：RT75
  • Shaft Number：2
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Complete Vehicle Mass：65000kg
  • Max. Lift Height：56.8meters
  • Transport Package：Nude Packing
  • Specification：14897x3395x3840mm
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：84295100
  • Production Capacity：100 Units,Month

Description

ItemUnitValueWork performanceMax. rated lift capacity × work radiuskg.m75000×3.0Max. load moment of basic boomkN.m2814Max. load moment of fully extended main boomkN.m1184Max. lift height of fully extended main boomm41Max. lift height of jibm56.8DimensionsOverall dimensions(L×W×H)mm14897×3395×3840Outrigger spread (L×W)mm7380×1300Main boom length (Fully retracted fully extended)mm12500-38500Jib length (Jib section 1,jib sections 1+2)mm10000-170000Boom angle°-81Swing range°360°unlimited swing (Full range)Work Max. hoist rope speed (Main winch)m/min125     SpeedsMin. boom extend times110 Min. boom retract times90 Min. boom der-rick up times80 Min. boom der-rick down times70 Swing speedr/min0-2Hydraulic systemRated work pressureMPa29Rated work oil flowL/min320Hydraulic oil tank capacityL1000MassComplete vehicle masskg52840Front axle loadkg27760Rear axle loadkg25080TravelMax. travel speed (Forwarsd / backwards)km/h36/36Wheelbasemm4150Treads (Front / rear)mm2632
