• Model NO.：OUCO-25T20M-SB
• Working Radius：20m
• Lifting Capacity：25t
• Type：Stiff Boom
• Function：Lifting &Luffing
• Transport Package：Nude
• Specification：Customized
• Trademark：OUCO
• Origin：Jiangsu, China
• HS Code：8426990000
• Production Capacity：500sets,Year

Basic Info.

Model NO. OUCO-25T20M-SB Working Radius 20m Lifting Capacity 25t Type Stiff Boom Function Lifting &Luffing Transport Package Nude Specification Customized Trademark OUCO Origin Jiangsu, China HS Code 8426990000 Production Capacity 500sets/Year

Product Description

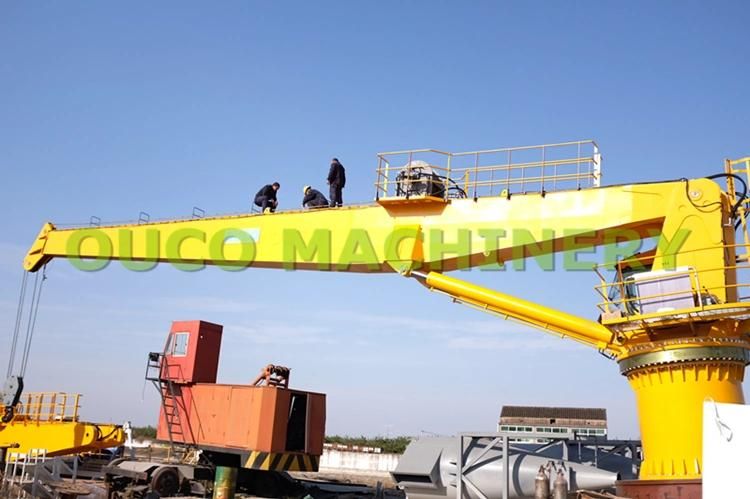

Stiff Boom Hydraulic System 25T20M Caogo Crane

     The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of OUCO standard and pedestal diameter is depend on the SWL of the crane. The standard SB crane will supply with an operator platform. Operator cabin is optional. The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.



Specifications

1	CRANE TYPE	25t @20m  Max. Working radius:20m. Hydraulic Stiff Boom Cargo Crane
2	CERTIFICATION	CCS under sea state 2
3	QUANTITY	1 set
4	HEEL/TRIM	5°/2°
5	AMBIENT TEMPERATURE	-9.9°C~+45C
6	SWL	25t @20m
7	MAX WORKING DADIUS	20m
8	MIN WORKING DADIUS	5m
9	HOISTING SPEED	0~10m/min(main hook) ~30m/min (aux hook)
10	LIFTING HEIGHT	~30m
11	SLEWING ANGLE	~360° all free
12	SLEWING SPEED	0~0.5r/min
13	LUFFER TIME	120s
14	SELF WEIGHT OF CRANE	~30t(Confirmed in approval drawing)
15	POWER SUPPLY	415v, 50Hz, 3P





Product Features

1. Easy maintenance at all situation

2. Self contained unit with integrated hydraulic power pack

3. Fail-safe brakes on all movements

4. Fully enclosed and equipped operator cabin with air condition

5. The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load

6. Base on many year's design and fabrication experience of crane and other similar equipment

7. Suitable for all kinds of ships and low power consumption and high efficiency

8. Welded and high strength box boom for easy maintenance

9. With Many safety protection devices---hook up limiter and overload limiter, emergency stop button

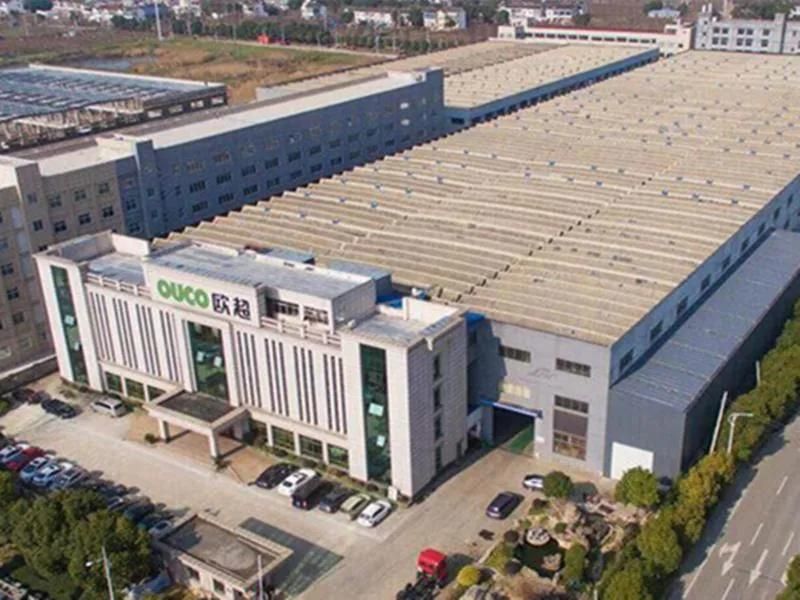

Company Profile

Jiangsu OUCO Heavy Industry and Technology Co., Ltd

  The OUCO Marine Group provides high quality handling solutions and access systems for the marine and offshore industries.Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Marine Group has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East.

    With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

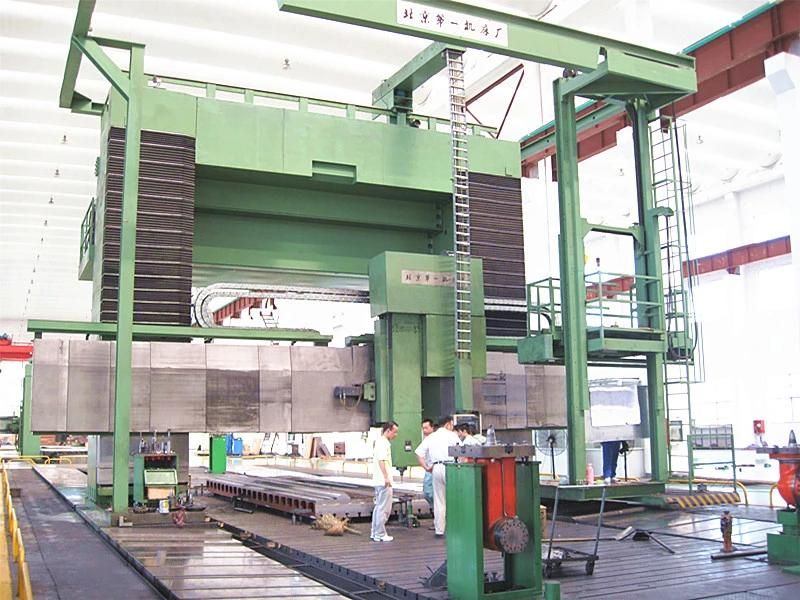

Equipment

     Our factory has all kinds of the most advanced production equipment and we own the best technologies. We can produce all kinds of products you want with all the equipment.

Exhibitions

Certificates

FAQ
1.Q: What's the working radius of your crane?
A: From 1m to 100ms, we can also design and manufacture cranes according to your requirements.
2. Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
3. Q: Is this crane explosion-proof?
A: Sure, we can equip any extra function based on your requirement.
4. Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
5. Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole pieces.
