• Model NO.：FTC55Q5
• Type：Straight Arm
• Base Boom：11.3m
• Full- Extended Boom：43m
• Full-Extended Boom+ Jib：57.7m
• Fuel Consumption for 100km：37L
• Outrigger Longitudinal Distance Span：5.91m
• Boom Elevating Time：40s
• Rear Axle：24600kg
• Max. Slewing Speed：2r,Min
• Max.Total Lifting Capacity：55ton
• Transport Package：Nude
• Specification：130cbm
• Trademark：china
• Origin：Shanghai
• HS Code：87051091
• Production Capacity：200units

DimensionsOverall length13770mmOverall width2800mmOverall height3570mmWeightDead weight in travel state41000Kg1st axle load7500Kg2nd axle load7500Kg3rd axle load13000Kg4th axle load13000KgPowerEngine modelWD615.334 WD615.338 WP10.336 WP10.375 Engine rated output247/2200 276/2200 247/2200 275/2200Kw(r/min)Engine rated torque1350(1300~1600) 1500(1300~1600) 1350(1100~1500) 1460(1200~1600)N.m(r/min)TravelMax.travel speed80Km/hMin.turning diameter24mMin.ground clearance291mmApproach angle17.Departure angle11.Max.gradeability40%Fuel consumption of per 100km42LLifting performanceMax.total rated lifting load55tMin. working radius3mmTurning radius at swing table tail3482mBase boom max.load moment1822Kn.mBase boom11.3mFull- extended boom43mFull-extended boom+ jib57.7mOutrigger longitudinal distance span5.91mOutrigger lareral distance span6.9mWorking speedBoom elevating time40sBoom telescoping time80sMax. slewing speed2r/minMain winch max. speed(no load)130m/minAuxiliary winch max. speed(no load)120m/min

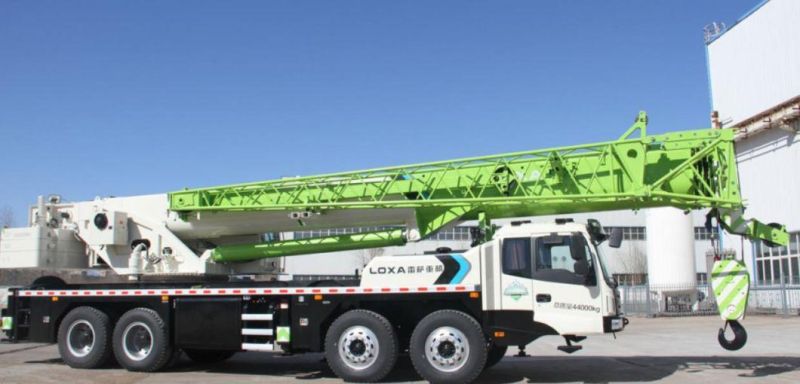

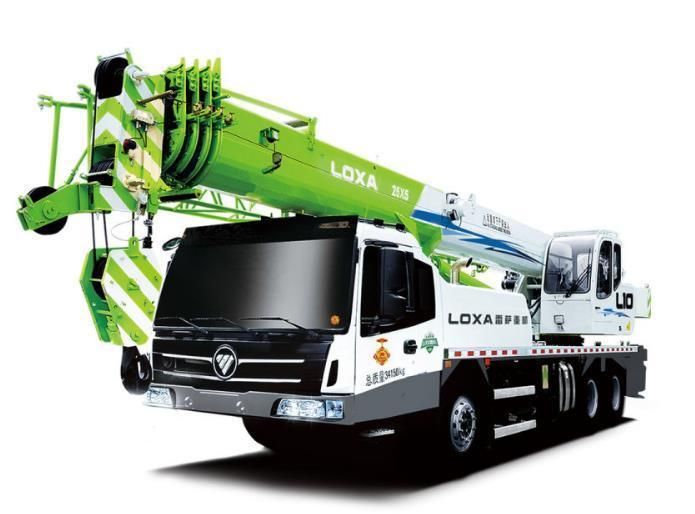

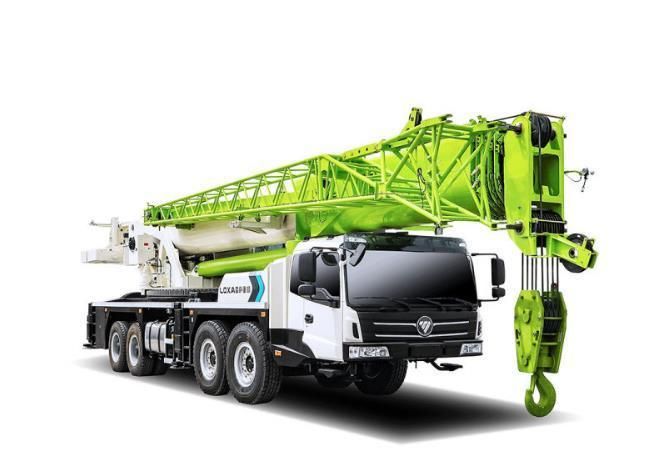

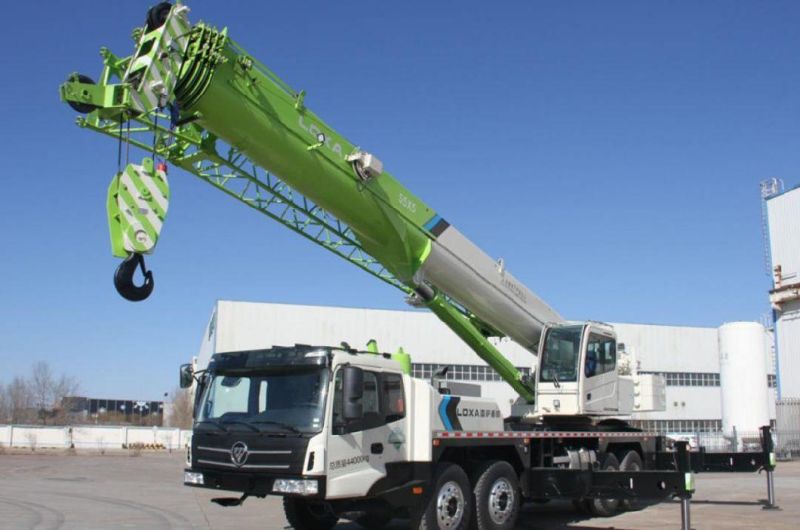

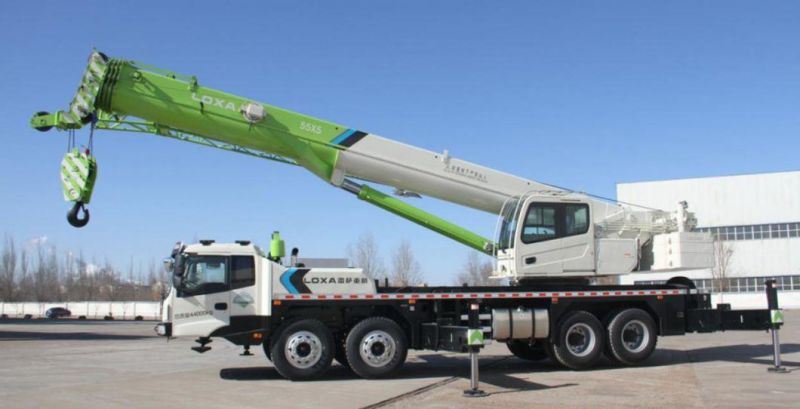

Photos:

1.. Which countries do we export to?
Asia: Philippine,Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: Sudan, Ethiopia, Libya, Ghana,Algeria,Nigeria,Guinea,Mozambique ,Kenya,etc

2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts,
like engines,bridge,transmissions,and many parts designed and produced by ourselves,
always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce
production cost to ensure that our price is competitive.
3)Service Team: First, our sales managers are online 24 hours,ready to answer your
questions at any time. Second, professional maintenance team with senior technicians,
ready to provide support services to users and dealers. Most problems can be solved
within 24 hours.
4)Fast Delivery:Under normal circumstances,we can delivery with 10 working days in
factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall
be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses" can be accepted.
4. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust
our price based on two situations:
1)The rate of USD
2)TheThe price of material

Other questions, please contact me directly!!
Peter 008615921244786
