Lda Type 1~20tons Single Girder Overhead Crane with Electric Hoist
Henan Kuangshan Crane Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Operation Form：Pendent Control or Remote Control
- Maximum Lifting Height：25-30m
- Maximum Lifting Weight：<20t
- Main Girder Form：Single Girder
Base Info
- Model NO.：LDA Model
- Type：Ordinary
- Product Name：Standard Exporting Package
- Working Class：A3,A4
- Color：Client′s Requirements
- Working Voltage：380V50Hz3pH or According to Your Demand
- Control Method：Pendent Control or Remote Control
- Main Electrical：Schneider or Siemens or Chint Brand
- Lifting Speed：Single Speed or Dual Speed
- Wheel Diameter：270mm
- Width of Track：37~70mm
- Transport Package：Standard Exporting Package
- Specification：China National Standard
- Trademark：KUANGYUAN
- Origin：Xinxiang(Crane Hometown), Henan Province, China
- HS Code：84261120
- Production Capacity：30000sets,Year
Description
Crane girder:
The crane girder is of welded girder construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and small wheel loads being transmitted to the crane runway!
Control method:
Pendent line with press button or remote control or both
Safety feature:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Design and construction rules:
All the standards which is required for the crane is the Chinese standard
Painting:
Primer and finishing paint
Average thickness:
About 100 microns

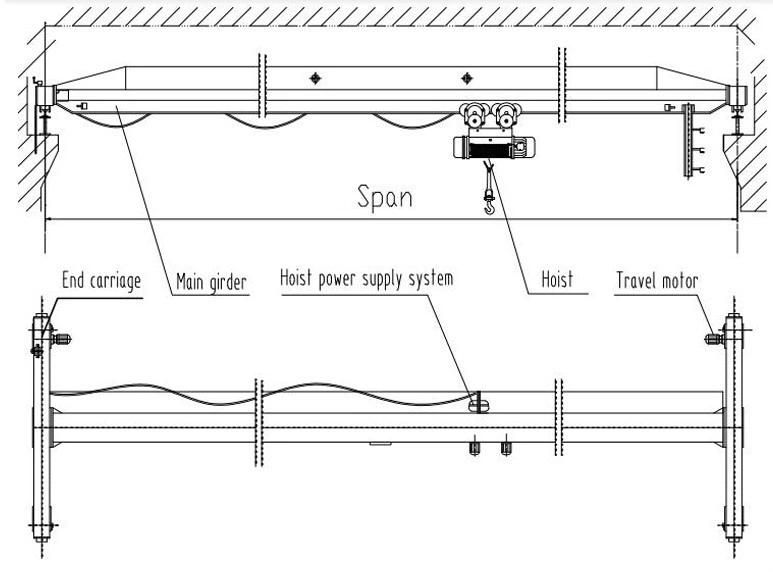

Drawing:

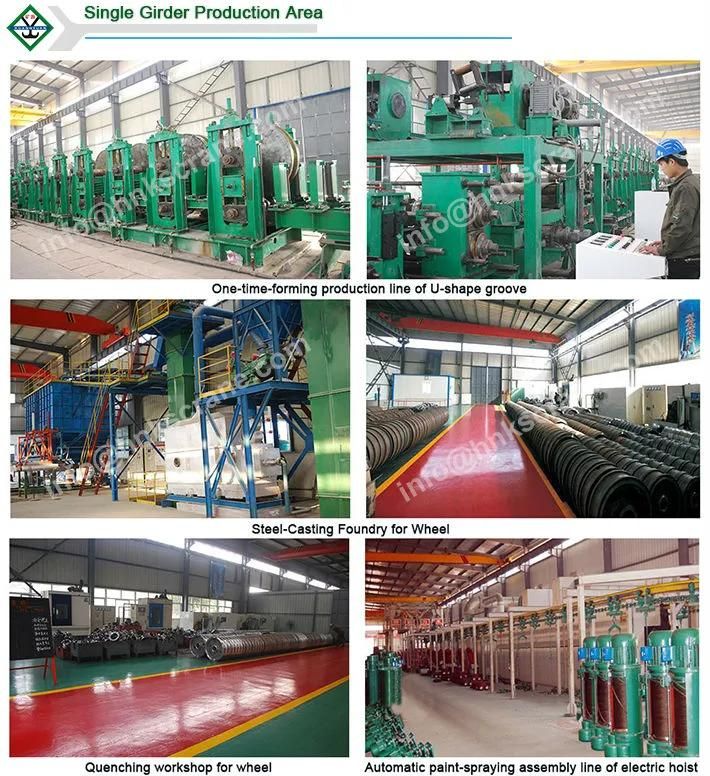

Our company has been the first manufacturer of single girder overhead cranes in China for 12 consecutive years.
