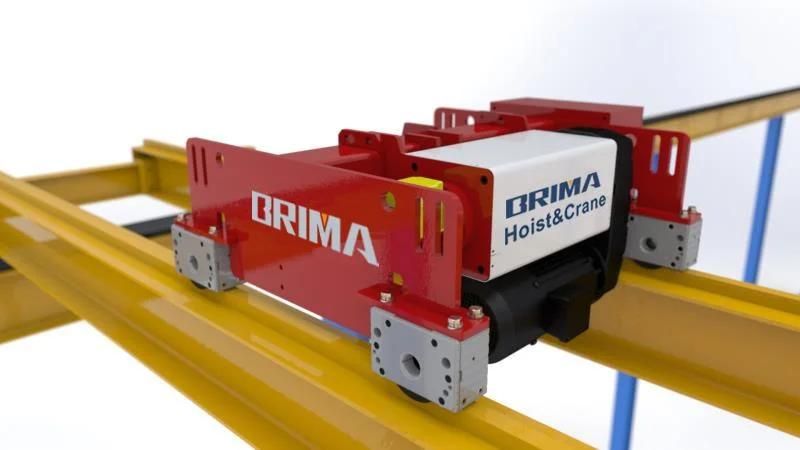

Brima Hot Sale End Carriage, End Truck, End Beam Trolley
Jiangsu Brima Hoisting Machinery Manufacturing Co., Ltd.- Certification:CE, ISO9001: 2000
- Condition:New
- Type:Bridge Crane
- Ambient Temperature:-25~-40 Celsius
- Wheel Base:up to 10m
- Wheel Dia:up to 600mm
Base Info
- Model NO.:BRIMA
- Capacity:up to 100t
- Work Duty:A3,A5,A6,A8
- Tower Crane Type:Slewing Tower Crane
- Sling Type:Wire Rope
- Main Girder Form:Single Girder
- Power Source:Electric
- Moving Type:Wheel
- Transport Package:Plywood Case
- Specification:CE, ISO, SGS
- Trademark:BRIMA
- Origin:Kunshan
- HS Code:84261120
- Production Capacity:3000 Sets , Month
Description
Wheel Dia.D
(mm)S1(mm) S2(mm) W1(mm) W2(mm) B(mm) H(mm) 1t2t/5.5m-11.5m 18 0.3X2 144 2000 1760 500 410 150 200 1t2t/12m-16.5m 18 0.3X2 144 2500 2260 500 410 150 200 3t/5.5m-11.5m 18 0.3X2 144 2000 1760 500 410 150 250 3t/12m-16.5m 18 0.4X2 144 2500 2260 500 410 150 250 1t2t3t/17m-22.5m 18 0.4X2 144 3000 2700 550 440 150 250 1t2t/23m-25.5m 18 0.4X2 144 3500 3200 600 510 150 250 5t/5.5m-11.5m 18 0.4X2 168 2000 1600 600 510 150 250 5t/12m-16.5m 18 0.4X2 168 2500 2100 600 510 200 250 5t/17m-22.5m 18 0.4X2 168 3000 2600 650 560 200 250 3t/23m-25.5m 18 0.4X2 168 3500 3100 650 560 200 250 10t/5.5m-11.5m 19 0.75X2 208 2000 1600 600 510 200 250 10t/12m-16.5m 19 0.75X2 208 2500 2100 650 560 200 300 10t/17m-22.5m 19 0.75X2 208 3000 2600 650 560 200 300 10t/23m-25.5m 19 0.75X2 208 3500 3100 650 560 200 300 16t/5.5-16.5m 20 1.1X2 238 2500 2060 700 600 200 300 16t/17m-22.5m 20 1.1X2 238 3000 2560 750 650 200 300 10t/23m-25.5m 20 1.1X2 238 3500 3060 700 600 200 300 20t/5.5m-16.5m 19 1.5X2 238 2500 2060 950 800 200 350 20t/17m-22.5m 19 1.5X2 238 3000 2560 950 800 200 350
(mm)
