• Model NO.：ZTC550V552
• Shaft Number：2
• Crane Jib：Three-Arm
• Application：Construction
• Rated Power：105,2500kw,(R,Min)
• Transport Package：Standard Export Packing
• Specification：9450*2400*3180mm
• Trademark：Newindu
• Origin：Hunan, China (Mainland)
• HS Code：84295100
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. ZTC550V552 Shaft Number 2 Crane Jib Three-Arm Application Construction Rated Power 105/2500kw/(R/Min) Transport Package Standard Export Packing Specification 9450*2400*3180mm Trademark Newindu Origin Hunan, China (Mainland) HS Code 84295100 Production Capacity 500 Sets/Month

Product Description

Product Description

Zoomlion brand ZLJ5555JQZ130V truck crane is a high-performance, high-reliability crane designed and developed by our company in order to adapt to market demand, using the technology of designing and manufacturing mobile cranes for many years and combining with international advanced technology. This product is a high-tech product with a high concentration of electro-hydraulic systems. It will be active in all fields of my country's economic construction with its excellent handling performance, excellent micro-motion performance, huge lifting capacity and extraordinary lifting height. This product is suitable for lifting operations and installation projects in chemicals, mines, oil fields, ports and docks, construction sites and other places. This product is not suitable for areas with strong electromagnetic waves.

This product is a full-slewing, telescopic boom type, electro-hydraulic proportional control truck crane. It adopts the company's self-made five-axle dedicated chassis for full-drive, wide vision, luxurious and comfortable decoration, three-axle drive and three-axle steering.

The latest electro-hydraulic proportional reversing valve with load feedback and multi-link plunger variable pump are adopted. The variable system of open and closed combination makes the working ability of each actuator fully play. Double rocker operation can realize the main and auxiliary The combined actions of lifting, luffing, slewing and telescopic mechanisms greatly improve the working efficiency of the crane. It has the characteristics of light and flexible operation, stable and reliable operation, and stepless speed regulation. In the hydraulic system, there are safety devices such as overflow valve, balance valve, hydraulic lock, brake valve, etc., to prevent the oil circuit from overloading and avoid accidents caused by the rupture of the oil pipe.

Equipped with a variety of safety devices such as a torque limiter and a complete lighting system, it can ensure safe and reliable operation and facilitate night operations.

Technical Parameters


Overall length	mm	9450
Overall width	mm	2400
Overall height	mm	3180
Weight
Total weight in travel	kg	10490
Front axle load	kg	2800
Rear axle load	kg	7690
Power
Engine model		YC4E140-30
Engine rated power	kW/(r/min)	105/2500
Engine rated torque	N.m/(r/min)	500/1600
Travel
Max. travel speed	km/h	75
Min. turning diameter	mm	16000
Min. ground clearance	mm	260
Approach angle	°	29
Departure angle	°	11
Max. grade ability	%	28
Fuel consumption for 100km	L	25.5
Main performance
Max. rated total lifting capacity	t	8
Min. rated working radius	m	3
Turning radius at turntable tail	m	2.254
Max. lifting torque	KN.m	245
Base boom	m	8.2
Fully extended boom	m	19
Fully extended boom+jib	m	25.3
Longitudinal outrigger span	m	3.825
Lateral outrigger span	m	4.18
Working speed
Boom luffing time	s	28
Boom full extension time	s	31
Max. swing speed	r/min	2.8
Main winch single-pump/dual-pump converging (single rope)	m/min	53/110

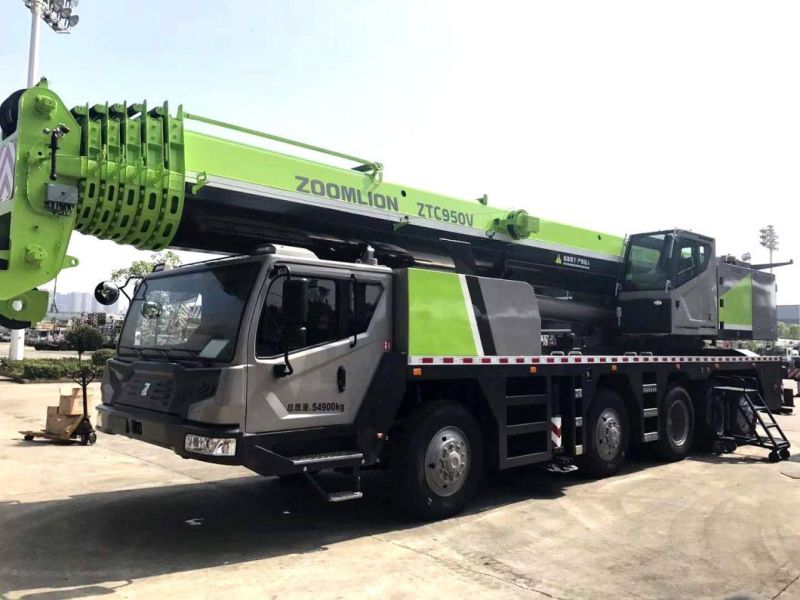

Photos for Reference
