Ouco Folding Telescopic Boom Marine Crane for Marine Ships

JIANGSU OUCO HEAVY INDUSTRY AND TECHNOLOGY CO., LTD.
  • Operation Form：Crane Console
  • Warranty：1 Year
  • Certification：CE, ISO9001, ABS,CCS,BV
  • Swl：2.5t@22m
  • Working Radius：3~32m
  • Hoisting Speed：0~12m,Min

Base Info

  • Model NO.：OUCO-2.5T25M-FTB
  • Hoisting Height：30m
  • Slewing Speed：~1.0r,Min
  • Slewing Angle：360°
  • Tirm：≤2°
  • Heel：≤5°
  • Motor Power：75kw
  • Power Source：AC440V, 60Hz, 3p
  • Protect Class：IP56
  • Working Type：S1
  • Condition：New
  • Application：Workshop, Port, Wharf, Construction Site, Ship
  • Transport Package：Nude
  • Specification：See GA drawing
  • Trademark：OUCO
  • Origin：Jiangsu. China
  • HS Code：8426990000
  • Production Capacity：50 Pieces,Year

Description

SWL

2.5T@22M

Working Radius3~32mHoisting Speed0~12m/minHoisting Height30mSlewing Speed~1.0r/minSlewing Angle360°Luffing Time~120sExtension Time~150sTirm≤2°Heel≤5°Motor TypeY160K-4-HMotor Power75KWMotor Speed1760r/minPower sourceAC440V, 60Hz, 3PProtect ClassIP56Insulate ClassFWorking TypeS1


Customer Bulid

We are an integrated company of industry and trade,our factory specialize in this field for many years. We can design and manufacture any type marine/offshore cranes based on your required specifications.

For example:
This product is called 3T30M crane, because the feature is that this crane has a Lifting Point that can lift Maximum 3T at 40 meters ( the current boom length ). You may need 4T40M, 3T30M, 5T50M ETC. We can manufacture that you want.

BrandOUCOSpare parts1 set ( If needed, more spare parts are available to be provided according to customers' requirements )Warranty1 year ( If needed, warranty time is available to be extended according to customers' requirements )

Standard equipment

# 360 C* continuous rotation.

# -10 C*----+45 C* working temperature.

# certified A36 & S690 steel structure.

# pedestal ready for mounting or weld to vessel main structure .

# stainless steel grease nipples.

# precise step less speed control.

# simultaneous operations of 2 or more function.

# emergency for hydraulic stop device.

# visual and audible warning alarm


Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.

General Arrangement Drawing
Ouco Folding Telescopic Boom Marine Crane for Marine Ships

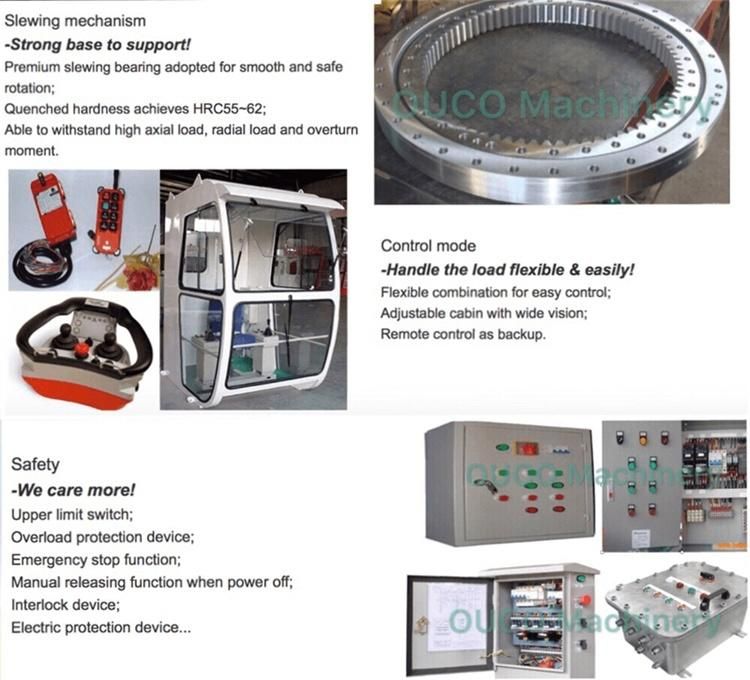

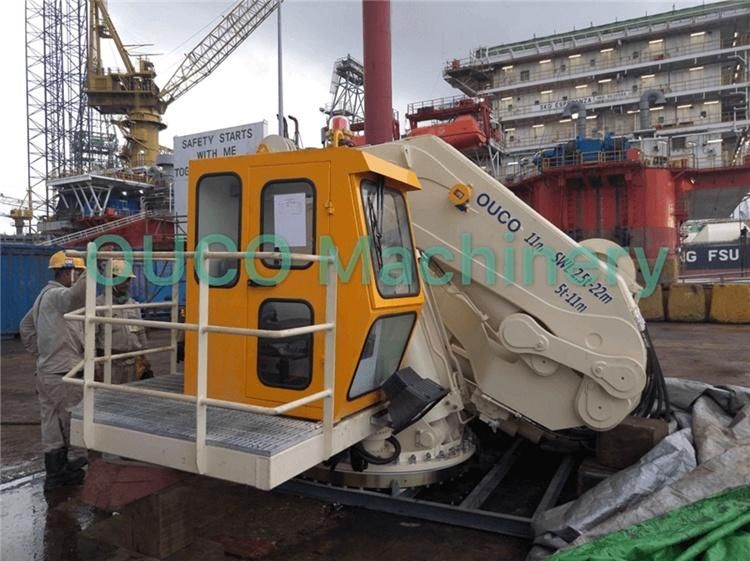

Detailed Images
Ouco Folding Telescopic Boom Marine Crane for Marine Ships
Ouco Folding Telescopic Boom Marine Crane for Marine Ships
FAQ:

Q: What's working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.

Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.

Q: Can this crane be explosion proof?
A: Sure, we can equip any extra functio based on your requirement.

Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.

Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
