• Model NO.：CLW507QCLK
• Shaft Number：2
• Crane Jib：Three-Arm
• Type：Straight Arm
• Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc
• Engine Brand：HOWO, 156HP
• Gearbox：5forwards & 1reverse
• Crane Brand：Clw, etc.
• Crane Capacity：2ton, 3ton, 3.2ton, 4ton, etc.
• Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
• Boom Type：Straight 3-Arm Telescopic Boom
• Cargo Material：Q235 Carbon Steel
• Cargo Thickness：Side 1.5mm, Bottom 2.5mm
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：2ton, 3ton, 3.2ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension7995×2450×3000 (mm)Gross Vehicle Weight11990(Kg)Curb Weight5870(Kg)Chassis SpecificationChassis BrandHowoDrive model4*2CabinSingle, Left Hand Driving, with air conditionalNumber of Passengers3EngineModel4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGRPower115KW/156HPEmission standardEURO 3Displacement2305(ml)Fuel typeDieselGearbox5Forwards & 1ReverseBrake SystemAir breakWheel Base4500mmFront/Rear Axle Loading3900/8090(Kg)Approach/Departure Angle18/21(°)Overhang1160/2235(mm)TireMax Driving Speed95(km/h)Upperstructure SpecificationCargo BodyDimension5200×2325×600(mm)MaterialQ235 carbon steelCargo ThicknessSide 1.5mm, Bottom 2.5mmWorking SystemBoom TypeStraight 3-Arm telescopic boomCraneCrane Brandoptional payload5925(kg)Max Working radius8.1(m)Max Lifting Capacity4000(kg)Max lifting height10(m)Rotation angle360(°)Installation space1150(mm)Recommented power30(kw)Maximum working pressure26(Mpa)Max Flow63(l/min)Crane weight5870(kg)LegLeg typeH typeLeg Span2.28-5.9(m)Hydraulic systemPressure18(M pa)Capacity70(l)Other ConfigurationControl system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

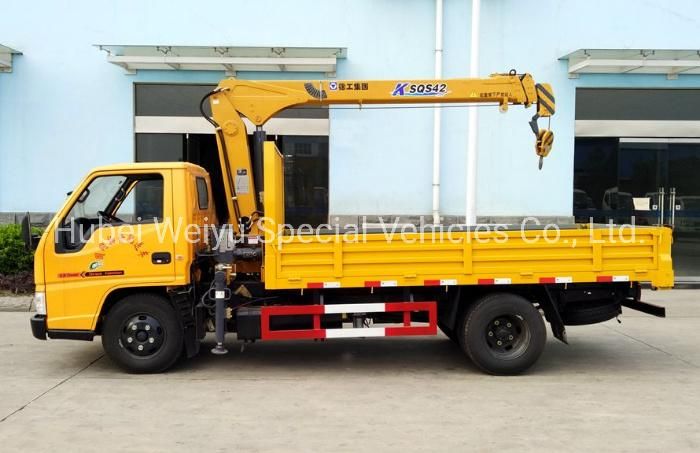

Reference Photos

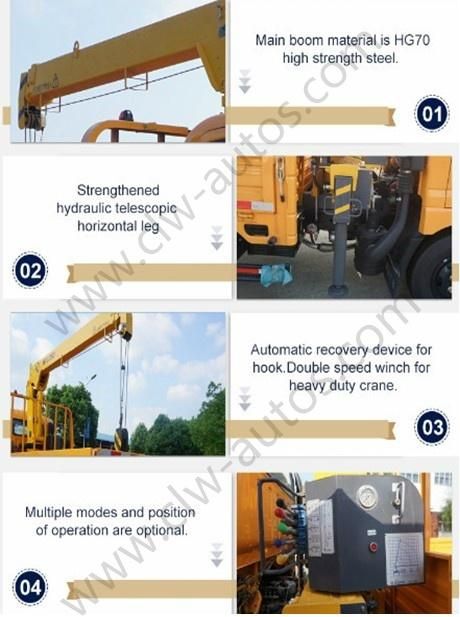

Main Parts

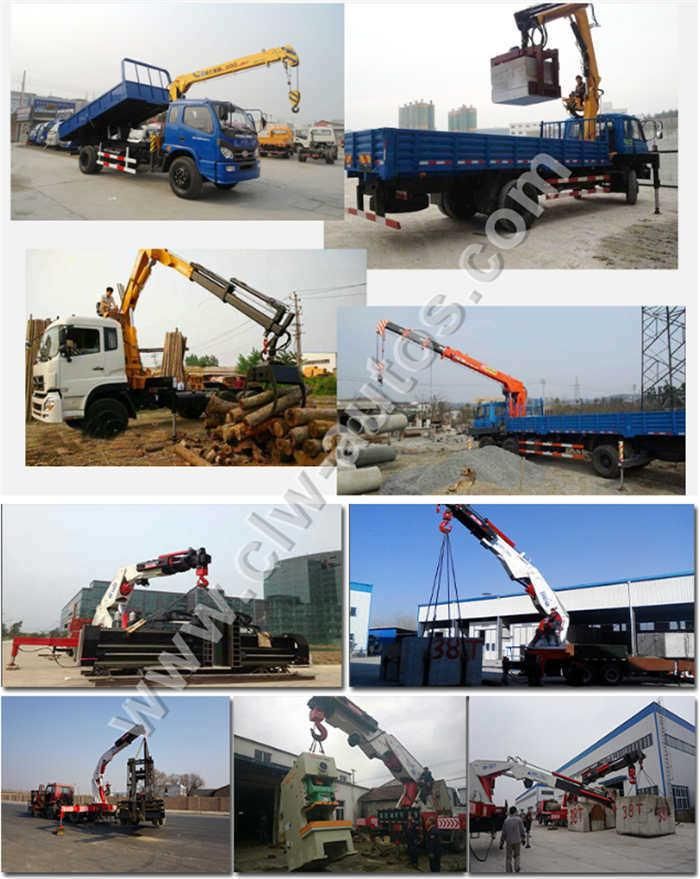

Working Scene

Company Introduction


Certificates



Our Overseas Exhibition
