• Model NO.：STC400T STC500E
• Shaft Number：4
• Crane Jib：Five-Arm
• Type：Straight Arm
• Engine：Isle340 30
• Max. Engine Power：250,2100kw,Rpm
• Max. Engine Torque：1425,(1400)N·m,Rpm
• Gross Weight：39400kg
• Max. Load Moment of Basic Boom：1590kn.M
• Max. Load Moment of Main Boom(Fully Exte：1019kn.M
• Max. Lifting Height of Jib：59.1m
• Outrigger Spread(L)：5.95m
• Outrigger Spread(W)：Fully Extended: 7.2m
• Transport Package：Nude
• Specification：40ton
• Trademark：ORIEMAC
• Origin：Hunan China
• HS Code：87051091
• Production Capacity：500unit,Month

Basic Info.

Model NO. STC400T STC500E Shaft Number 4 Crane Jib Five-Arm Type Straight Arm Engine Isle340 30 Max. Engine Power 250/2100kw/Rpm Max. Engine Torque 1425/(1400)N·m/Rpm Gross Weight 39400kg Max. Load Moment of Basic Boom 1590kn.M Max. Load Moment of Main Boom(Fully Exte 1019kn.M Max. Lifting Height of Jib 59.1m Outrigger Spread(L) 5.95m Outrigger Spread(W) Fully Extended: 7.2m Transport Package Nude Specification 40ton Trademark ORIEMAC Origin Hunan China HS Code 87051091 Production Capacity 500unit/Month

Product Description

ABOUT US:
As a leading Chinese machinery and truck exporter, we have a professional experience of 13years in this field. Besides our trucks of high quality, our international sales team will also provide you excellent logistics service and after-sales service.  We will always do our best to solve all the problems and put our customer's interests in the first place.

We can supply:
1) ALL kinds of trucks.
(Dump truck, mining dump truck, tractor truck, truck trailer ,towing truck , water tank truck, concrete mixer truck, oil tank truck, garbage truck, cargo truck, port terminal tractor, refrigerated truck, truck mounted crane, fire truck, suction sewage truck, bus , etc)
2) All kinds of construction machinery.
(Wheel loader, excavator, folklift, cranes, paver, road roller, motor grader, bulldozer,forklift, piling machine etc.)

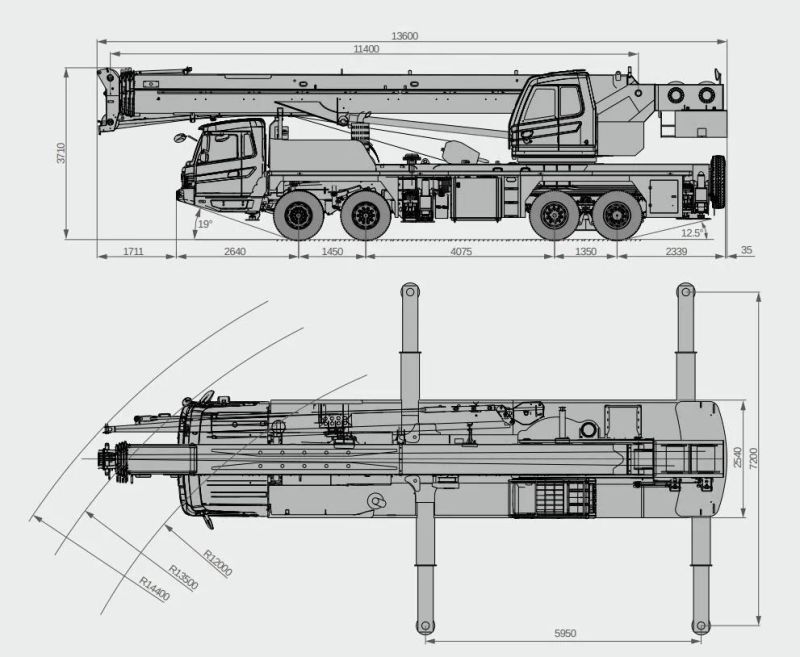

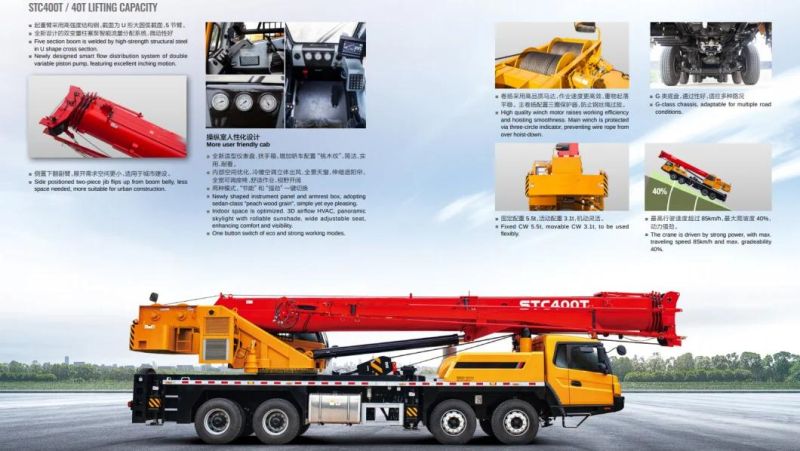

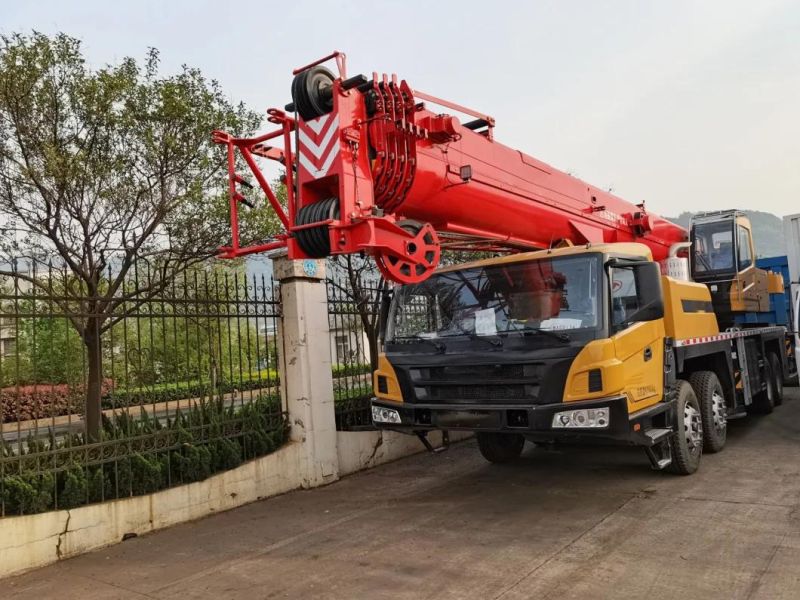

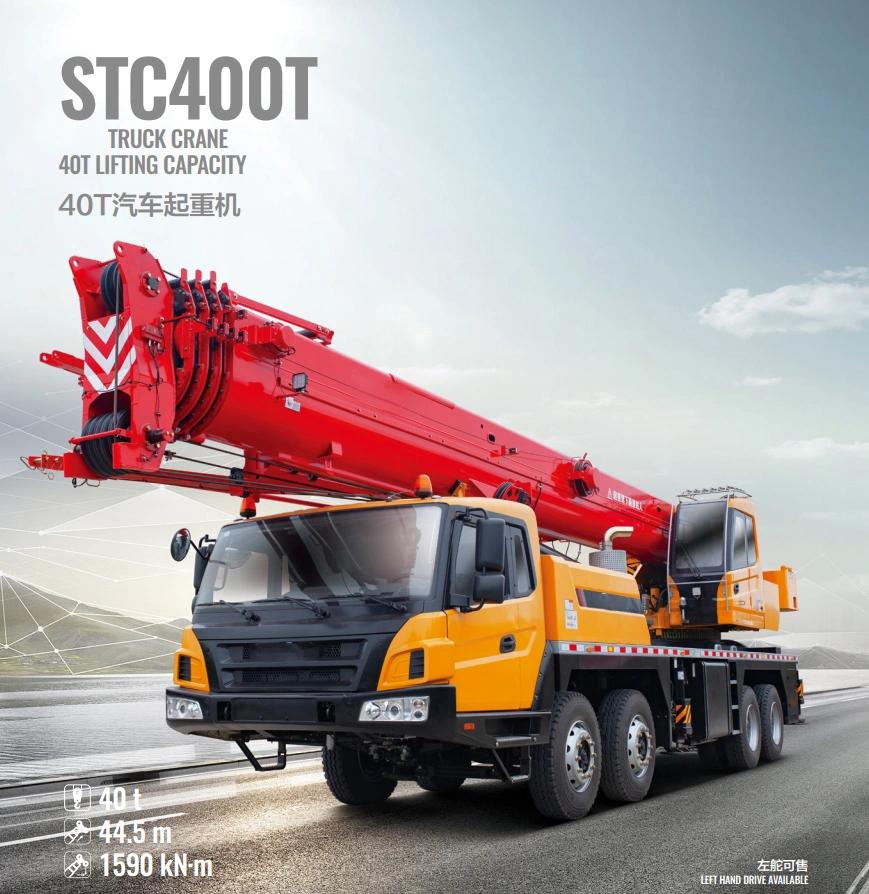

Latest model san-y 40 ton STC400T mobile telescopic boom crane

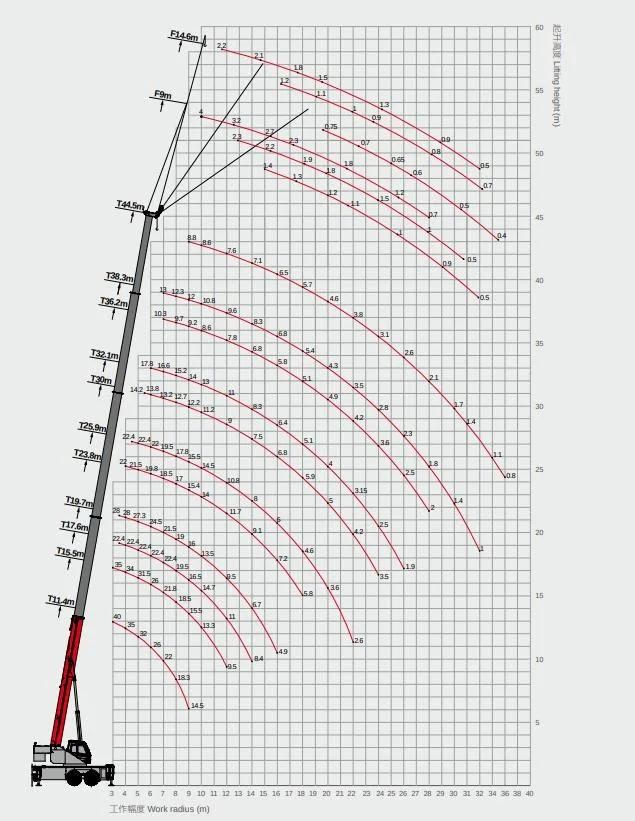

Main Specifications


Max Lifting Capacity	40T
Max Lifting Height	61m
Max Lifting Moment	1590kN·m
Max Boom Length	44.5m
Jib Length	14.6m
Counter Weight	8.6T
Traveling
Engine Model (Emission Standard)	Shangchai/weichai engine, Euro V, VI, III
Max Traveling Speed	85km/h
Wheel Formula	8 x 4 x 4
Max Gradeability	40%
Available Districts	Outside Europe & USA
