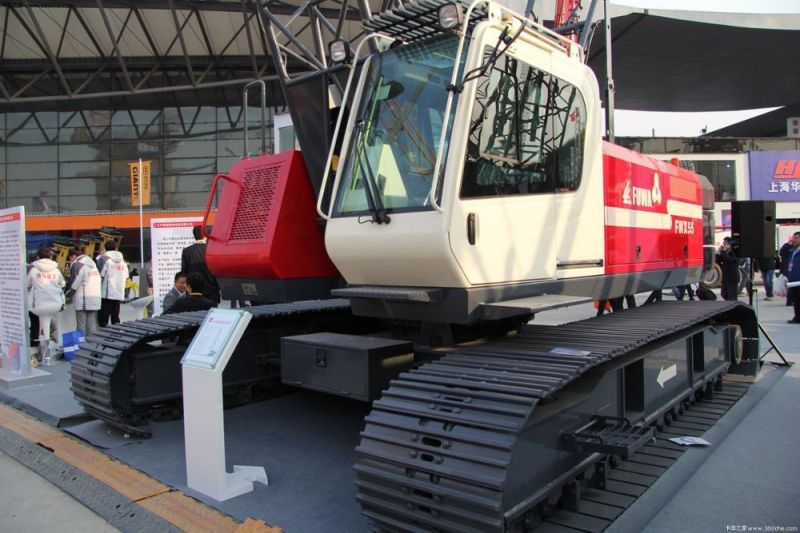

Fuwa 35 Ton Small Crawler Crane Quy35
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：One Year Warranty
- Max. Lifting Height：One Year Warranty
- Rated Loading Capacity：35ton
- Certification：ISO9001, CE
- Condition：New
- Warranty：1 Year
Base Info
- Model NO.：QUY35
- Engine Model：D6114zg2b
- Rated Power：128kw
- Boom Length：10-40m
- Transport Package：Nude
- Specification：722kn. m
- Trademark：SINOMADA
- Origin：China
- HS Code：84295100
- Production Capacity：100units,Year
Description
QUY35A General specifications
Max. rated lifting-load
t
35
Boom length
m
10-40
(Boom + jib) max. length
m
34+12.2
Boom luffing angle
degree
30-80
Hoisting rope speed
m/min.
31-62
Lowering rope speed
m/min.
31-62
Luffing up speed
m/min.
63
Luffing down speed
m/min.
63
Slewing speed
rpm
3.7*
Walking speed
km/h
1.4
Gradeability
%
40
Load moment
t·m
125
Brand & Model of Diesel engine
Shanghai DieselD6114ZG2B
Rated output of diesel engine
kW/rpm
128/2000
Mass of counterweight
t
12.1
Mass of crane (with basic boom)
t
36
Average ground pressure
MPa
0.053
Main hoisting sheave multiple
7
Shipment dimensions of main body(LxWxH)
m
6.35x3.96x3.02
