75 Ton Hydraulic Crawler Crane Quy75
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service:1 Year
- Warranty:1 Year
- Certification:GS, RoHS, CE, ISO9001
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
Base Info
- Model NO.:QUY75
- Shaft Number:3
- Crane Jib:Five-Arm
- Type:Straight Arm
- Lifting Capacity:75ton
- Max Loading Moment:280t.M
- Boom Length:13~58m
- Fixed Jib Length:9~18m
- Max Slewing Speed:2.4r,Min
- Max Travelling Speed:1.2km,H
- Grade Ability:30%
- Engine Power:200kw
- Max Mass of Single Unit in Travel:39ton
- Dimension:12.6*3.32*3.23m
- Transport Package:Suitable for Ocean Shipment
- Specification:Exporting standard
- Origin:Xuzhou, China
- HS Code:87051091
- Production Capacity:500sets,Months
Description
Max. rated lifting capacityBasic boom t 75 Fixed jib t 6.5 Max. load moment t. m 280 Main boom length m 13-58 Main boom Luffing angle ° -3-80° Fixed jib length m 9-18 Winch max. single line speed( no load, at 5th layer) m/min 120 Boom luffing gear max. single line speed( at 1th layer) m/min 57 Max. swing speed r/min 2.4 Max. travel speed km/h 1.2 Max. grade-ability % 30 Mean ground pressure MPa 0.087 Engine output power kW 200 Gross vehicle mass (including main hook block and 13m boom) t 61 Max. weight of single unit in travel configuration t 39 Max. dimension of single unit in travel configuration (L× W× H) m 12.6× 3.32× 3.23

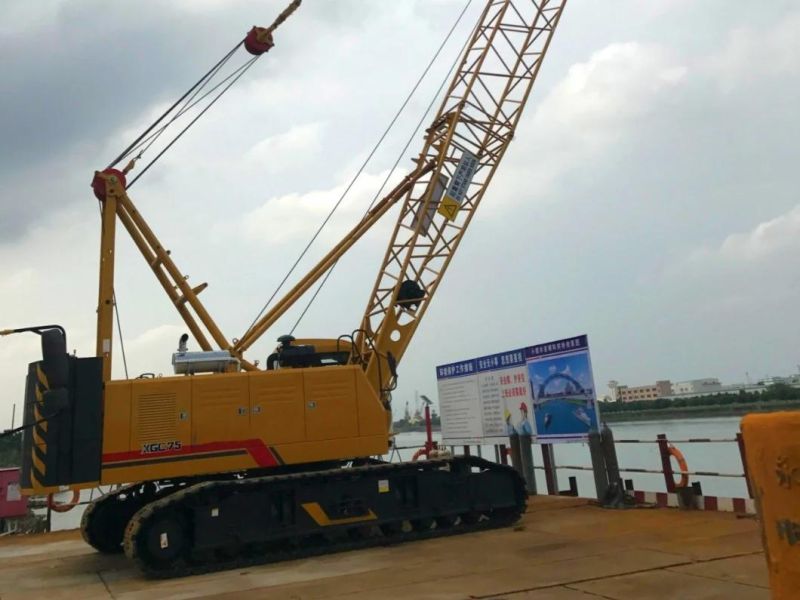

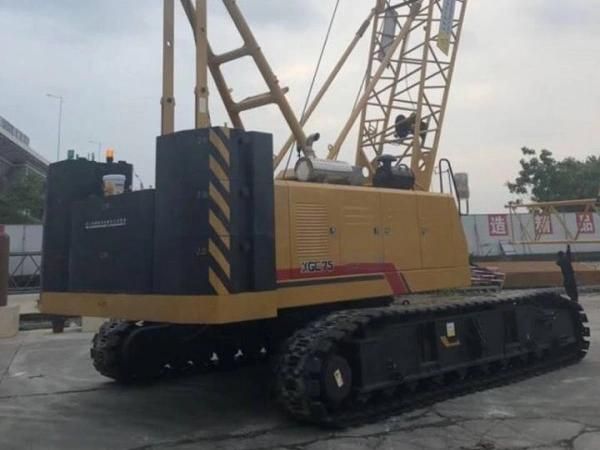

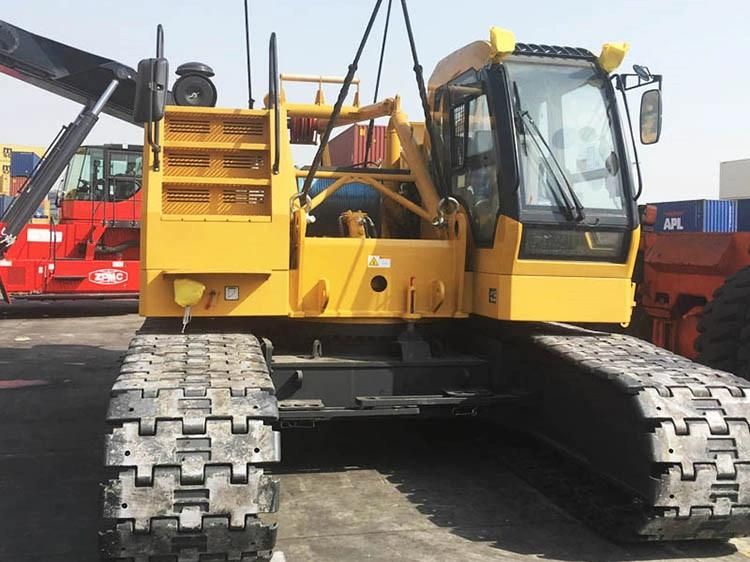

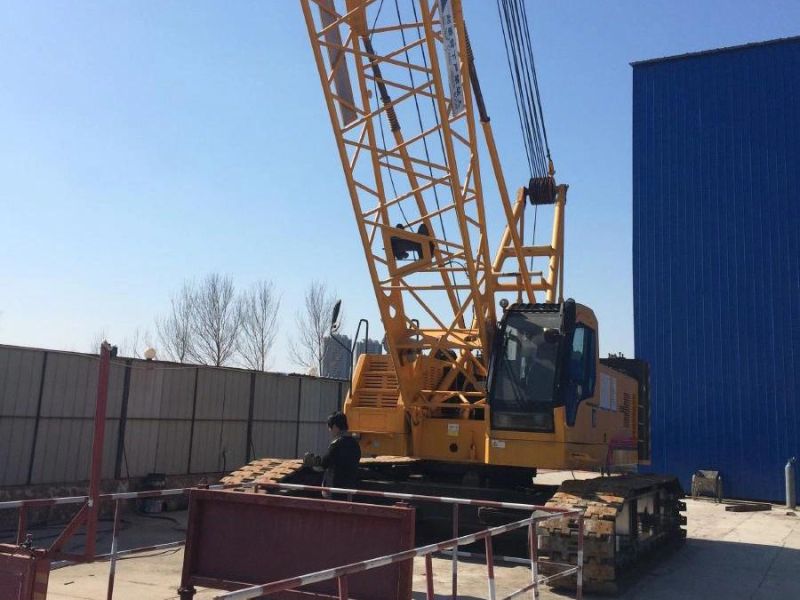

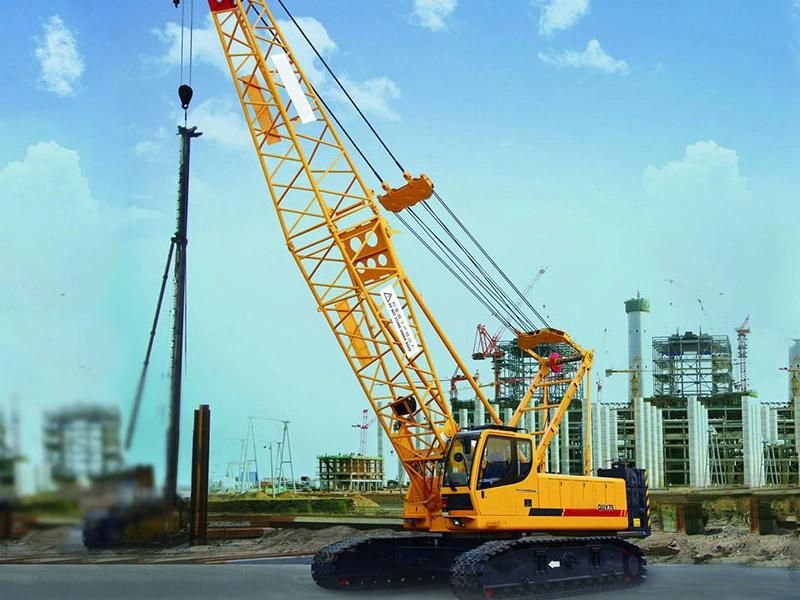

Pictures
