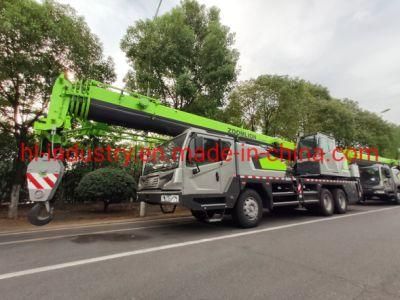

Zoomlion Ztc300V532 30ton Mobile Crane Telescopic Boom Truck Crane Truck Mounted Crane with Stock Promotion

Anhui Heavy and Light Industries International Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：Ztc300v532
  • Shaft Number：4
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Max. Rated Lifting Capacity：30000tkg
  • Max. Load Moment of Basic Boom：990tkn.M
  • Transport Package：Nude Package
  • Specification：12600*2500*3450
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：8705109100
  • Production Capacity：50000pieces,Year

Description

Overview Product Description

Working performanceMax. rated lifting capacitykg30000 Max. load moment of basic boomkN.m990 Max. load moment of main boom(fully extended)kN.m624 Max. lifting height of main boomm42.1The parameters do not include deflection of main boom and jibMax. lifting height of jibm50Working speeds              Max. hoist rope speed(Main winch)m/min120At the 4th layerMax. hoist rope speed(Auxiliary winch)m/min120At the 4th layerBoom derricking up times25 Boom telescoping out times84 Slewing speedr/min

0 - 2.7

 Driving    parametersMax. driving speedkm/h90 Max. gradeability%42 Min turning diameterm≤20 Min. ground clearancemm260 Oil consumption per hundred kilometersL28 MassDeadweight in driving conditionkg32510 Complete vehicle kerb masskg32389 Front axle loadkg6610 Rear axle loadkg25900 DimensionsOverall dimensions(L×W×H)mm13150×2500×3450 Longitudinal distance between outriggersm5.4 Transversal distance between outriggersmFully extended: 6.20m  Intermediately extended: 4.25m Tail slewing radiusmm3265 Main boom lengthm10.7 - 42.0 Boom angle°-2 - 80 jib lengthm8.0 Offset°0/15/30 Company Profile


Our Advantages



FAQ1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
