Lifting Machinery New Original Manufacturer 70 Ton Rough Terrain Crane Rt70e
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Yes
- Warranty：One Year
- Certification：GS, RoHS, CE, ISO9001, ISO9001: 2000
- Condition：New
- Maximum Lifting Height：43.3 M
- Maximum Lifting Weight：70 Tons
Base Info
- Model NO.：RT70E
- Shaft Number：2
- Crane Jib：Five-Arm
- Type：Straight Arm
- Color：Green
- Application：Construction Usage
- Max. Load Moment of Basic Boom：2033 Kn.M
- Max. Lifting Height of Main Boom：43.3 M
- Engine：Weichai
- Rated Power：276kw
- Max. Driving Speed：75km,H
- Deadweight in Driving Condition：49065 Kg
- Span：6 M
- Transport Package：Nude, Suitable for Shiping
- Specification：ISO CE GOST
- Trademark：ORIEMAC
- Origin：Hunan, China
- HS Code：84269100
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. RT70E Shaft Number 2 Crane Jib Five-Arm Type Straight Arm Color Green Application Construction Usage Max. Load Moment of Basic Boom 2033 Kn.M Max. Lifting Height of Main Boom 43.3 M Engine Weichai Rated Power 276kw Max. Driving Speed 75km/H Deadweight in Driving Condition 49065 Kg Span 6 M Transport Package Nude, Suitable for Shiping Specification ISO CE GOST Trademark ORIEMAC Origin Hunan, China HS Code 84269100 Production Capacity 100 Sets/MonthProduct Description

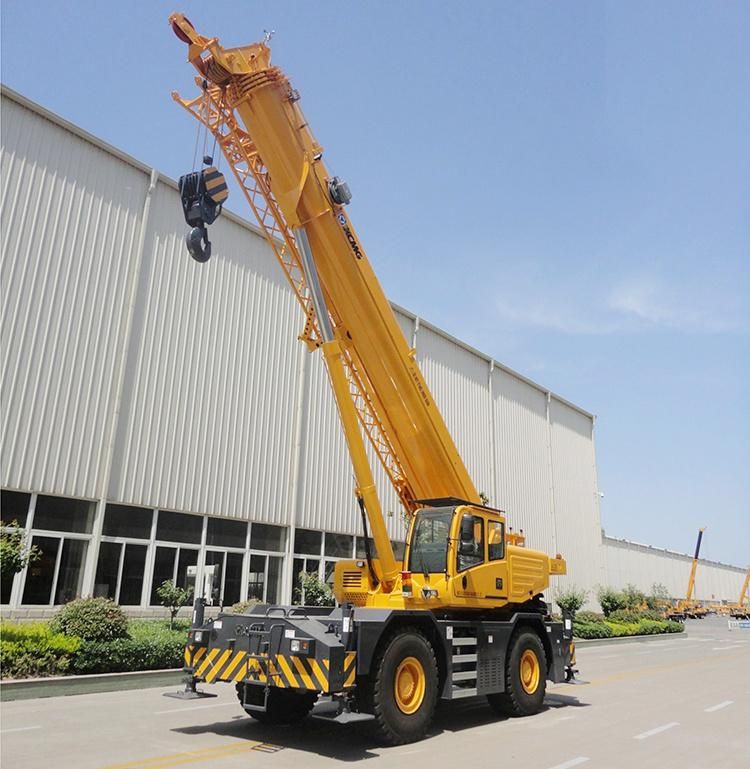

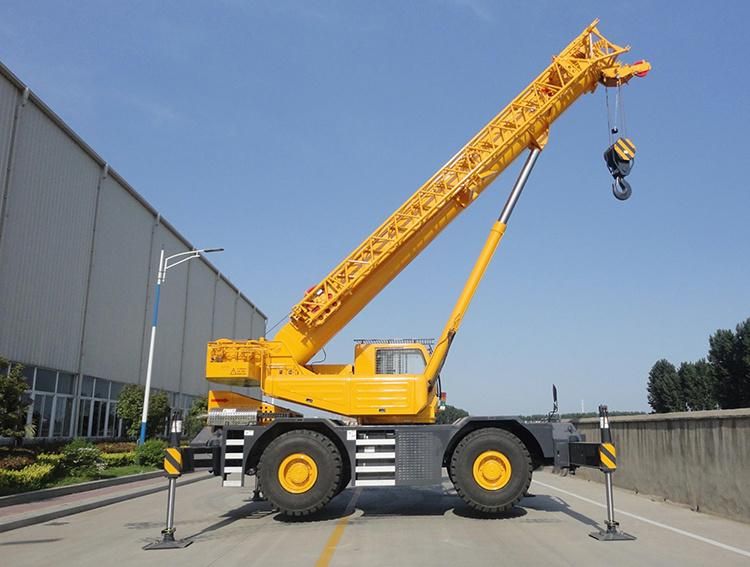

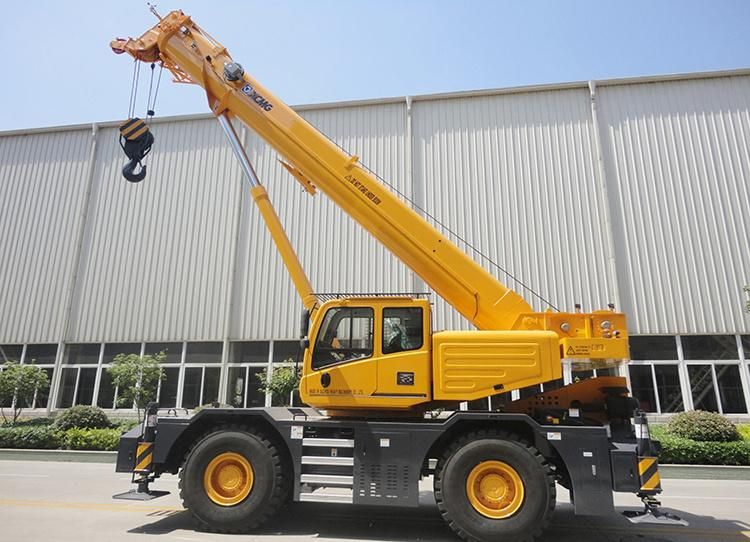

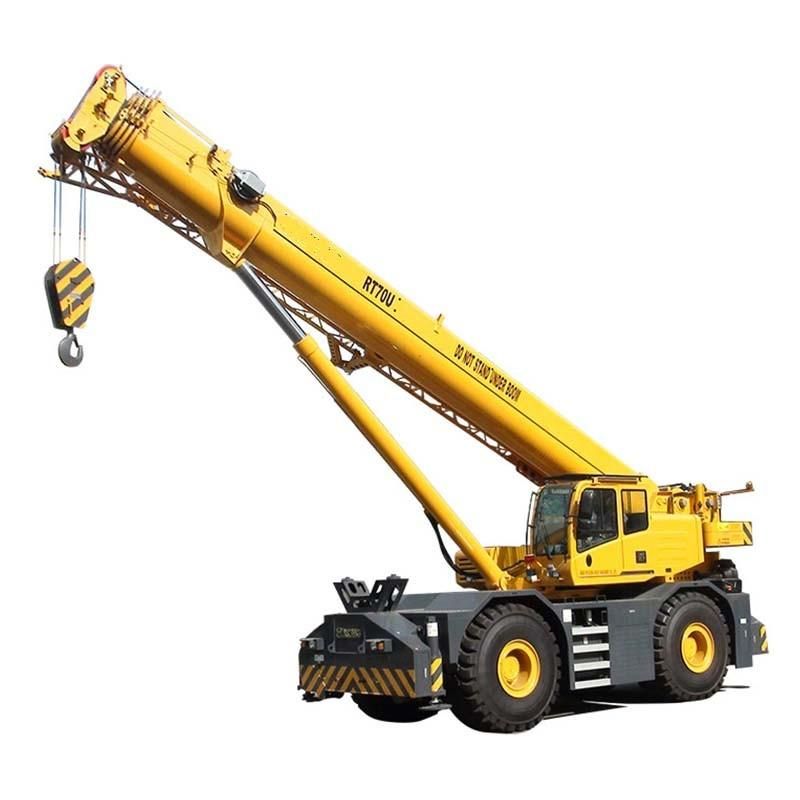

Lifting Machinery New Original Manufacturer 70 Ton Rough Terrain Crane RT70E
Rough terrain crane 70 ton RT70E.
Rough terrain crane 70 ton RT70E is suitable for lifting operation in oilfields, mines, road and bridge construction, etc.
1. Energy-saving and environment friendly
* Specialized energy-saving hydraulic system.
* The torque converter with lockout function has features of large torque at low speeds and high efficiency at high speeds.
* Elevating control system for freefall, without additional power needed.
2. High mobility and efficiency
* Two driving types of 4×2 and 4×4 are adopted with forwards and backwards driving function.
* Four steering modes are adopted , and the min. turning radius is 6.1m with better job site adaptability.
3. Powerful lifting capacity
* Double-cylinder plus ropes telescoping system, stable and reliable
* 5-section boom of 43.2m and jib of 17.5m with wide operation range.
Main Specifications
| Project | Unit | Parameter |
| Length of Entire Vehicle | (mm) | 13135 |
| Width of Entire Vehicle | (mm) | 3180 |
| Height of Entire Vehicle | (mm) | 3750 |
| Wheel Base | (mm) | 4000 |
| Wheel Track | (mm) | 2400 |
| Weight Parameters | ||
| Gross Vehicle Weight When Driving | (kg) | 49065 |
| Axle Load | (kg) | (Front Axle)25032/(Rear Axle)24033 |
| Kinetic Paremeter | ||
| Engine Type | - | QSB6.7 |
| Engine Rated Power | (kw/(r/min)) | 194 |
| Engine Max Torque | (N.m/(r/min)) | 987 |
| Driving Parameters | ||
| Max Travel Speed | (km/h) | 25 |
| Min Travel Speed | (km/h) | 2 |
| Swerve | ||
| Min Turning Radius | (m) | 12.2 |
| Head Min. Turning Diameter | (m) | - |
| Max Gradeability | (%) | 65 |
| Min. Ground Clearance of Machine | (mm) | 467 |
| Approach Angle | 20 | |
| Departure Angle | 17.5 | |
| Braking Distance | (m) | 9 |
| Fuel Consumption per 100kms | (L) | - |
| Major Performance Parameters | ||
| Max. Rated Lifting Capacity | (t) | 70 |
| Min. Rated Range | (m) | 2.5 |
| Max. Load Moment of Basic Jib | (kN.m) | 2033 |
| Radius of Gyration of Turntable Tail | (mm) | 4220 |
| Outrigger | ||
| Longitudinal | (m) | 7.3 |
| Horizontal | (m) | 7.2/5.6 |
| Max. Lifting Height | ||
| Basic Boom | (m) | 11.3 |
| Longest Main Boom | (m) | 43.3 |
| Longest Main Boom + Auxiliary Boom | (m) | 58.1 |
| Boom Length of Crane | ||
| Basic Boom | (m) | 11.32 |
| Longest Main Boom | (m) | 43.2 |
| Longest Main Boom + Auxiliary Boom | (m) | 60.7 |

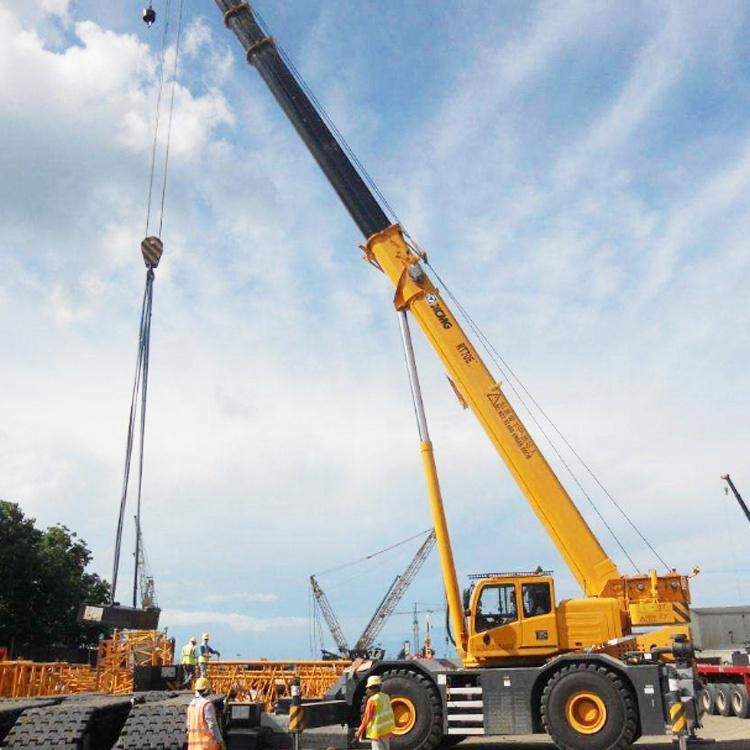

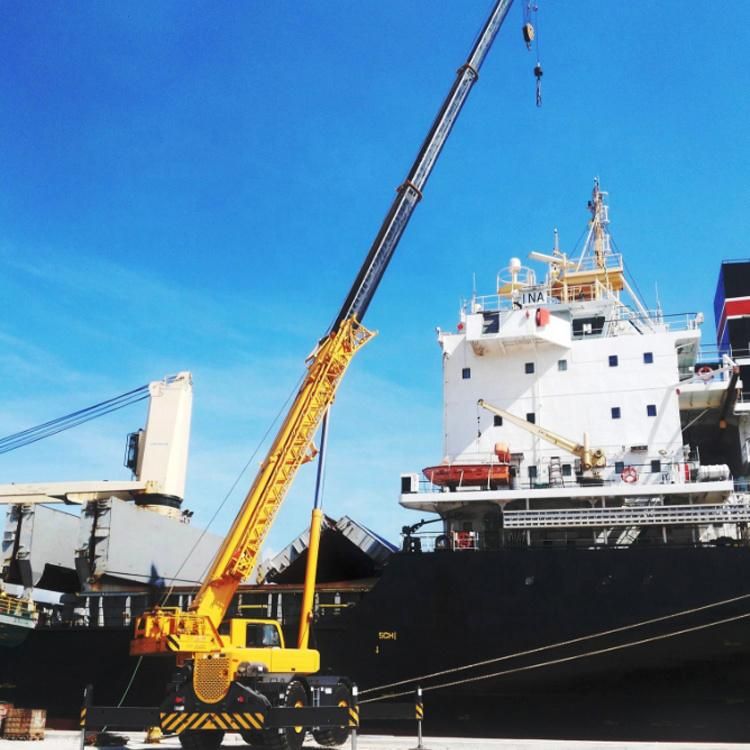

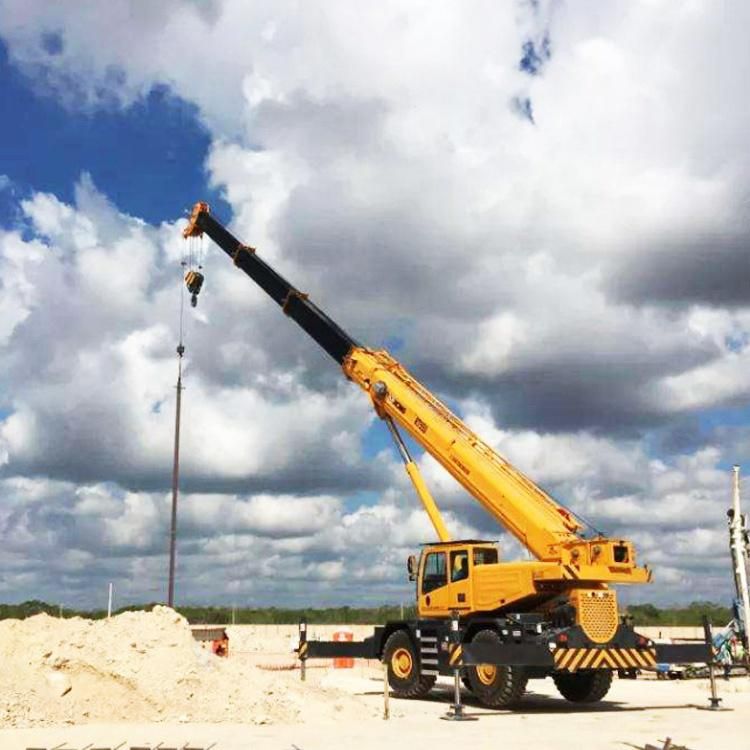

Construction Case Picture
