Height Adjustable Manual Portable Small Gantry Crane
Lyfoo Industry Co., Ltd.- After-sales Service：24 Hours Online Service
- Warranty：12 Months After Installation
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Weight：5t
- Maximum Lifting Height：9m
Base Info
- Model NO.：MH1
- Operation Form：Manual+Electric Control
- Type：Common Gantry Crane
- Main Girder Form：Single Girder
- Capacity：500kg
- Feature：360 Rotating
- Mobile Way：Wheel
- Advantage：Height Adjustable
- Application：Especially Tradtional Crane Not Availble
- Special Point：Extremely Low Clearance
- Transport Package：Strong Wooden Box
- Specification：CE
- Trademark：LYFOOCRANE
- Origin：Beijing, China
- HS Code：84253190
- Production Capacity：10000
Description
Overview
Product Description
Beam Height Adjusted

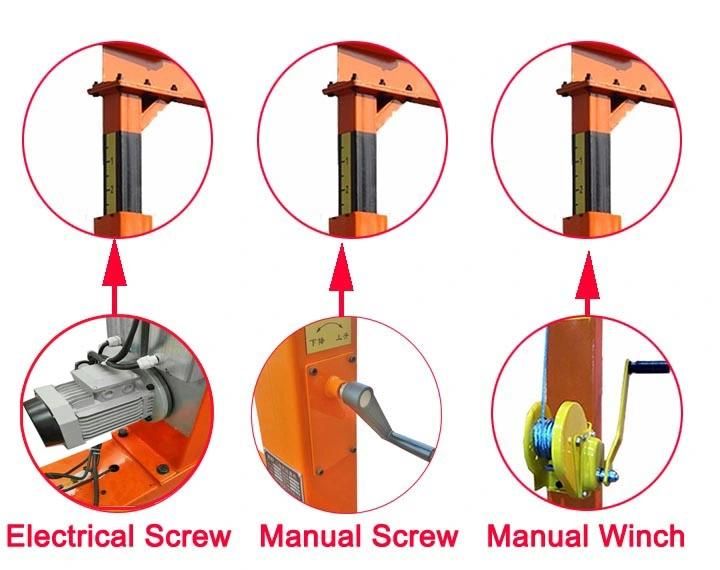

The beam height can be rasied to different height. It is very useful when certain area has some low roof. As a result, you do not have to buy different cranes or tools. We provide 3 type of height adjusted gantry: Lever raising; Winch raising and Turbine raising model.
1. Lever raise model:
Two(2) levers are installed on both side, and it is more compact and convinient to raise the beam. It is most popular among our clients.
2.Winch raise model:
By using 2 sets of winch on both side of the leg, the beam can be raised by different height accoring to the requirement.
3. Turbine raise model:
This is a patend designing from our company, and it is the only designing among our competitors all around the world. The raising is precisely by mm and can be raised to any point according to the site situation. In many cases, the user can raise the beam as close as possible to the roof, then, give a maximum of lift height than any other lifting equippment.

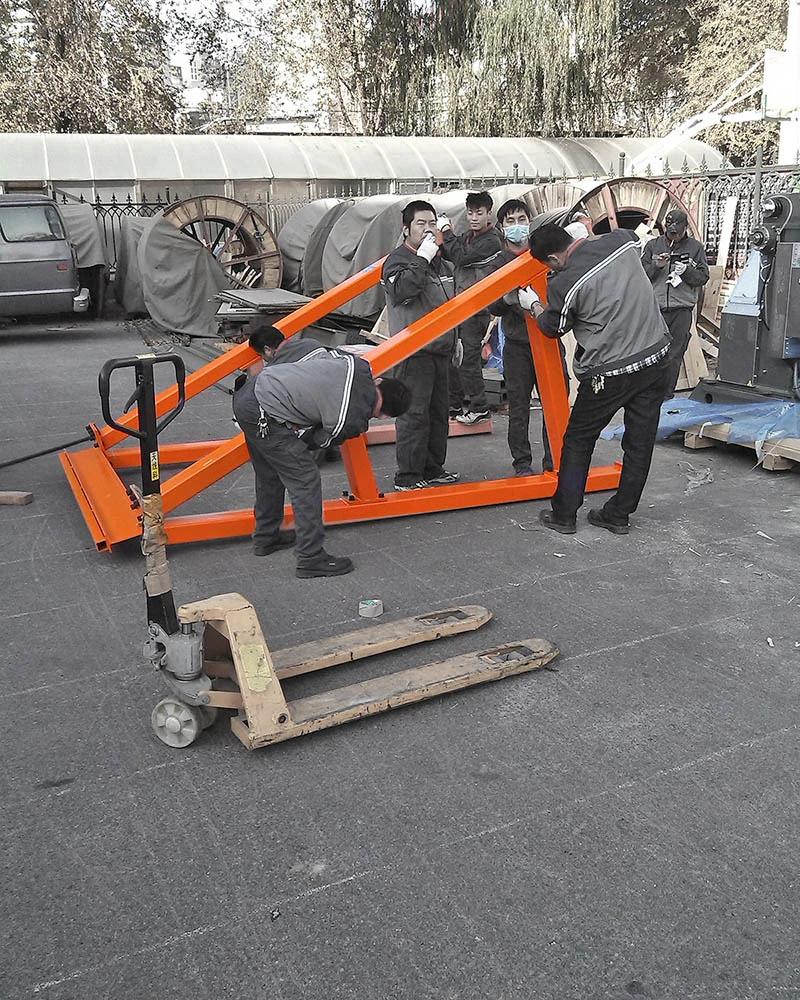

Assemble and Disamemble
1. Bolt connection
All loose parts are connected by high-strength bolts. 2 worker can assemble them at site easily.
2. Nut embeded design
Ground beam has a nut embeded designing. This makes the assemble work very simple. All bolts and nuts are matched perfectly.
3. Span alternative
Clinet can order differnet span of beams to meet the same legs. It can be assembled according to different working site.
4. Other features
Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection.
Technical Parametre
Detailed Photos
A manual winch is installed on both sides of the standing leg. When adjusting the height, the workers on both sides operate the winch at the same time, so that the standing legs can be extended synchronously, so as to increase the overall height of the gantry. Since the vertical leg has been drilled in advance, the manual winch is used to adjust the height, which can increase the overall height by 130-300mm each time.
Beam Height Adjusted
The beam height can be rasied to different height. It is very useful when certain area has some low roof. As a result, you do not have to buy different cranes or tools. We provide 3 type of height adjusted gantry: Lever raising; Winch raising and Turbine raising model.
1. Lever raise model:
Two(2) levers are installed on both side, and it is more compact and convinient to raise the beam. It is most popular among our clients.
2.Winch raise model:
By using 2 sets of winch on both side of the leg, the beam can be raised by different height accoring to the requirement.
3. Turbine raise model:
This is a patend designing from our company, and it is the only designing among our competitors all around the world. The raising is precisely by mm and can be raised to any point according to the site situation. In many cases, the user can raise the beam as close as possible to the roof, then, give a maximum of lift height than any other lifting equippment.
Assemble and Disamemble
1. Bolt connection
All loose parts are connected by high-strength bolts. 2 worker can assemble them at site easily.
2. Nut embeded design
Ground beam has a nut embeded designing. This makes the assemble work very simple. All bolts and nuts are matched perfectly.
3. Span alternative
Clinet can order differnet span of beams to meet the same legs. It can be assembled according to different working site.
4. Other features
Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection.
Technical Parametre
| Type | Capacity(t) | Height(m) | Span(m) | Beam(mm) |
| MH1-0.5t | 0.5 | 3-9m | 3-9m | 140 |
| MH1-1t | 1 | 3-9m | 3-9m | 160 |
| MH1-2t | 2 | 3-9m | 3-9m | 160 |
| MH1-3t | 3 | 3-9m | 3-9m | 200 |
| MH1-5t | 5 | 3-9m | 3-9m | 250 |
