• Model NO.：XCT50-M
• Crane Jib：4,5 Sections
• Type：Telescopic Boom
• Rated Power：247,2200 Kw,Rpm
• Overall Weight：50000kg
• Max. Output Torque：1350,1400n.M,(R,Min)
• Max. Travel Speed：80km,H
• Span：6.9m
• Transport Package：Roro,Bulk,Container
• Specification：13790x2800X3675mm
• Origin：China
• HS Code：8705109100
• Production Capacity：500 Units,Year

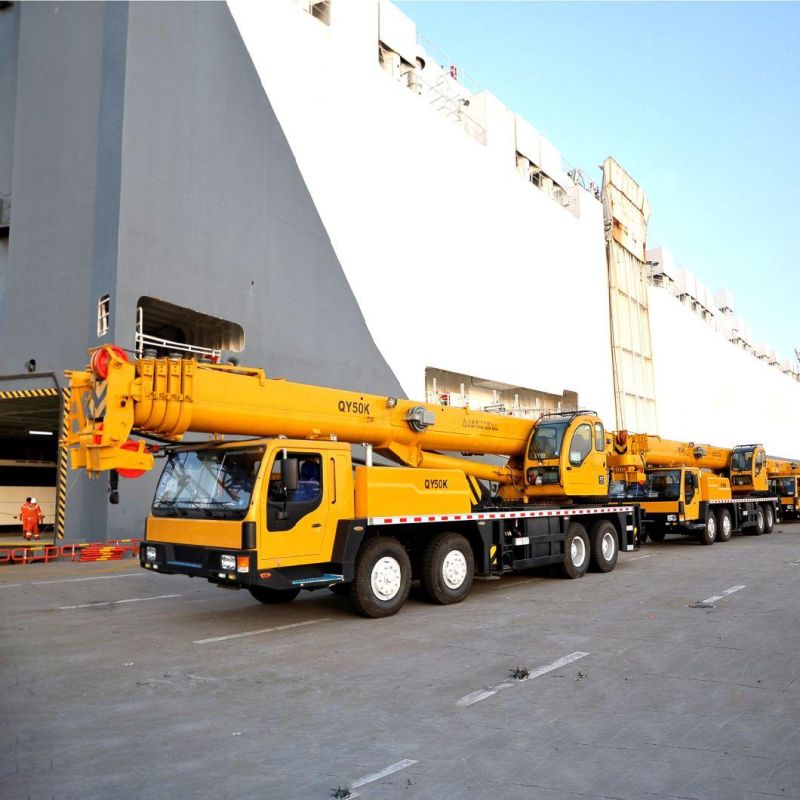

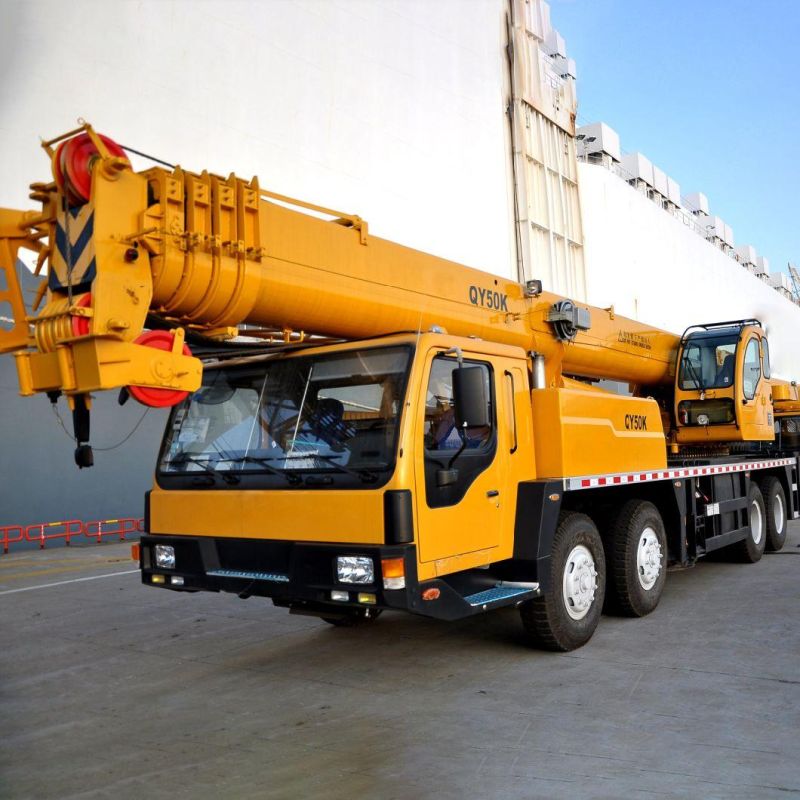

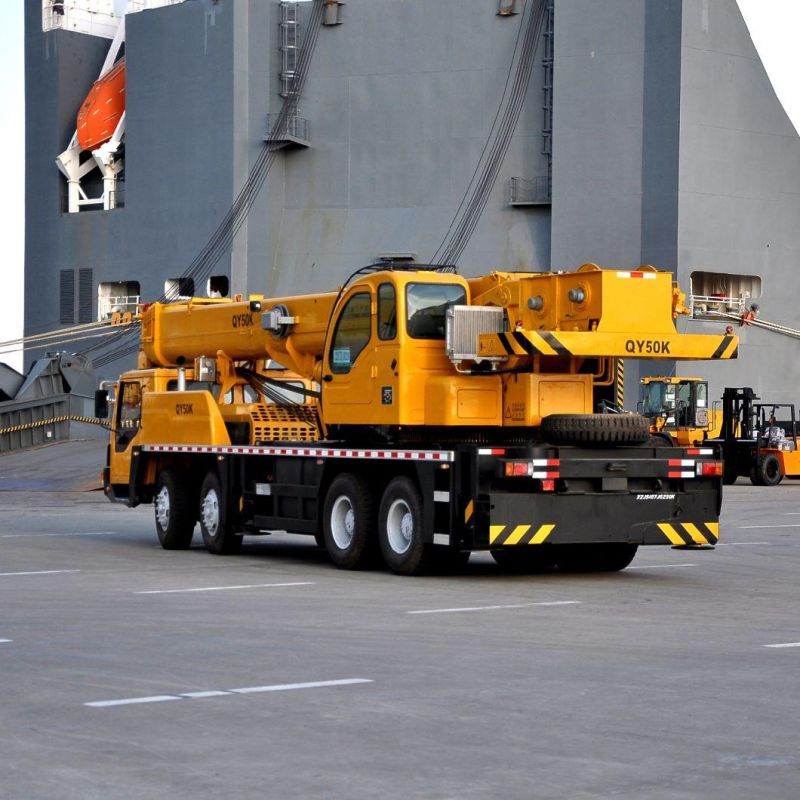

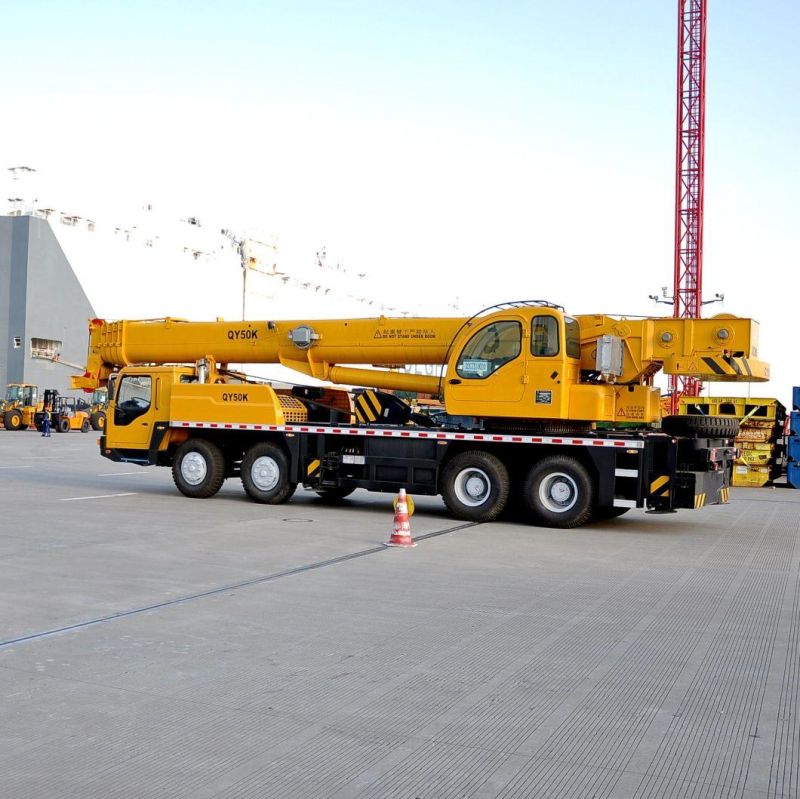

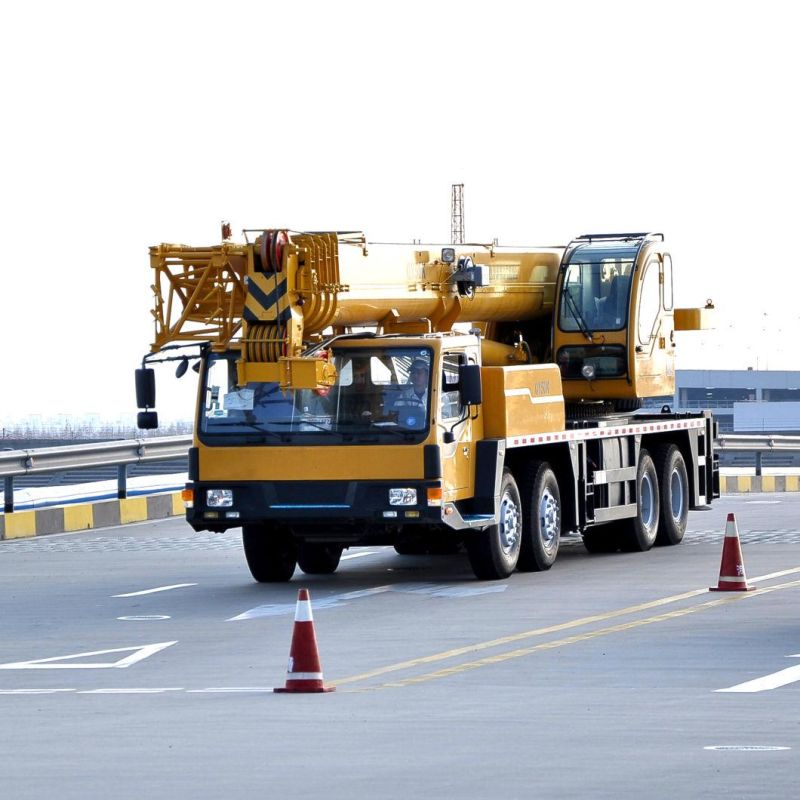

ContactProduct ParametersDimensionsUnitParametersOverall lengthMm13790Overall widthMm2800Overall heightMm3675Weight  Dead weight in travel stateKg42490Front axle loadKg16490Rear axle loadKg26000Power  Engine model WD615.334Engine rated outputKw(r/min)247/2200Engine rated torqueN.m(r/min)1350/1400Travel  Max.travel speedKm/h80Min. turning diameterM24Min. ground clearanceMm327Approach angle.21Departure angle.15Max. gradeability%40Fuel consumption of per 100kmL≈42Lifting performance  Max. total rated lifting loadT50Min. rated working radiusM3Turning radius at swing table tailMm3500Base boom max. load momentKn.m1838Base boomM11.4Full-extend boomM43.3Full-extend boom+Jibm59.3Outrigger longitudinal distance spanM5.91Outrigger lateral distance spanM6.9Working speed  Boom elevating timeS88Boom telescoping timeS180Max. slewing speedr/min2Main winch max. speed(single line)m/min130Auxiliary winch max.speed(single line)m/min130Detailed Photos
