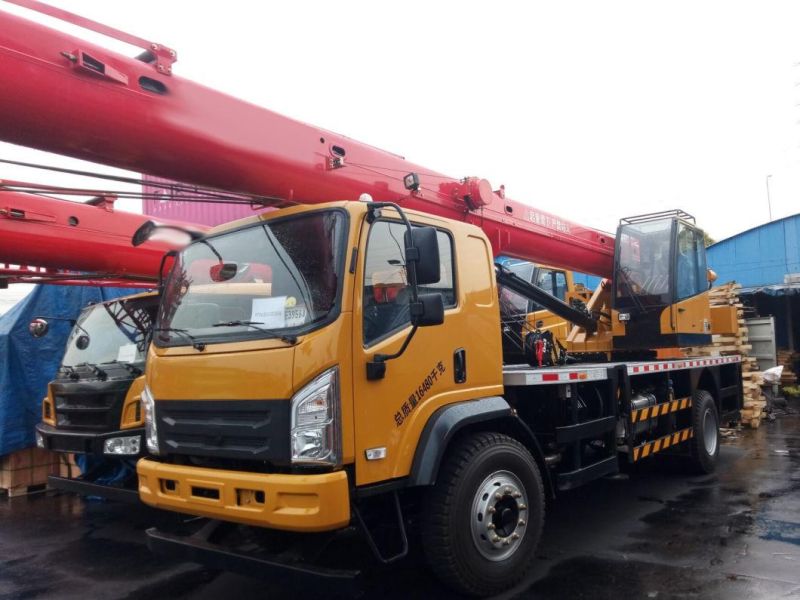

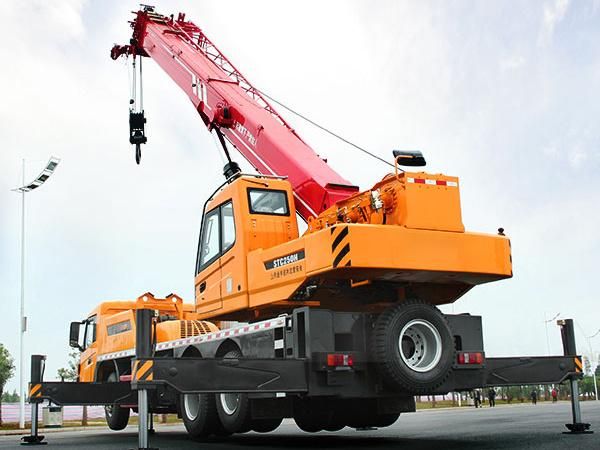

• Model NO.：STC250S
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Folding
• Overall Weight：30000kg
• Front Axle Load：6500kg
• Rear Axle Load：23500kg
• Max. Traveling Speed：80km,H
• Min. Ground Clearance：220mm
• Swing Speed：0~2 R,Min
• Specification：12750*2500*3550mm
• Trademark：Top Brand
• Origin：China
• HS Code：8501109190
• Production Capacity：200

Capacity

Max. lifting capacity

25t

Dimensions

Overall length

12750mm

Overall width

2500mm

Overall height

3550mm

Axles

3

Axle distance-1,2

4325mm

Axle distance-2,3

1350mm

Weight

Overall weight

30000kg

Front axle load

6500kg

Rear axle load

23500kg

Engine

Rated power

213kW/2100rpm

Rated torque

1050N·m/1200~1400rpm

Emission standard

Euro III

Traveling

Max. traveling speed

80 km/h

Min.turning radius

10 m

Min.turning radius of boom head

12 m

Drive train

6×4

Min. ground clearance

220mm

Approach angle

17 °

Departure angle

12 °

Max. gradeability

38%

Fuel consumption per 100km

37L

Main Performance

Temperature range

- 30 °C~ + 60 °C

Min.lifting radius

Tail swing radius of superstructure

3.37m

Boom section

4

Boom shape

U -shaped

Max. lifting moment -Base boom

962kN·m

Max. lifting moment -Full -extend boom

544kN·m

Max. lifting moment- Full -extend boom+jib

341kN·m

Length -Base boom

10.65m

Length- Full -extend boom

33.5m

Length -Full- extend boom+jib

41.5m

Outrigger span(Longitudinal/Transversal)

5. × 6.2m

Jib offset

0 ° 15 ° 30 °

Working Speed

Max. single rope lifting speed of main winch(no load)

120m/min

Max. single rope lifting speed of auxiliary winch(no load)

120m/min

Full extend/retract time of boom

70 / 50s

Full raise/lower time of boom

70 / 55s

Swing speed

0~2 r/min
