Zoomlion Heavy 75 Ton Mobile Crane Price Hydraulic Crane in Indonesia
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：114m
- Maximum Lifting Weight：70ton
Base Info
- Model NO.：ZTC700H553
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Straight Arm
- Max. Load Moment of Basic Boom：2915.5kn.M
- Max. Gradeability：46%
- Transport Package：Roro,Container,Bulk
- Specification：14950*2800*3900mm
- Trademark：SINOMADA
- Origin：China
- HS Code：84295100
- Production Capacity：100 Units, Month
Description
Working performance
1
Max. rated lifting weight × working radius
kg.m
70000×3.0
2
Max. lifting torque of basic boom
kN.m
2352
3
Max.lifting torque of longest main boom
kN.m
1098
4
Max. lifting height of longest main boom
m
44.2
5
Max. lifting height of jib
m
60.2
Dimensions
6
Outline dimensions (L×W×H)
mm
14100×2750×3750
7
Distance between outriggers (longitudinal × transversal)
mm
6000×7600
8
Main boom length (completely retracted - completely extended)
m
11.6~44
9
Jib length
m
9.5,16
10
Main boom angle of elevation
°
-2~80
11
Swing range
360°continuously
Working speed
12
Max.speed of single rope on the drum of main winch
m/min
135
13
Boom extension time
s
107
14
Boom derricking up time
s
57
15
Swing speed
r/min
0~1.8
Mass
16
Complete vehicle kerb mass
kg
44870
17
Front axle load
kg
19000
18
Rear axle load
kg
26000
Traveling
19
Max. traveling speed
km/h
75
20
Max. gradeability
%
37
21
Minimum turn radius
m
12
22
Min. ground clearance
mm
280

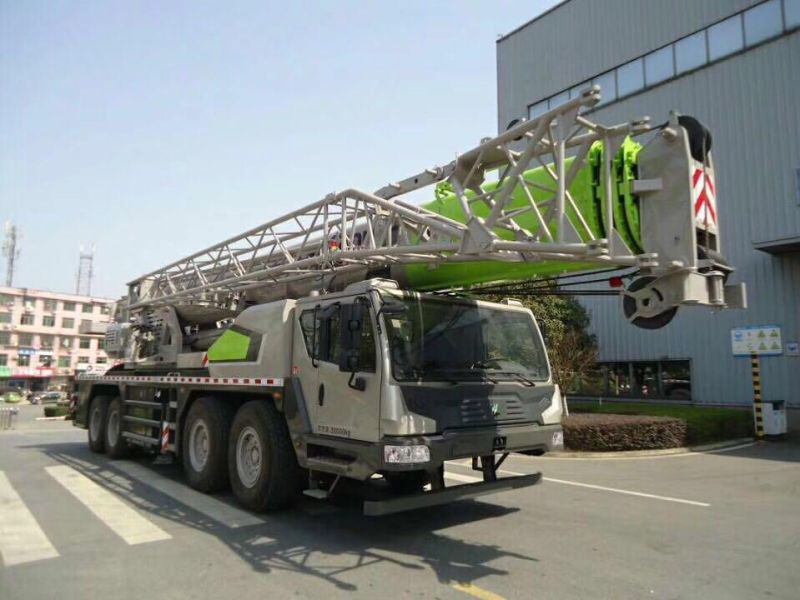

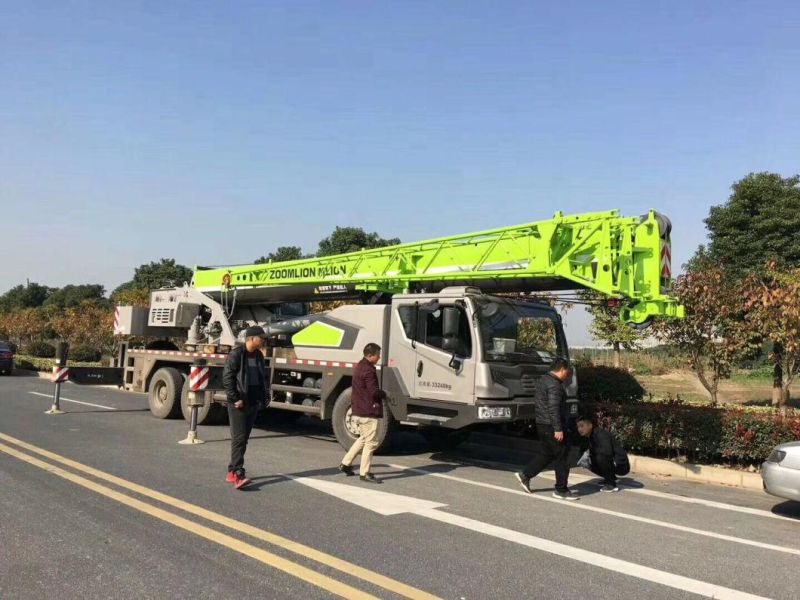

- Product Pictures
