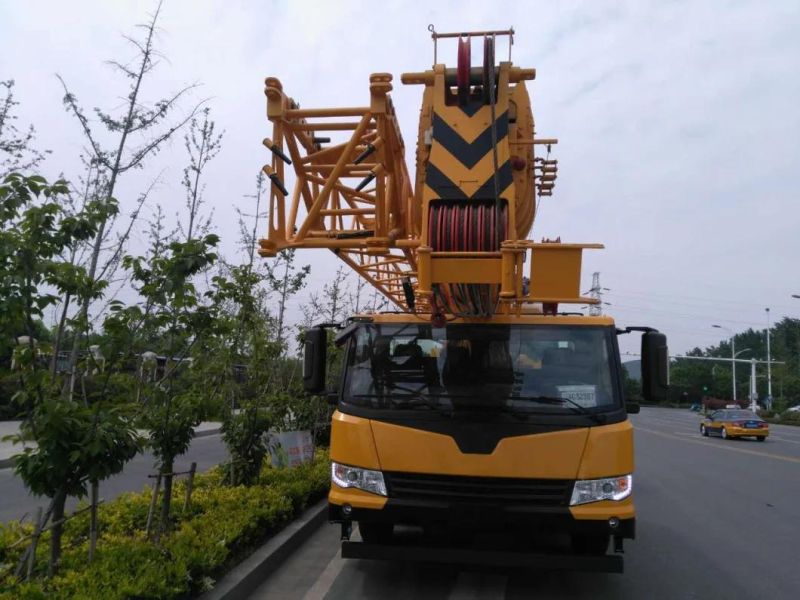

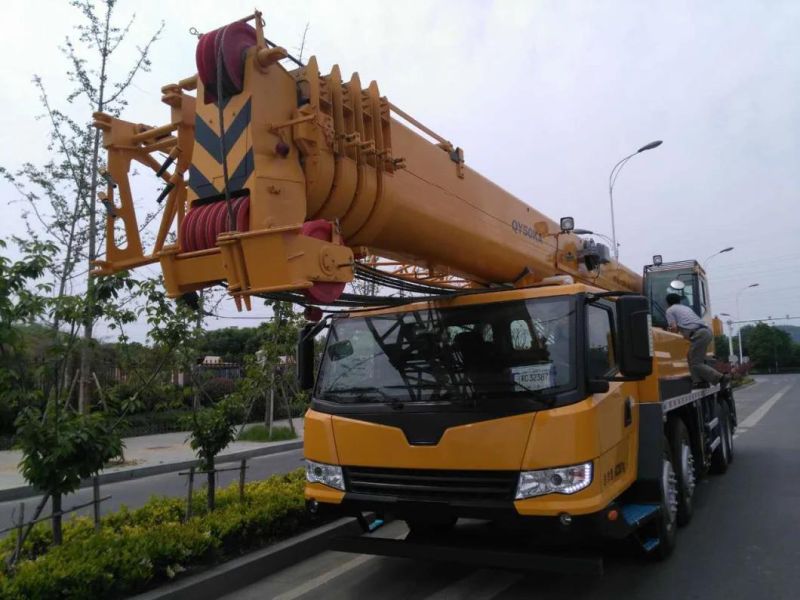

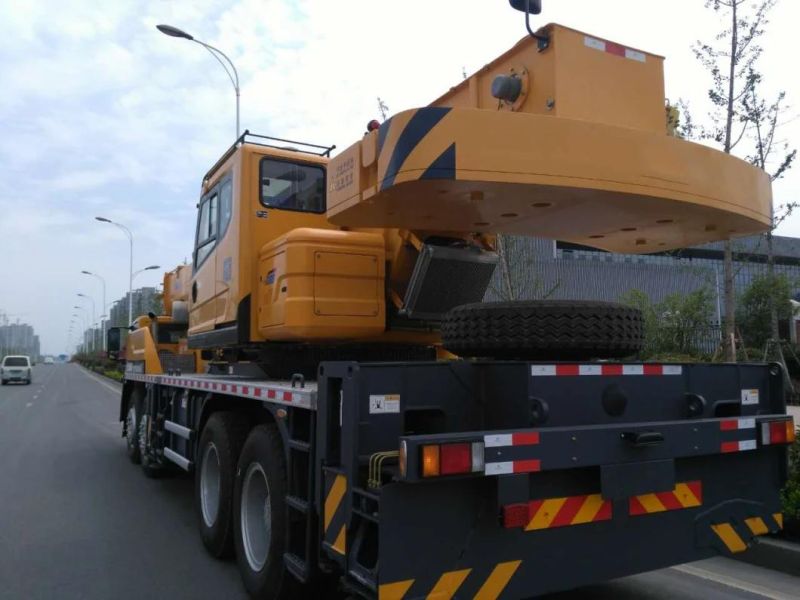

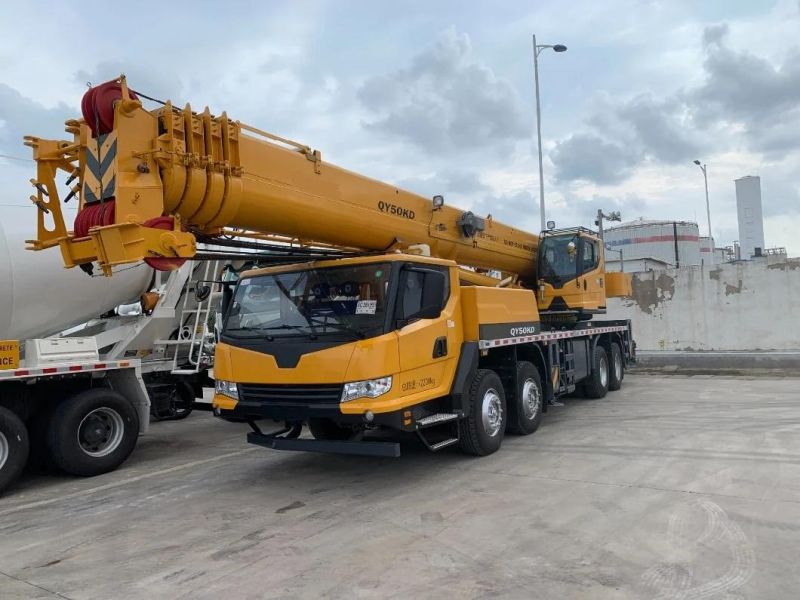

Hot Sale 50 Ton Truck Crane (QY50KD) in Philippines

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：GS, RoHS, CE, ISO9001, ISO9001: 2000
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：QY50KD
  • Shaft Number：4
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Color：Yellow
  • Max. Lifting Height：58.1m
  • Engine：D10.38-50
  • Transport Package：Suitable for Ocean Shipment
  • Specification：CE, ISO
  • Origin：Xuzhou, China
  • HS Code：8705109100
  • Production Capacity：50 Sets,Month

Description

DimensionUnitQY50KA/QY50KDOverall lengthmm13750Overall widthmm2800Overall heightmm3520Weight  Total weight in travelkg41000Front axle loadkg15000Rear axle loadkg26000Power  Engine model WD615.334(domestic III)Engine rated powerkW/(r/min)247/2200Engine rated torqueN.m/(r/min)1350/1400Travel  Max. travel speedkm/h80Min. turning diameterm24Min. ground clearancemm291Approach angle°17Departure angle°11Max. grade ability%40Fuel consumption for 100kmL45Main performance  Max. rated total lifting capacityt50Min. rated working radiusm3Turning radius at turntable tailm3.482Max. lifting torquekN.m1764Base boomm11.3Fully extended boomm42.7Fully extended boom+ jibm57.7Longitudinal outrigger spanm5.91Lateral outrigger spanm6.9Working speed  Boom luffing times88Boom full extension times180Max. swing speedr/min≥2.0Max. speed of main winch (single rope) (no load)m/min≥110Max. speed of aux. winch (single rope) (no load)m/min≥110Pictures
