• Model NO.：ZCC550H-1
• Traveling Speed：0-1.6 Km,H
• Max. Gradeability：30%
• Transport Package：Roro,Container,Nude
• Specification：12800*3300*3120 mm
• Trademark：Zoomlion
• Origin：China
• HS Code：8426491000
• Production Capacity：50units,Month

Overview Product Description

Excellent interchangeability of the components
As to the products produced in the same platform, in addition to most of the electrical and hydraulic components, majority of structural parts are
also interchangeable, such as a set of fixed jib (including fixed jib pivot section, fixed jib intermediate sections, FA-frame, front tilting-back
support of fixed jib, rear tilting-back support of fixed jib, fixed jib front anchoring rods and fixed jib rear anchoring rods), load hook, derricking
mechanism, tip boom, rear counterweight base plate and so on, so as to reduce the operating costs of the users.

High work efficiency
Series-connected multiple valve-controlled hydraulic system is applied, so that all simultaneous movements can be achieved and no deceleration
will occur during the switching of crane movements.
Single rope speed on the outmost layer of hoisting winch 1 is 132m/min.
To improve lifting efficiency, hoisting winch 1 with free-fall function is available for an option.

Product Parameters Max. lifting capacity × radiust × m55×3.7 Max. lifting capacity on fixed jibt5.5 Max. lifting capacity of luffing jibt12 Main boom lengthm13 - 52 Fixed jib lengthm6 - 15 Max. length of main boom with fixed jibt43+15 Luffing jib lengthm16m-28m Max. main boom +max. luffing jibm40mm+28mm Derricking angle.30 - 80 Fixed jib angle.10,30 Max. rope  speed
of winchesHoisting winch 1m/min125/100With optional free-fall functionHoisting winch 2125 Derricking winch80 Slewing speedrpm

0-2.1

 Traveling speedkm/h0-1.6 Max. gradeability%30With basic boom and counterweight over frontGround pressureMpa0.068 Deadweightt50.5With basic boomCrane counterweightt17.5 Overall dimensions(L × W × H)m12800×4600(3300)×3120With A-frame and main boom pivot sectionEngineModel WP6G190E26Manufacturer:Weichai Power CO, Ltd.Rated power / rotational speedkW/r/min140/1900Max. output torque /rotational speedNm/r/min830/1300Exhaust emission National Stage  IIThe distance between track center × crawler contact length × crawler widthmm2540 ×5000×760Crawler carrier retracted3840 ×5000×760Crawler carrier extended Noiselevel outside operator's cab during operation(dB)≤107 Noise level in operator's cab during operation≤85

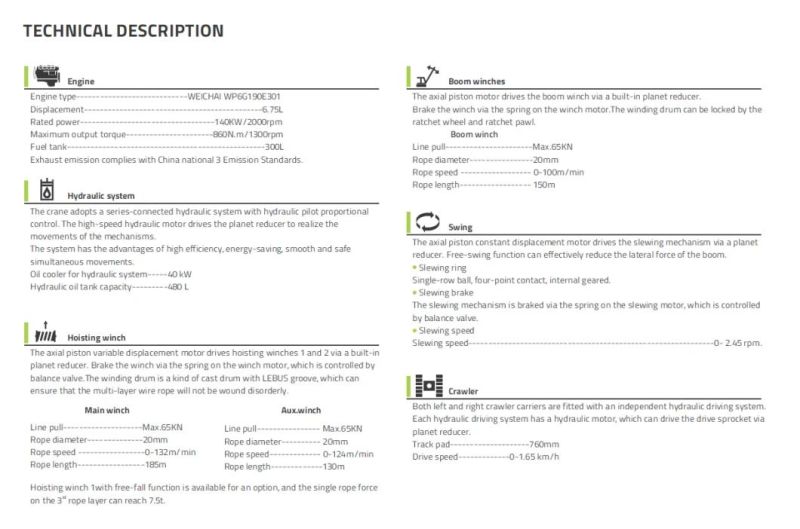

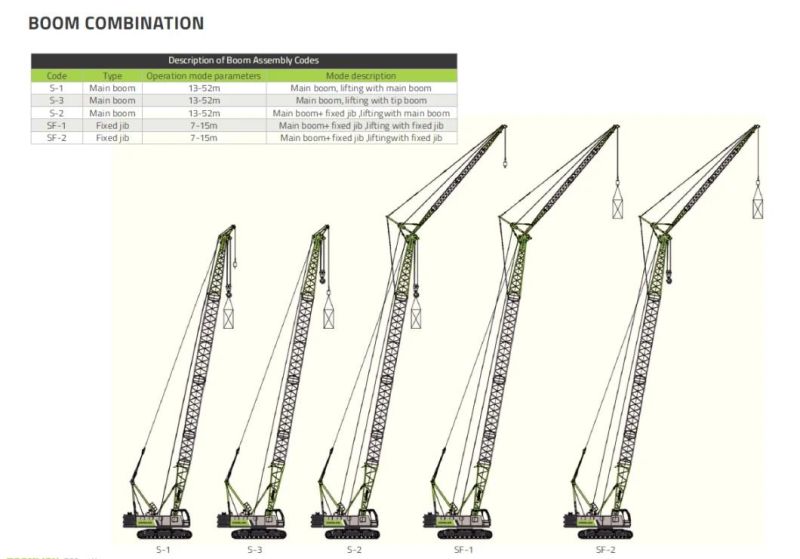

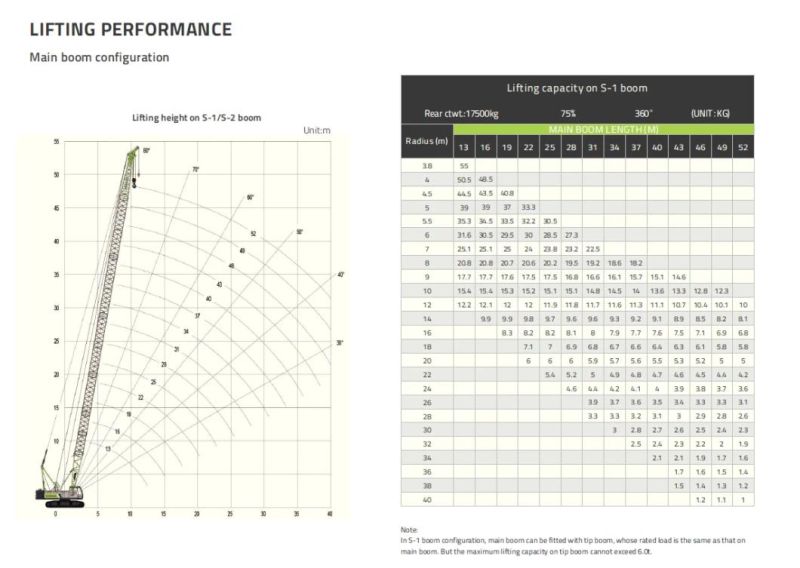

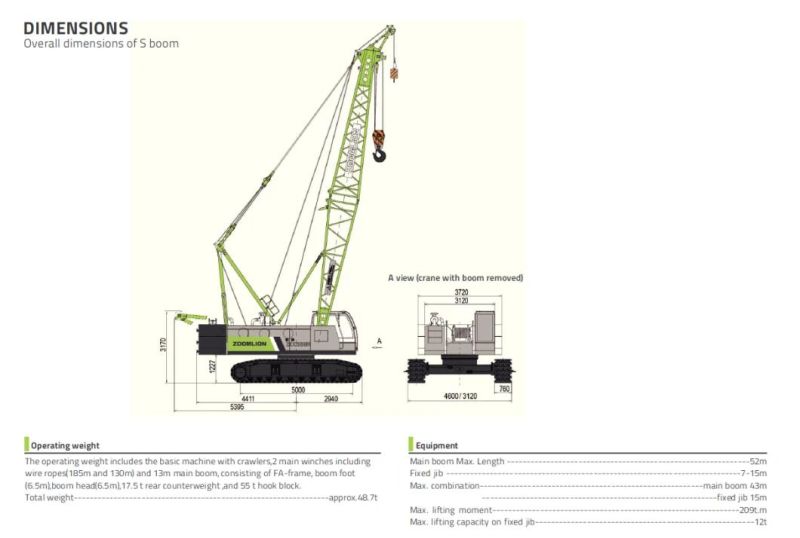

 Detailed Photos
