• Model NO.：xct100
• Shaft Number：5
• Crane Jib：Five-Arm
• Type：Straight Arm
• Wheel Base：1920+3500+1420+1505mm
• Max. Gross Vehicle Weight：55000kg
• Max. Travel Speed：90km,H
• Min. Ground Clearance：326mm
• Engine Model：Wp6g240e330
• Transport Package：Nude
• Specification：15600x3000x3870
• Trademark：Oriemac
• Origin：China
• Production Capacity：100unit,Month

Overview Product Description

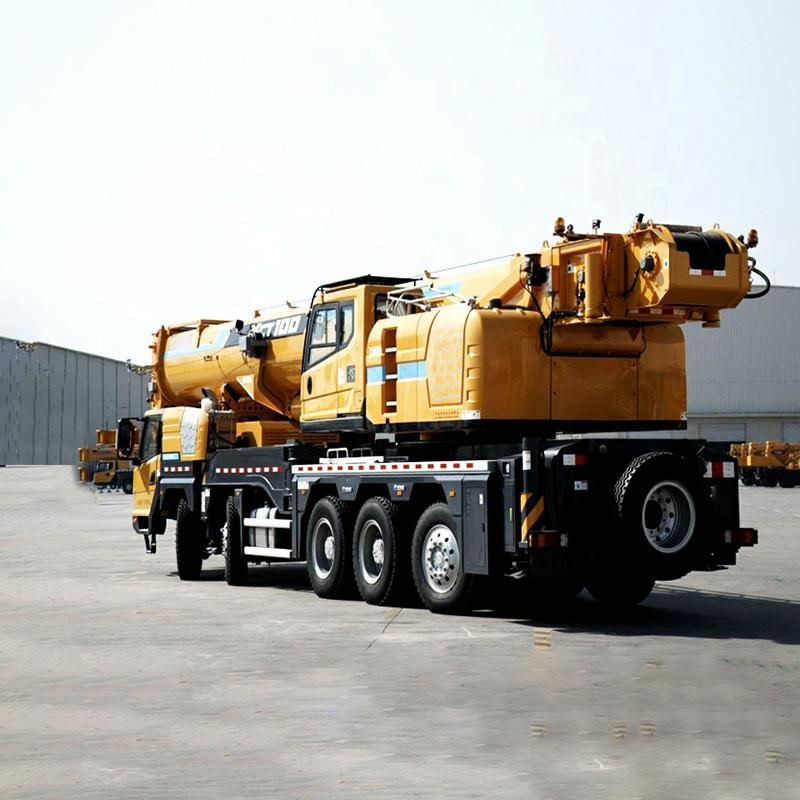

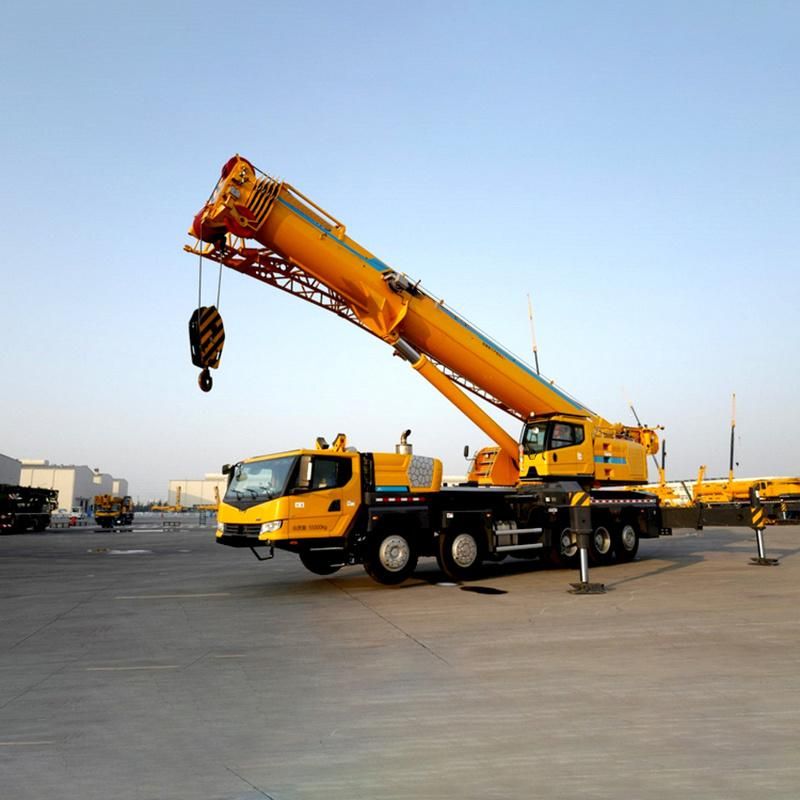

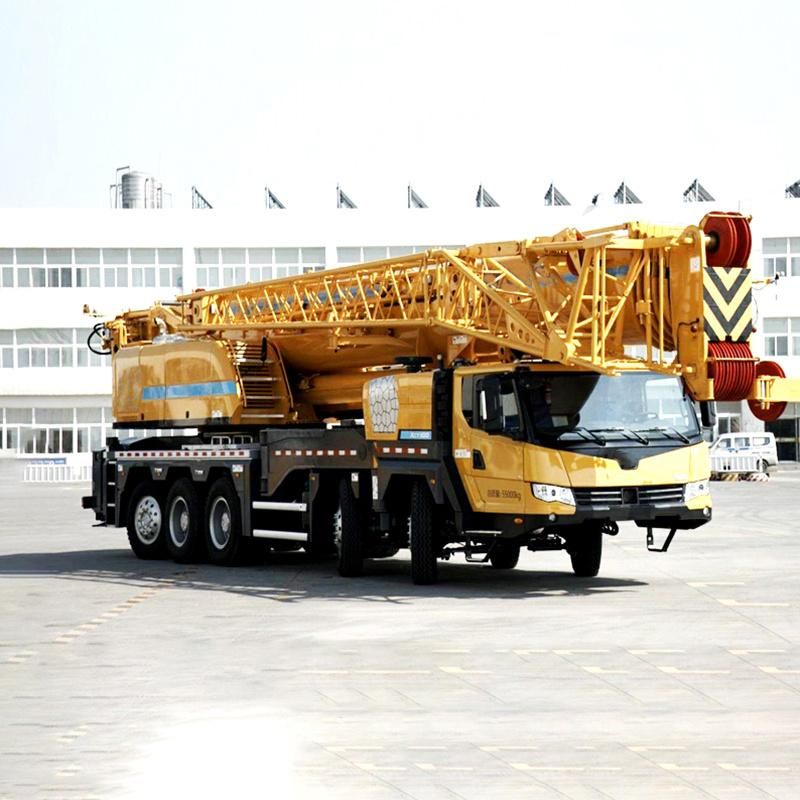

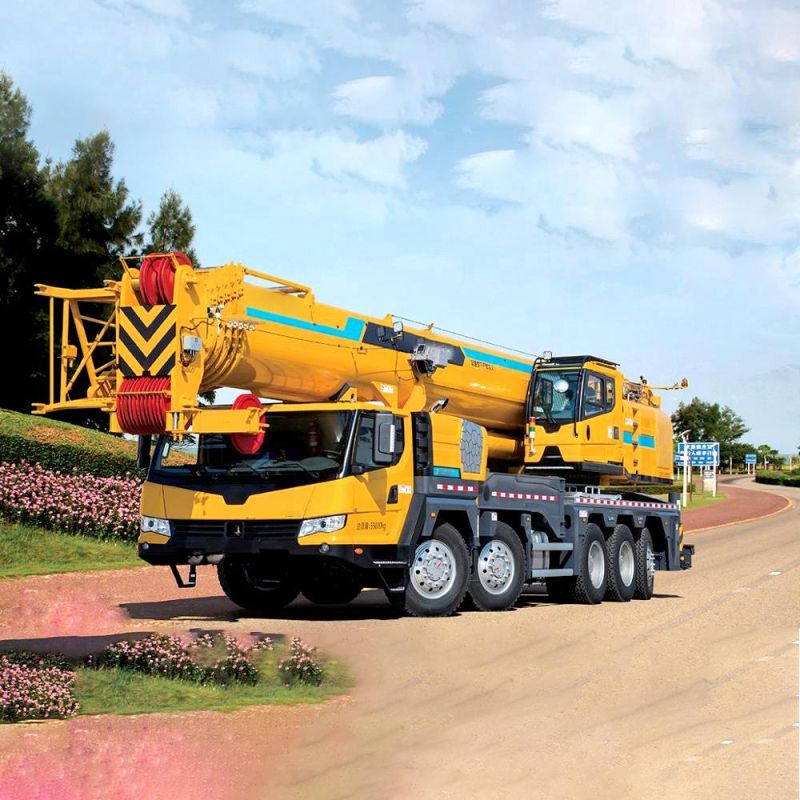

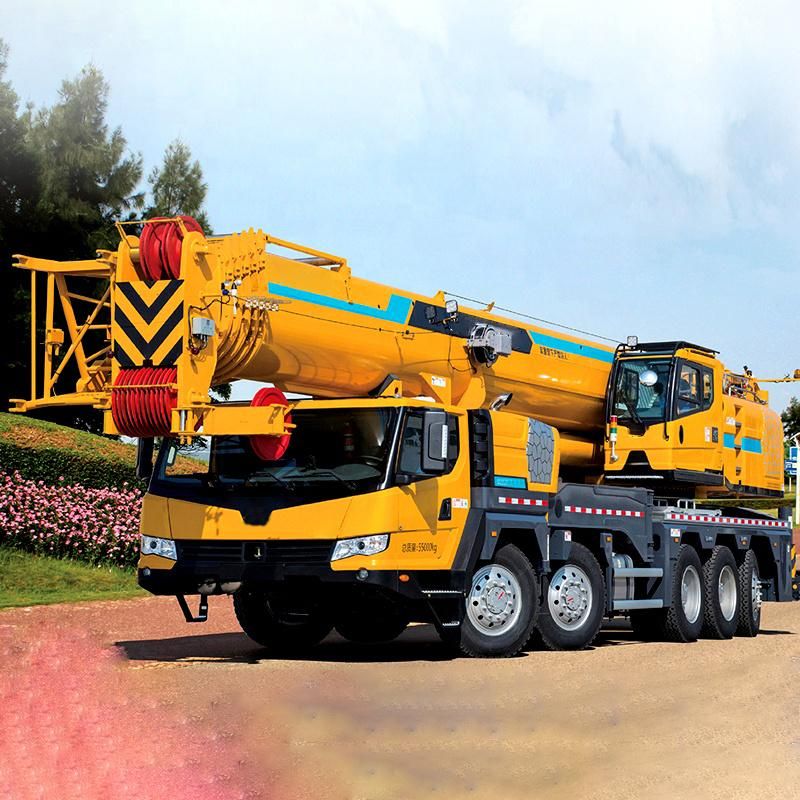

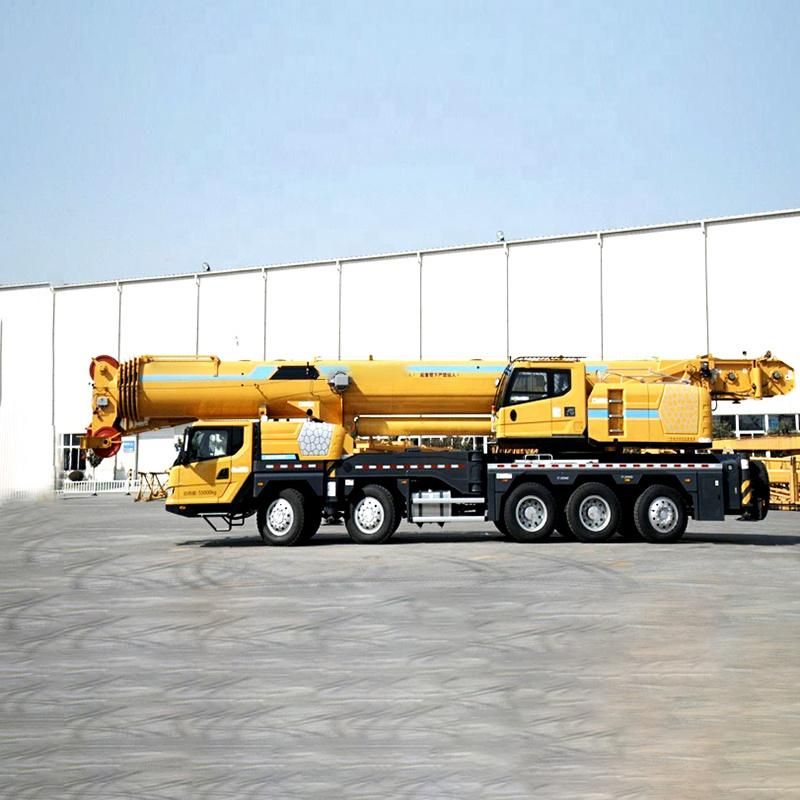

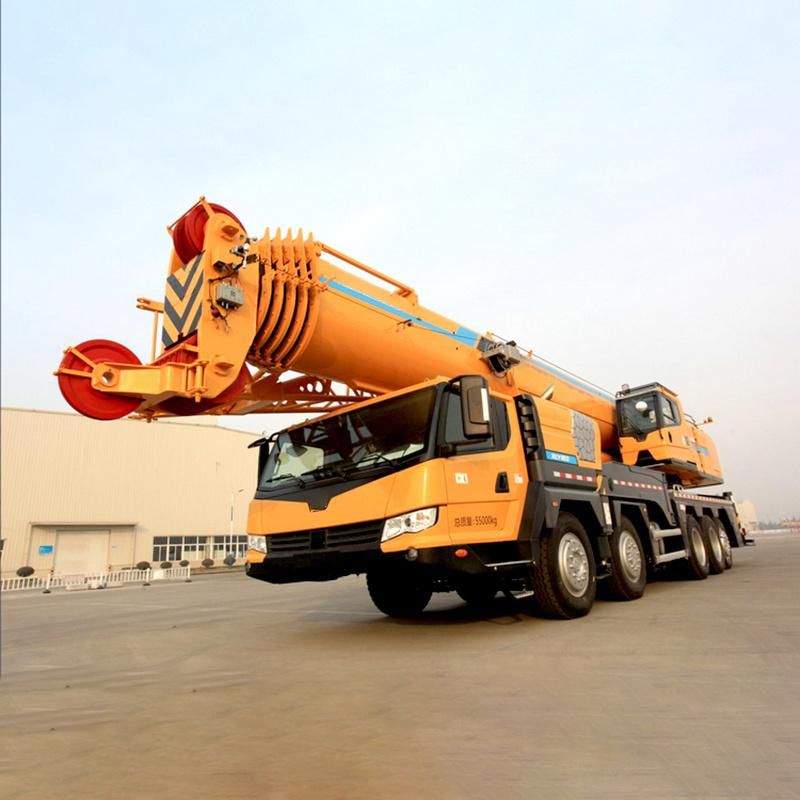

XCT100 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Product Parameters
Category
Item
UnitParameterXCT100(G1)

Outline DimensionsLength×Width×Heightmm15600×3000×3870Wheel basemm1920+3500+1420+1505Track(front/rear)mm2449/2315Front/Rear overhangmm2650/2765Front/Rear extensionmm1840/0


WeightMax. gross vehicle weightkg55000

Axle load1st Axlekg100002nd Axlekg100003rd Axlekg130004th Axlekg130005th Axlekg9000





TravelMax. travel speedkm/h90Min. turning diameterm23Min. ground clearancemm326Approach / departure angle°18/13Braking distance(initial brake speed at 30 km/h)m≤10Max. grade ability%45Exterior noise leveldB(A)≤88Noise level at seated positiondB(A)≤90 Oil consumption per 100 km L70(Weichai Power)65(Xi'an cummins)





Chassis





EngineModel--WP6G240E330OM906LA.E3A/2Rated power/ rotating speedkW/(r/min)
176/2300
190/2200Max. output torque/rotating speed
N.m/(r/min)
860/1200-1700
1000/1200-1600Model--WP12.430 E50ISM11E5 440Rated power/ rotating speedkW/(r/min)
316/1900
324/1900Max. output torque/ rotating speed
N.m/(r/min)
2060/1000-1400
2080/1200
