• Model NO.：LDY
• Maximum Lifting Weight：<20t
• Main Girder Form：Single Girder
• Type：Metallurgical
• Lifting Mechanism：Metallurgical Wire Rope Hoist
• Voltage：380V 50Hz, Customized
• Material：Q235,Q345 Steel Plate
• Working Duty：A6
• Color：Customized Color Acceptable
• Control Method：Pendant Control, Remote Control, Cabin Control
• Limited Switch：Include
• Lifting Speed：8m,Min
• Weight (Kg)：6440kg
• Protection Class：IP54
• Insulation Grade：F
• Environment Temperature：+60ºC
• Transport Package：Waterproof Cloth
• Specification：different
• Trademark：Kuangyuan brand
• Origin：Henan
• Production Capacity：5000sets,Year

Lifting capacity(t)2351016Lifting height(m)9/12/15/18/20Lifting speed(m/min)8m/min7m/min3.5m/minTraveling speed (m/min)20/30m/minWorking classA6Temperature-20~60ºCMotor typeCone squirrel-cage modelElectric current380V 50Hz three phase/CustomerizedWheel diameter270/400Width of rail30~70

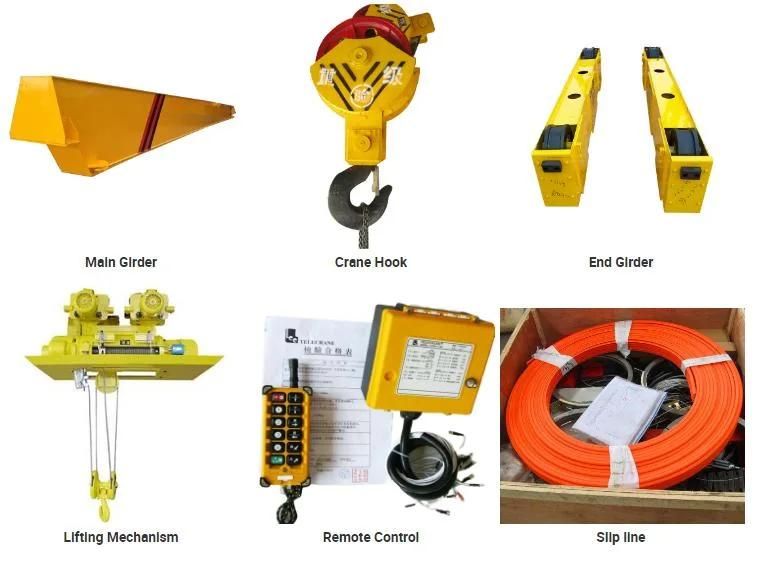

PRODUCT CONFIGURATION

COMPANY PROFILE

The 2,700-plus-member factory covers over 680,000 square meters and has a total asset of 660 million CNY. The 1,200-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding. The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.


We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

SHIPPING AND PAYMENT
FAQ
1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity
B: span
C: lift height
D: power sourceor other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .
B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
