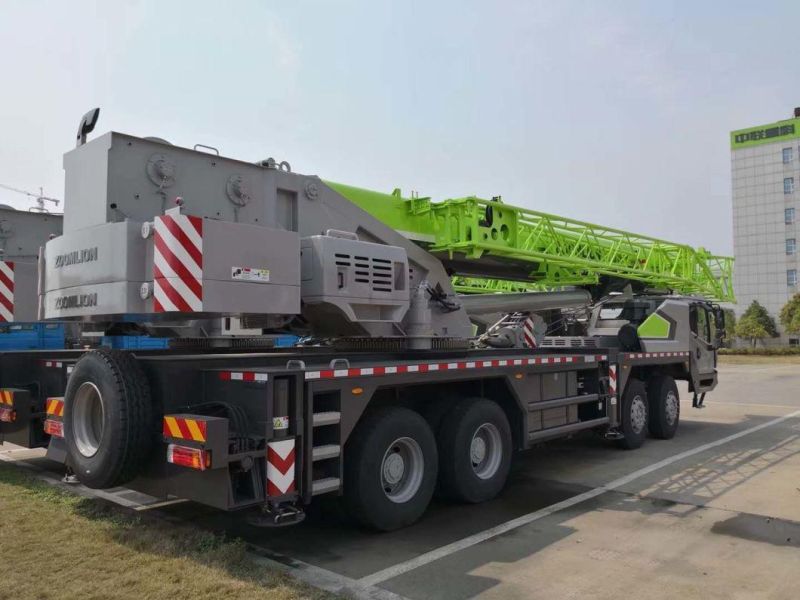

• Model NO.：Qy25D531r
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Straight Arm
• Oil Consumption Per Hundred Kilometers：35 L
• Transport Package：Roro,Container
• Specification：Max Lifting Capacity: 30 t
• Trademark：Zoomlion
• Origin：China
• HS Code：87051091
• Production Capacity：500unit,Month

Item UnitValueRemarksWorking    performanceMax.    rated lifting capacitykg25000 Max.    load moment of basic boomkN.m1029 Max.    load moment of main boom(fully extended)kN.m564 Max.    load moment of basic boomm11.1 Max.    lifting height of main boomm40.5These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm48.5Working    speeds              Max.    hoist rope speed(Main winch)m/min120At    the 4th  layerMax.    hoist rope speed(Auxiliary winch)m/min100At    the 2nd   layerBoom    demrricking up times40 Boom    demrricking up times80 Slewing  speedr/min0    -2.2 Driving    parametersMax.    driving  speedkm/h78 Max.    gradeability%37 Turning    diameterm≤22 Min.  ground clearancemm235 Oil    consumption per hundred kilometersL35 MassDeadweight    in driving conditionkg32400 Complete    vehicle kerb masskg32270 Front    axle loadkg6500 Rear    axle loadkg25900 DimensionsOverall    dimensions(L×W×H)mm13000×2550×3500 Outrigger    spread(L)m5.36 Outrigger    spread(W)mFully    extended:6.1,
     Intermediately    extended:4.2 Tail    slewing radiusmm3385 Main    boom lengthm10.6    - 40.0 Boom    angle°-2    - 80 jib    lengthm8.0 Offset°5,17,30
