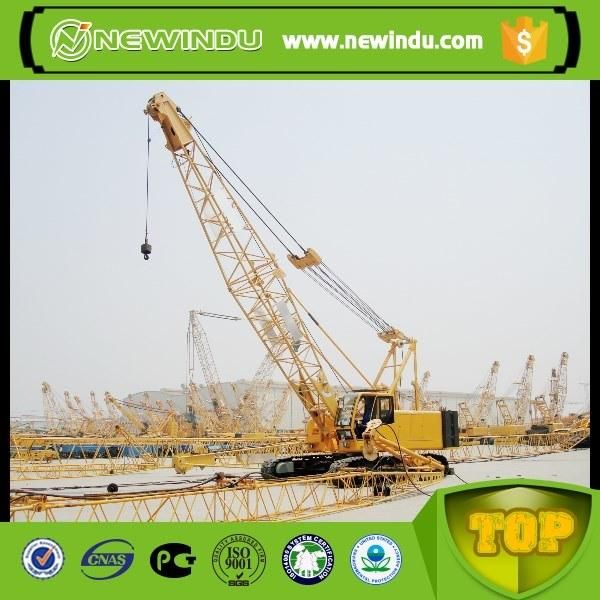

Zoomlion 80 Ton New Crawler Crane Zcc800h
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Overseas Service
- Max. Lifting Height：77.5m
- Rated Loading Capacity：80 Ton
- Certification：ISO9001, CE, RoHS, BV
- Condition：New
- Warranty：1 Year
Base Info
- Model NO.：ZCC800H
- Rated Lifting Moment：830kn.M
- Span：13-58m
- Overall Dimension：13.5×3.4×3.2m
- Engine Power：199kw
- Transport Package：Nude Package
- Specification：80 ton
- Trademark：ZOOMLION
- Origin：Hunan, China
- Production Capacity：100pieces,Month
Description
Ser. No.
Item
Unit
Value
Remark
1
Maximum lifting weight ×radius
t×m
80×4
2
Dead weight with basic boom attached
t
72.8
3
Length of main boom
m
13~58
4
Length of fixed jib
m
6~18
5
Maximum lifting weight of fixed jib
t
7
6
Fixed jib installation angle
°
10,30
7
Max. length of main boom + fixed jib
m
49+18
8
Max.speed of single rope on the drum of main winch
m/min
125 (110, hook free falling)
Fourth layer of drum
9
Max.speed of single rope on the drum of auxiliary winch
m/min
125
Fourth layer of drum
10
Max.speed of single rope on the drum of derricking winch)
m/min
93
Fourth layer of drum
11
Swing speed
rpm
0~2
12
Travelling speed
km/h
0~1.57
13
Gradeability
%
30
14
Pressure to the ground
MPa
0.083
15
Outline dimensions length×width×height
m
13.5×3.4×3.2
Containing A-frame and bottom boom section
16
Rated power / speed
kW/r/min
199/2000
Weichai Power
17
Max. output torque / speed
Nm/ r/min
1270/1200~1500
18
Crawler gauge ×crawler length × crawler width
mm
4200×5440×800
Extended
2600×5440×800
Retracted
19
Environmental radiation noise during operation
dB
≤107
20
Noise in the cab during operation
dB
≤79
