• Model NO.：QY70V532
• Shaft Number：4
• Crane Jib：Two-Arm
• Type：Folding
• Max. Rated Lifting Capacity：25000kg
• Max. Lifting Height of Jib：46.58m
• Max. Driving  Speed：75km,H
• Min.  Ground Clearance：280mm
• Transport Package：Comply with Export Packaging Requirements for Min
• Specification：12700*2500*3450 mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：84262000
• Production Capacity：100 Units Per Month

Overview Product Description



Product Parameters



ItemUnitValueRemarksWorking    performanceMax.    rated lifting capacitykg70000 Max.    load moment of basic boomkN.m2352 Max.    load moment of main boom(fully extended)kN.m1098 Max.    load moment of basic boomm12.2 Max.    lifting height of main boomm44.2These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm60.2Working    speeds              Max.    hoist rope speed(Main winch)m/min≥135Drum    4th    layerMax.    hoist rope speed(Auxiliary winch)m/min≥110Drum    2nd    layerBoom    demrricking up times57 Boom    demrricking up times107 Slewing  speedr/min1.8 Driving
     parametersMax.    driving  speedkm/h75 Max.    gradeability%37 Min.    Turning diameterm24 Min.  ground clearancemm280 Oil    consumption per hundred kilometersL46 MassDeadweight    in driving conditionkg45000 Complete    vehicle kerb masskg44870 Front    axle loadkg19000 Rear    axle loadkg26000 DimensionsOverall    dimensions(L×W×H)mm14100×2750×3750 Longitudinal    distance between outriggersm6.00 Transversal    distance between outriggersmFully    extended:7.6,

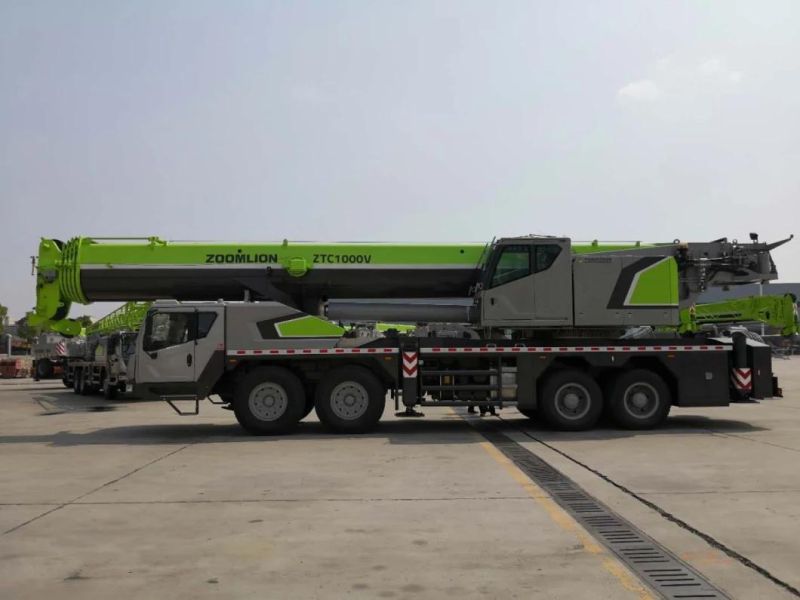

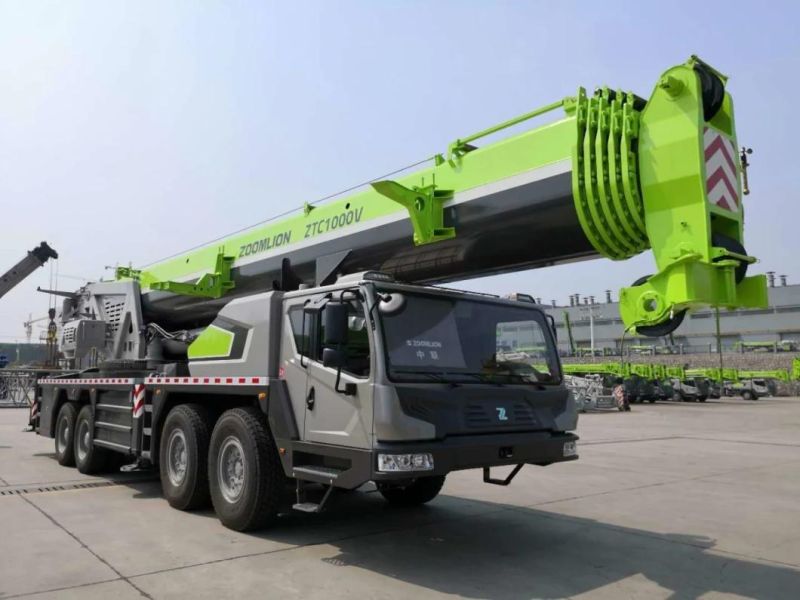

     Half-    extended:5.04 Tail    slewing radiusmm4020 Boom    lengthm11.4    - 43.0 Boom    angle°-2    - 80 Jib    lengthm9.5,16.0 Offset°0,30  Detailed Photos
