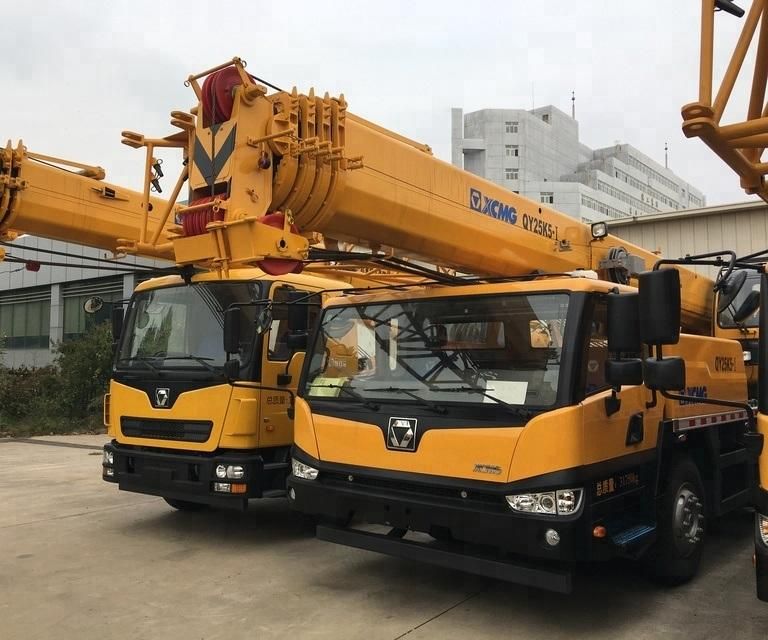

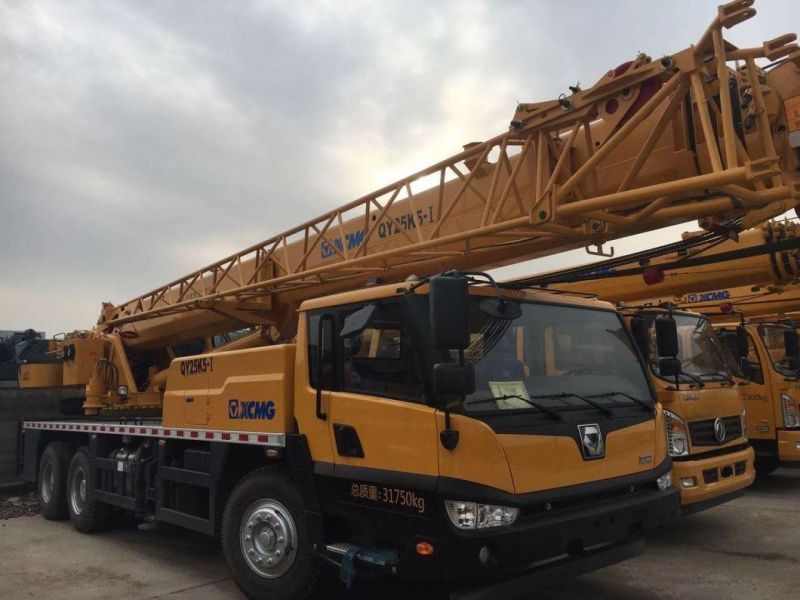

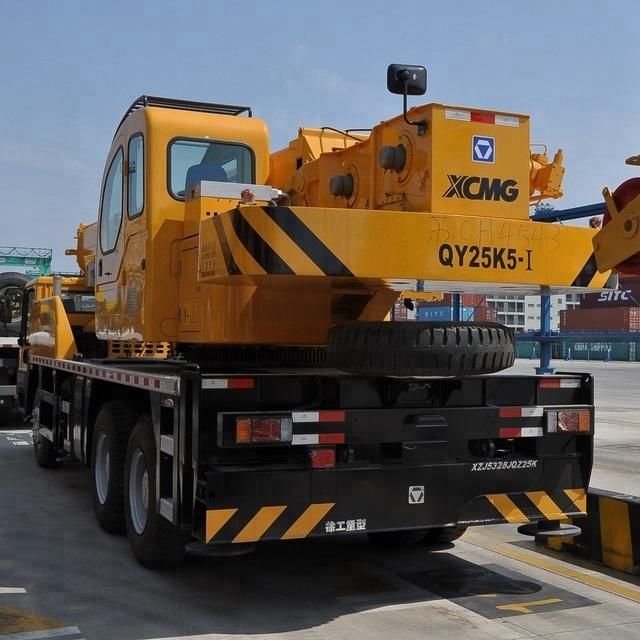

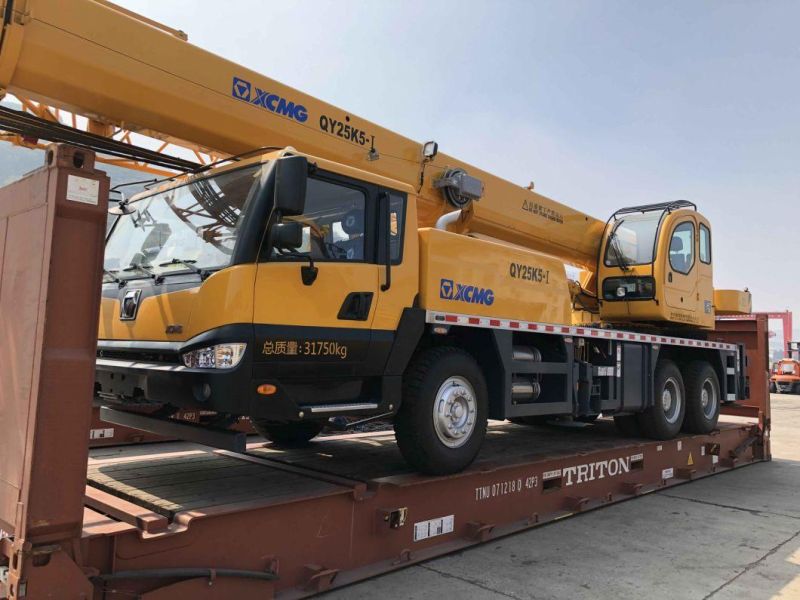

• Model NO.：QY25K5-I
• Type：Straight Arm
• Max. Travel Speed：80km,H
• Max. Grade Ability：40%
• Boom：39.5m
• Length of Boom + Jib：47.8m
• Specification：12300*2500*3380mm
• Trademark：XCMG
• Origin：China
• HS Code：87051091
• Production Capacity：10000 Units,Year

DescriptionUnitParameter valueOverall lengthmm12300Overall widthmm2500Overall Heightmm3350Wheel Basemm4425+1350Trackmm2074/1834/1834Total vehicle mass in travel configurationkg31750Axle load   Front axlekg6550Rear axle25200Engine Model SC8DK280Q3Engine rated powerkw/(r/min)206/2200Engine rated torqueN.m/(r/min)1112/1400Max. travel speedkm/h80Min. turning diameterm22Min. ground clearancemm275Max. grade ability%40Approach angle°16Departure angle°13Braking distance (at 30 km/h, full load )m≤10Oil consumption per 100kmL≤37Exterior noise level during acceleration travelingdB (A)88Noise level at seated positiondB (A)90



.Main Technical Data Table for Lifting Operation

DescriptionUnitParameter valueMax. total rated lifting capacityt25Min. rated working radiusm3Turning radius at turntable tailmm3065Max. load momentBase boomKN.m961Fully-extended boom533Fully-extended boom + Jib451Outrigger spanLongitudinalm6Lateral10.5Hoist heightBase boomm10.5Fully-extended boom39.2Fully-extended boom + Jib47.2Boom lengthBase boomm10.4Fully-extended boom39.5Fully-extended boom + Jib47.8Jib offset angle°0, 15, 30Time for boom raisings68Time for boom extending fullys150Max. slewing speedr/min2.5Outrigger extending and retracting timeOutriggerExtendings35beamSimultaneously Retracting30 SimultaneouslyOutriggerExtending40jackSimultaneously Retracting35 SimultaneouslyHoisting speedMain winchFull loadm/min75(single lineNo load125 Auxiliary winchFull load75 No load125Exterior noise leveldB (A)≤122Noise level at seated positiondB (A)≤90
