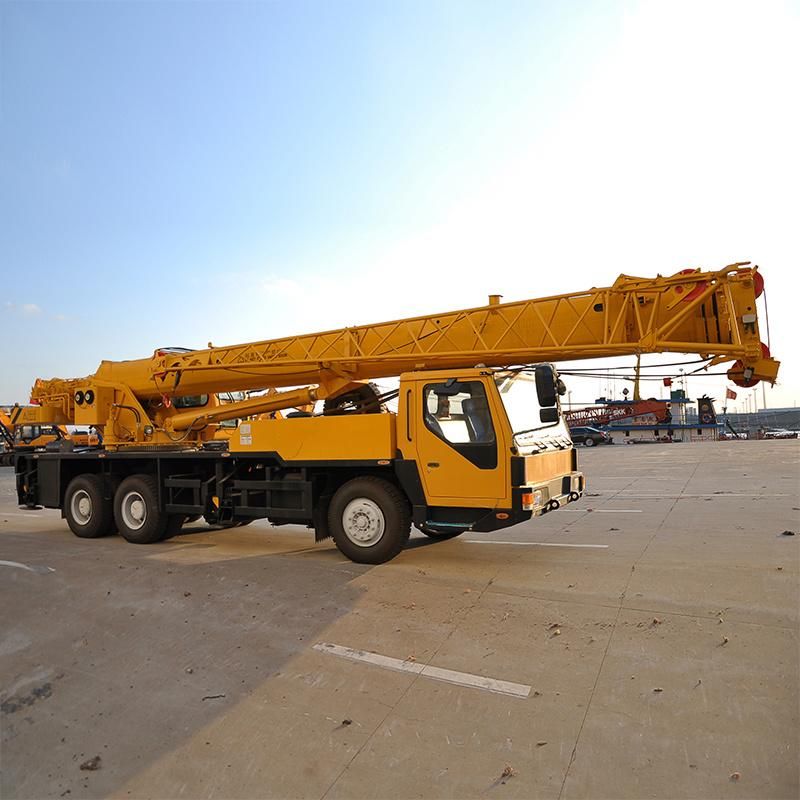

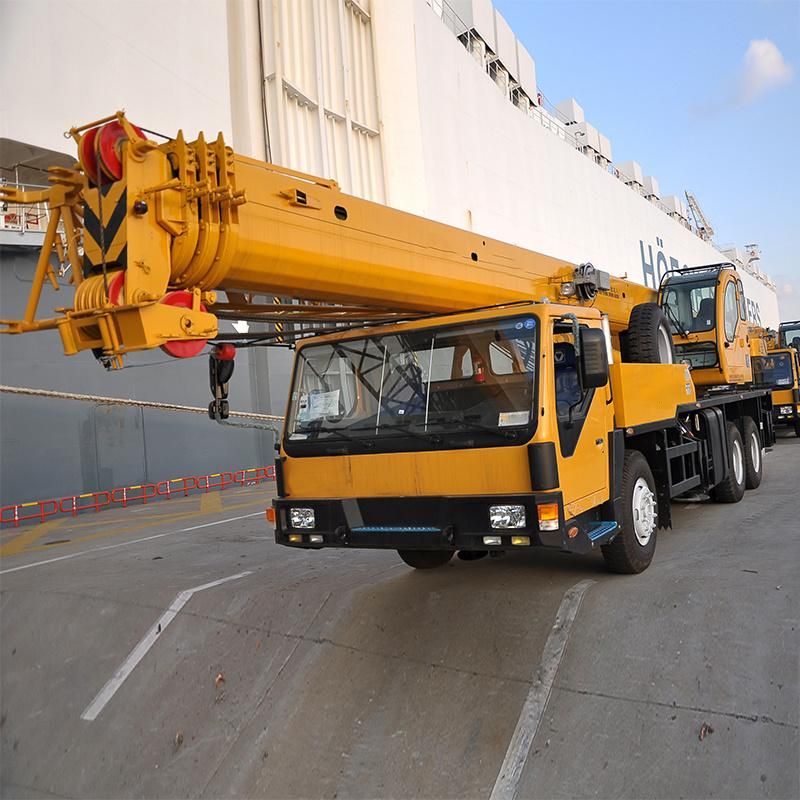

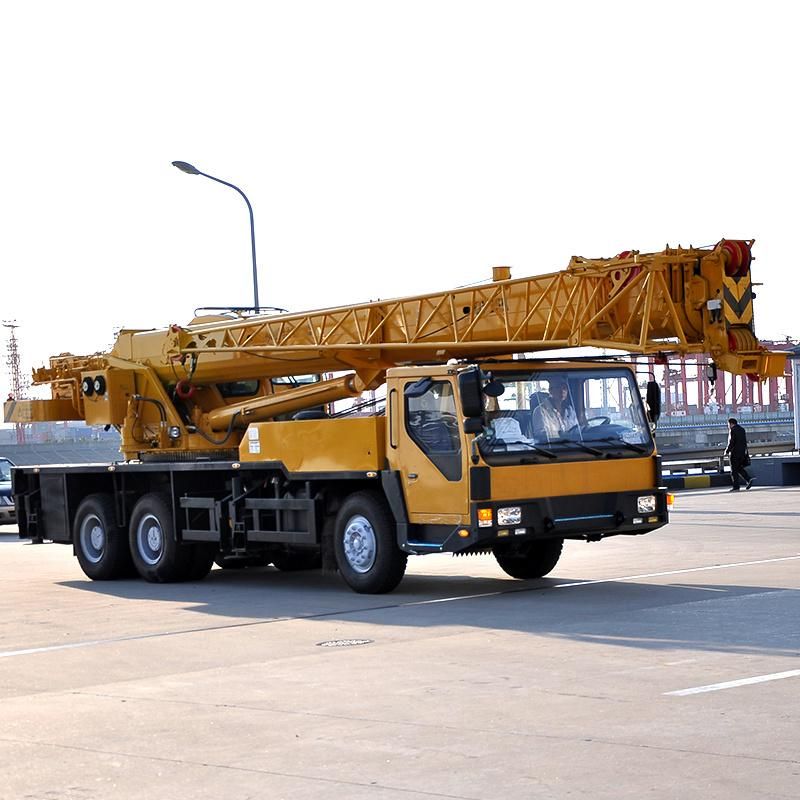

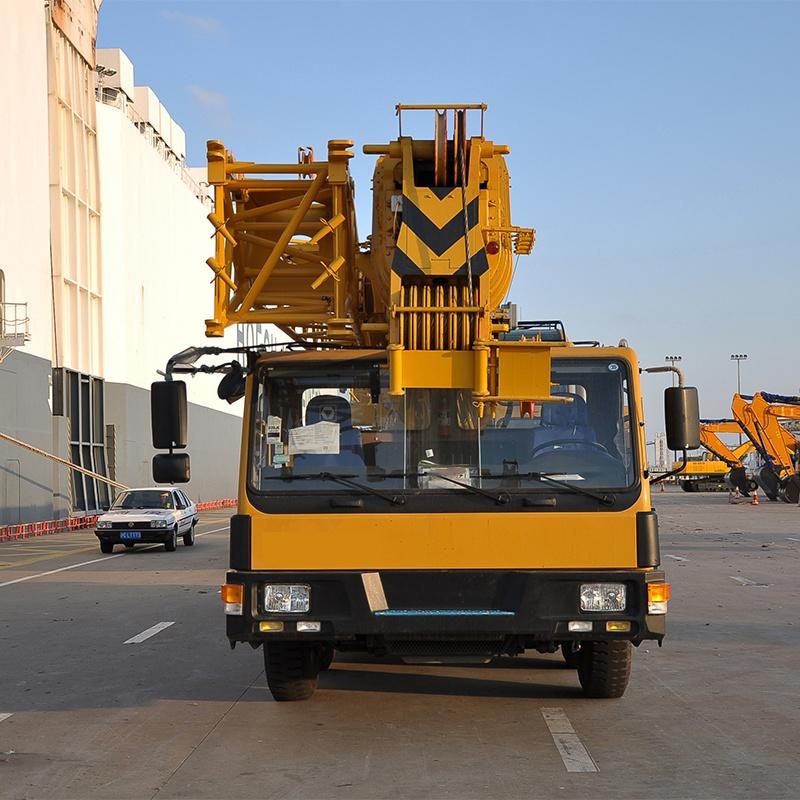

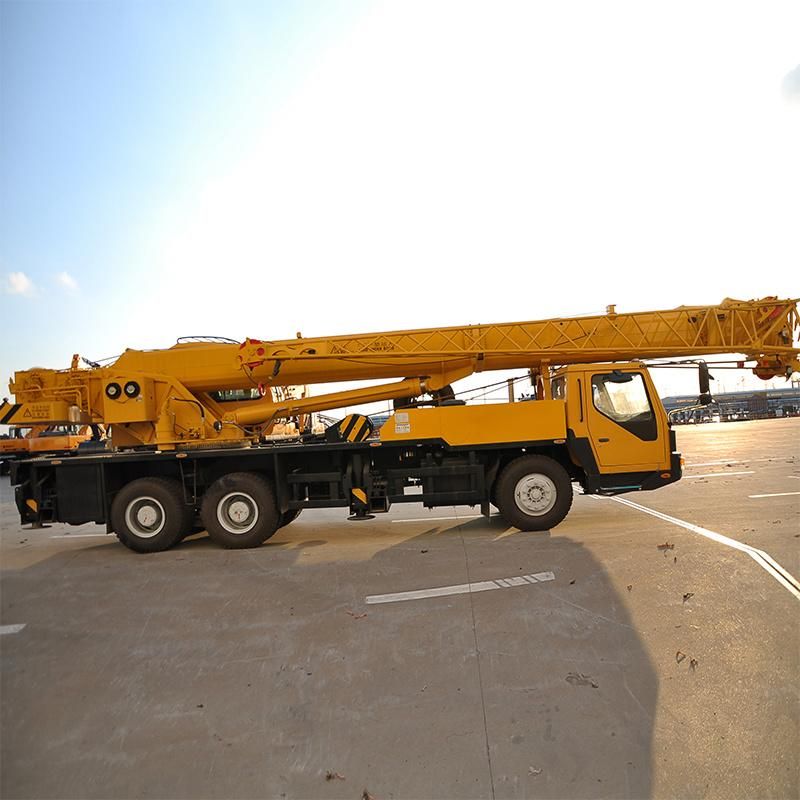

Hot Sale 25ton Truck Crane Qy25K-I RC Hydraulic Mobile Crane Price for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Online,Local
- Warranty：1 Year
- Certification：GS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：42m
- Maximum Lifting Weight：25000kg
Base Info
- Model NO.：QY25K-I
- Crane Jib：Four-Arm
- Type：Telescopic Boom
- Rated Power：206,2200 Kw,Rpm
- Overall Weight：29400kg
- Wheel Base：(4425+1350)mm
- Max. Lifting Height：34.19m
- Span：5.14m
- Transport Package：Roro,Bulk,Container
- Specification：12650x2500x3380mm
- Origin：China
- HS Code：8705109100
- Production Capacity：500 Units,Year
Description
Overview
Product DescriptionUnit Parameter value Overall length mm 12650 Overall width mm 2500 Overall Height mm 3380 Wheel Base mm 4425+1350 Track mm 2074/1834/1834 Total vehicle mass in travel configuration kg 29400 Axle load Front axle kg 6600 Rear axle 22800 Engine Model SC8DK280Q3 Engine rated power kw/(r/min) 206/2200 Engine rated torque N.m/(r/min) 1112/1400 Max. travel speed km/h 75 Min. travel speed km/h 2.9 Min. turning diameter m 22 Min. ground clearance mm 260 Max. grade ability % 30 Approach angle ° 16 Departure angle ° 13 Braking distance (at 30 km/h, full load ) m ≤10 Oil consumption per 100km L ≤37 Exterior noise level during acceleration traveling dB (A) 84 Noise level at seated position dB (A) 90
