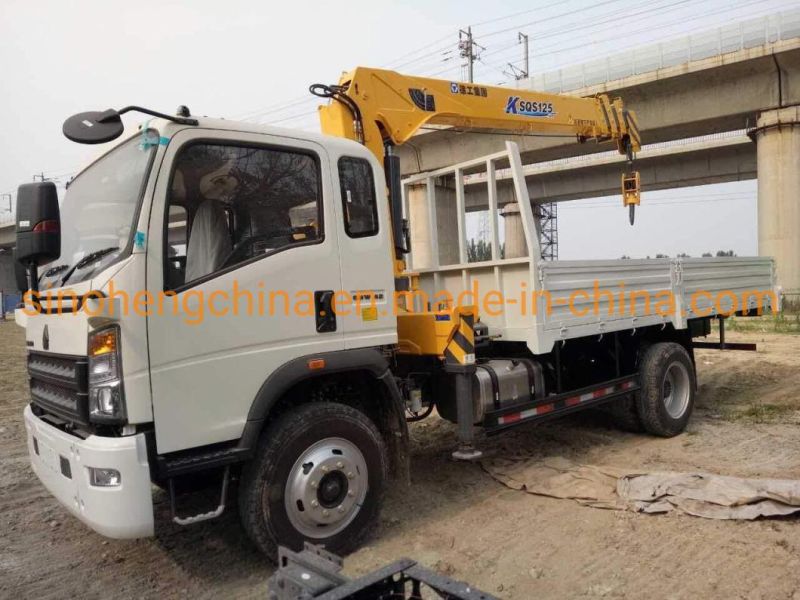

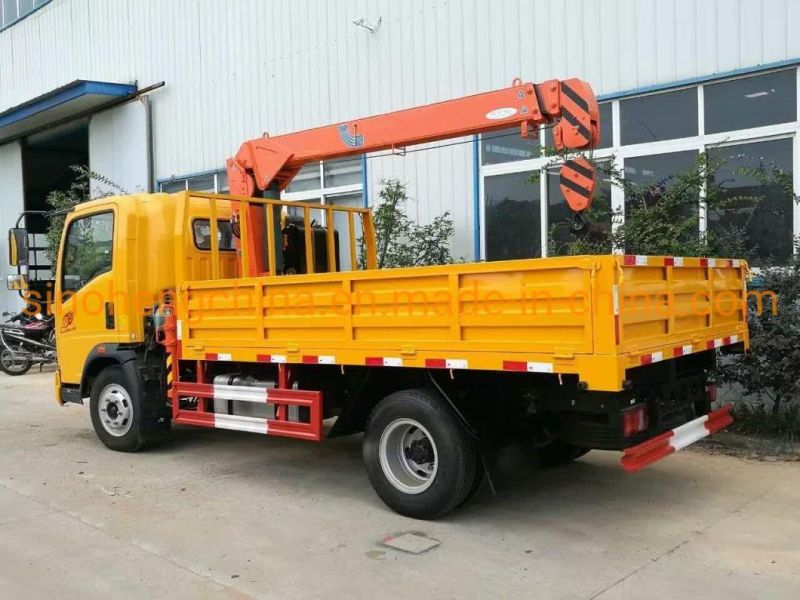

Dongfeng 5 Ton Truck Mounted Crane 5000 Kgs

Jinan Sinoheng Import and Export Co., Ltd.
  • Certification：ISO9001: 2000
  • Condition：New
  • Maximum Lifting Weight：5-7t
  • Type：Trukc Mounted Crane
  • Max Lifting Capacity：5000kg
  • Recommend Power Needed at Recommend Oil：18kw

Base Info

  • Model NO.：SQ5ZK2Q,SQ5ZK3Q
  • Crane Weight：2011,2117kg
  • Max Lifting Moment：10.5t. M
  • Max Oil Flow of Hydraulic System：25L,Min
  • Rated Pressure of Hydraulic System：28MPa
  • Oil Tank Capacity：90L
  • Installation Space：1050mm
  • Application：Construction Usage
  • Power Source：Hydraulic
  • Transport Package：Nude,Container
  • Specification：ISO
  • Trademark：Dongfeng
  • Origin：China
  • HS Code：8705102200
  • Production Capacity：500PCS,Month

Description

CA1140PK2L3EA80  ; DFL1140B; EQ1126KJ1;HFC1132KR1K3; LZ1120LAPT; EQ1141NBJ2;EQ5121GFJ; EQ5201GFJ6; HN1310P29D6M3J ;NXG1160D3ZAL1X;
  SQ5ZK2Q Lifting capability diagramWorking radius (m)2.14.44 6.28.01Lifting capacity (kg)5000240016001050 SQ5ZK3Q Lifting capability diagramWorking radius (m)2.14.546.38.119.92Lifting capacity (kg)5000240016001050700Dongfeng 5 Ton Truck Mounted Crane 5000 KgsDongfeng 5 Ton Truck Mounted Crane 5000 KgsDongfeng 5 Ton Truck Mounted Crane 5000 Kgs
