• Model NO.：QY25K-II
• Engine Rated Power：213kw
• Transport Package：Comply with Export Packaging Requirment
• Specification：12650*2500*3380,3290mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84295100
• Production Capacity：10000 Units,Year

WeightTotal weight in travelkg29400Front axle loadkg6200Rear axle loadkg23200PowerEngine model SC8DK280Q3 / WD615.329(domestic III)Engine rated powerkW/(r/min)206/2200   213/2200Engine rated torqueN.m/(r/min)1112/1400  1160/1400TravelMax. travel speedkm/h75Min. turning diameterm21.5Min. ground clearancemm275Approach angle°16Departure angle°13Max. grade ability%30Fuel consumption for 100kmL≈37Main performanceMax. rated total lifting capacityt25Min. rated working radiusmm3000Turning radius at turntable tailm3.065Max. lifting torquekN.m1010Base boomm10.7Fully extended boomm34.19Fully extended boom+jibm42.15Longitudinal outrigger spanm5.14Lateral outrigger spanm6Working speedBoom luffing times75Boom full extension times100Max. swing speedr/min≥2.5Max. speed of main winch (single rope)m/min≥120Max. speed of aux. winch (single rope)m/min≥120

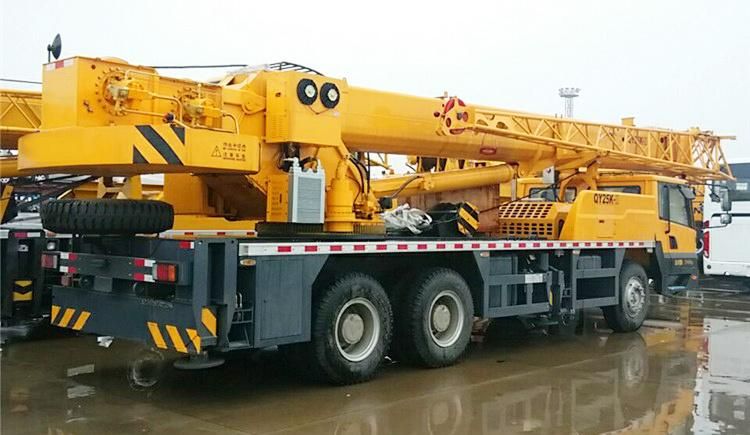

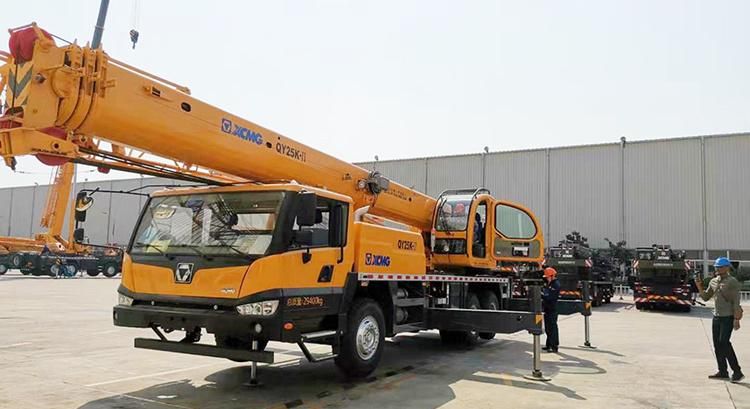

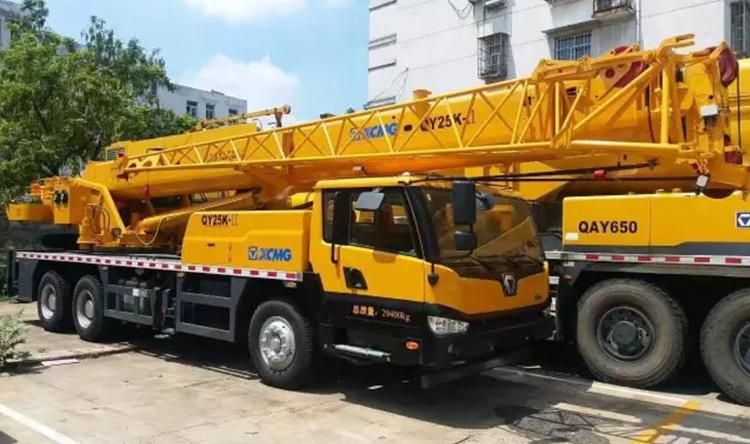

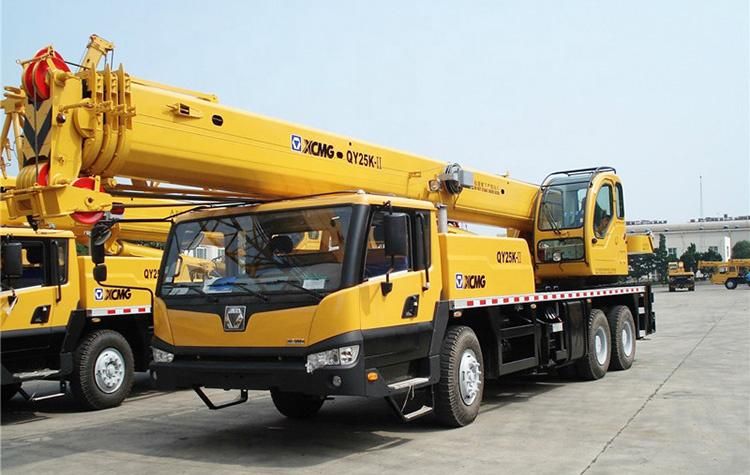

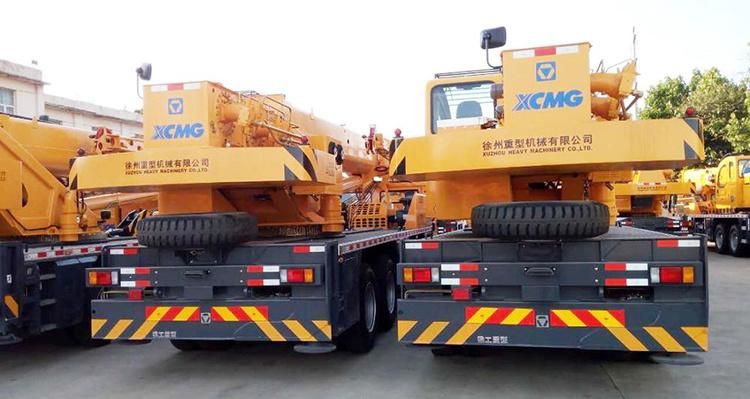

[Product Picture]





[Company Information]

[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
