• Model NO.：hydraulic truck crane
• Type：Folding
• Overall Dimension：12650X2500X3380mm
• Wheel Base：5025+1350mm
• Track：2074,1834,1834mm
• Max. Travel Speed：80km,H
• Min. Travel Speed：3km,H
• Min. Turning Diameter：22m
• Min. Ground Clearance：291mm
• Max. Grade Ability：40%
• Application：Construction Lifting
• Engine Rated Power：206,2200kw,(R,Min)
• Engine Rated Torque：1112,1400n.M,(R,Min)
• Approach Angle：19degree
• Departure Angle：13degree
• Braking Distance：Less Than10m
• Max. Total Rated Lifting Capacity：30t
• Transport Package：Nacked
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705109100
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. hydraulic truck crane Type Folding Overall Dimension 12650X2500X3380mm Wheel Base 5025+1350mm Track 2074/1834/1834mm Max. Travel Speed 80km/H Min. Travel Speed 3km/H Min. Turning Diameter 22m Min. Ground Clearance 291mm Max. Grade Ability 40% Application Construction Lifting Engine Rated Power 206/2200kw/(R/Min) Engine Rated Torque 1112/1400n.M/(R/Min) Approach Angle 19degree Departure Angle 13degree Braking Distance Less Than10m Max. Total Rated Lifting Capacity 30t Transport Package Nacked Specification CE Trademark Super-above Origin Jiangsu, China HS Code 8705109100 Production Capacity 10000PCS/Year

Product Description

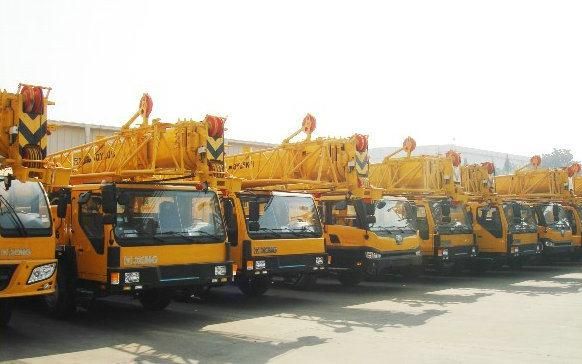

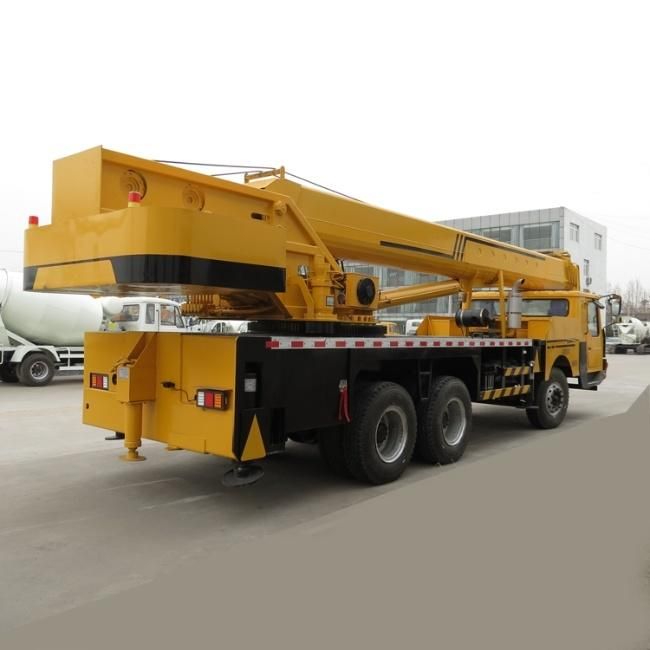

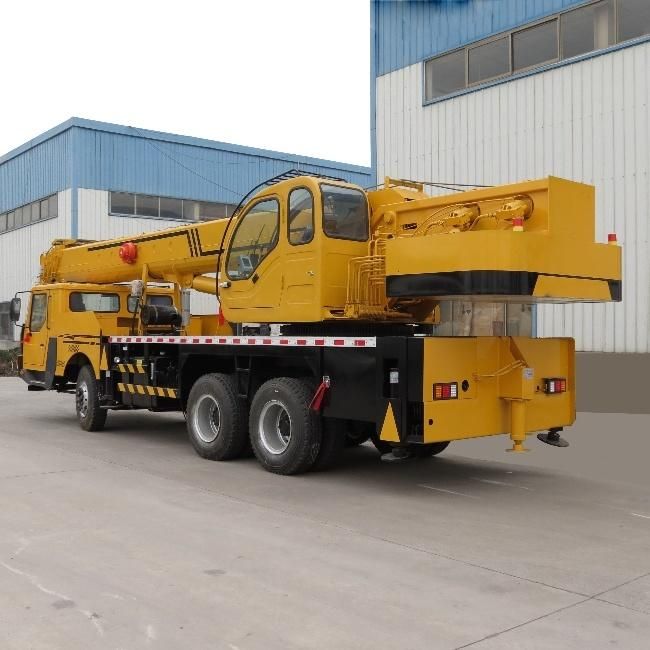

30 ton hydraulic mobile truck crane QY30K5-I

Brief Introductions of  30ton mobile truck crane
1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.

2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.

3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.

4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.

5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.

Specifications of 30tons Hydraulic Truck Crane

Description	Unit	Parameter value
Overall length	mm	12570
Overall width	mm	2500
Overall Height	mm	3390
Wheel Base	mm	5025+1350
Track	mm	2074/1834/1834
Total vehicle mass in travel configuration	kg	32400
Axle load   Front axle	kg	7600
Axle load  Rear axle	kg	24800
Engine Model		SC8DK280Q3
Engine rated power	kw/(r/min)	206/2200
Engine rated torque	N.m/(r/min)	1112/1400
Max. travel speed	km/h	80
Min. turning diameter	m	22
Min. ground clearance	mm	291
Max. grade ability	%	40
Approach angle	°	19
Departure angle	°	13
Braking distance (at 30 km/h, full load )	m	≤10
Oil consumption per 100km	L	40
Exterior noise level during acceleration traveling	dB (A)	88
Noise level at seated position	dB (A)	90
