• Model NO.：Qy50kd
• Transport Package：Nude Package
• Specification：13930*2780*3630mm
• Trademark：X
• Origin：China.
• HS Code：8401200000

DimensionUnitQY50KA/QY50KDOverall lengthmm13750Overall widthmm2800Overall heightmm3520Weight  Total weight in travelkg41000Front axle loadkg15000Rear axle loadkg26000Power  Engine model WD615.334(domestic III)Engine rated powerkW/(r/min)247/2200Engine rated torqueN.m/(r/min)1350/1400Travel  Max. travel speedkm/h80Min. turning diameterm24Min. ground clearancemm291Approach angle°17Departure angle°11Max. grade ability%40Fuel consumption for 100kmL45Main performance  Max. rated total lifting capacityt50Min. rated working radiusm3Turning radius at turntable tailm3.482Max. lifting torquekN.m1764Base boomm11.3Fully extended boomm42.7Fully extended boom+ jibm57.7Longitudinal outrigger spanm5.91Lateral outrigger spanm6.9Working speed  Boom luffing times88Boom full extension times180Max. swing speedr/min≥2.0Max. speed of main winch (single rope) (no load)m/min≥110Max. speed of aux. winch (single rope) (no load)m/min≥110

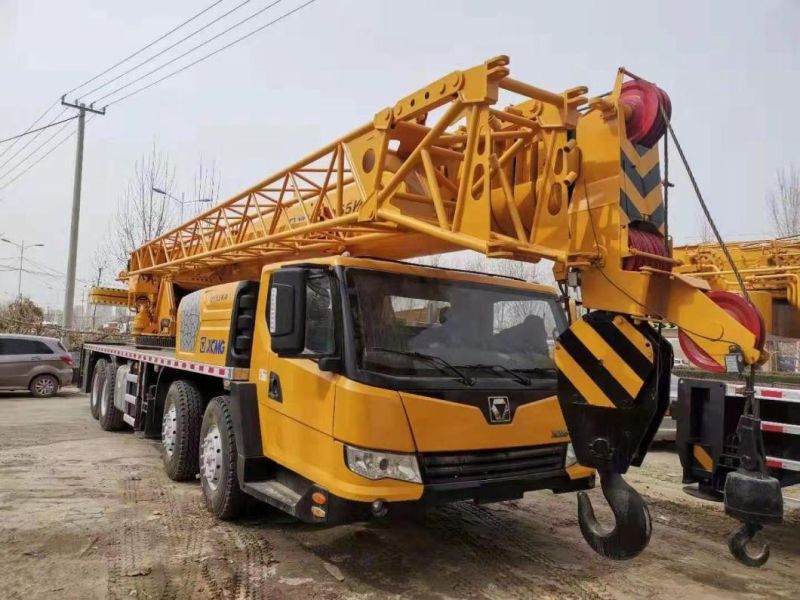

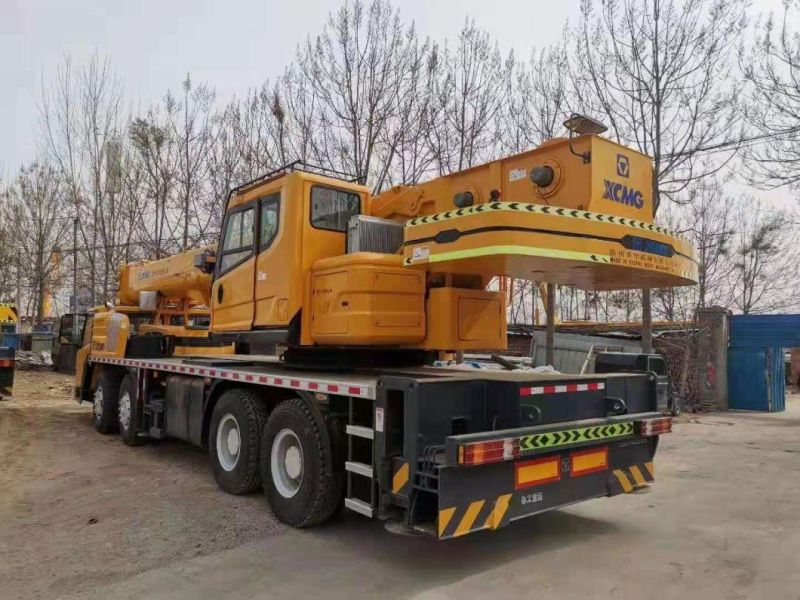

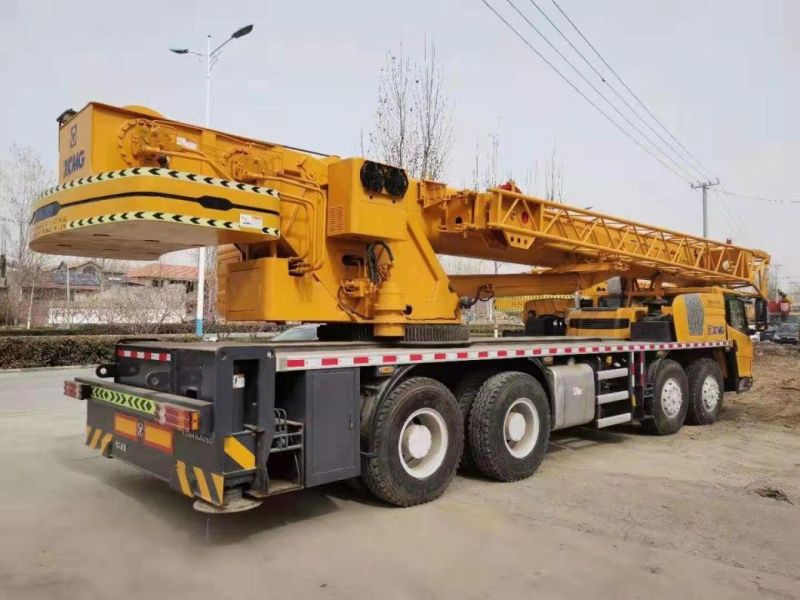

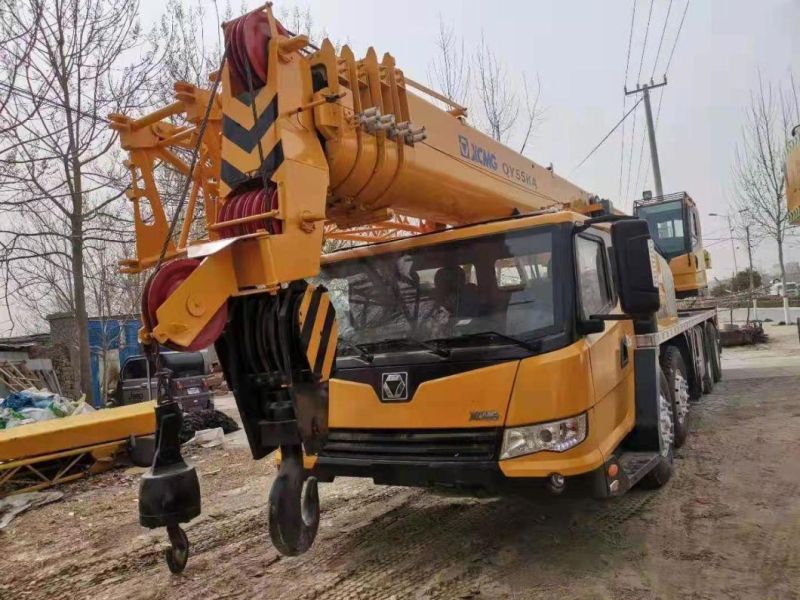

Details Images

Company Introduction:
Zhengzhou Dongfeng Mid-south Enterprise Co., Ltd is the second subsidiary company of Dongdfeng Group, which was established in 1969. We are manufacture and exporter of Dongfeng Special Purpose Vehicle Series:
  . Concrete Mixer Trucks, Suction Sewage Trucks, Sweeper Trucks, Fuel Tanker, Water Tanker, Refrigerated Trucks, High Platform Truck, Garbage Trucks, Fire Fighting Trucks, Truck Crane and So on.

Commercial Vehicle
Dump Truck Series:
6×4, 8×4 ---Heavy duty tipper Dongfeng T-Lift with loading capacity 20 to 55Ton,
6×4, 4×2--- Medium duty tipper Donfeng Kingrun with loading capacity 15 to 20Ton,
4×2--- Light duty tipper truck Dongfeng Rituo with loading capacity from 3Ton to 14Ton.

Tractor Truck Series: 4×2,6×4 Dongfeng Kingland Tractor Head Special suit for middle and long distance transport.

Cargo Box Truck:
Dolica 4x2 ---light cargo truck with capacity from 2 to 10 ton,
Captain 4x2 ---high end light cargo truck with capacity from 2-10 ton,
Kingrun 4x2 ---Medium duty cargo truck with capacity from 13-20 ton,
Kingland 6x2, 6x4 and 8x4 ---Heavy duty cargo truck with capacity from 20-40 ton.

Motor Vehicle Spare Parts: Series Auto Parts of Series Vehicle and Machinery, like filter, PTO, hydraulic pump and so on.

Construction Machinery: Concrete mixer, Concrete Batching Plant, Road Roller, Wheel Loader, Excavator, Forklift, Crane and So On.

Farm Machinery and Farm Machinery parts:
Wheel and Crawler Farm Tractor from 11 Hp to 220Hp, Planter, Harvest Machinery and Farm Implement and So on.
