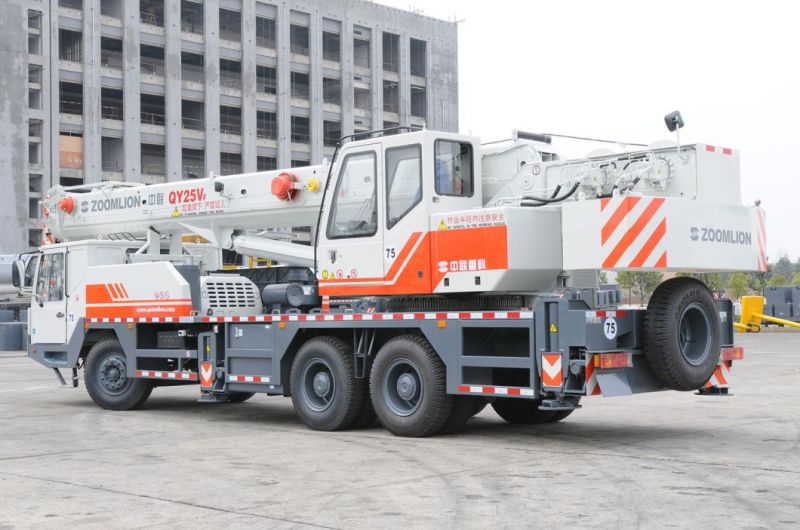

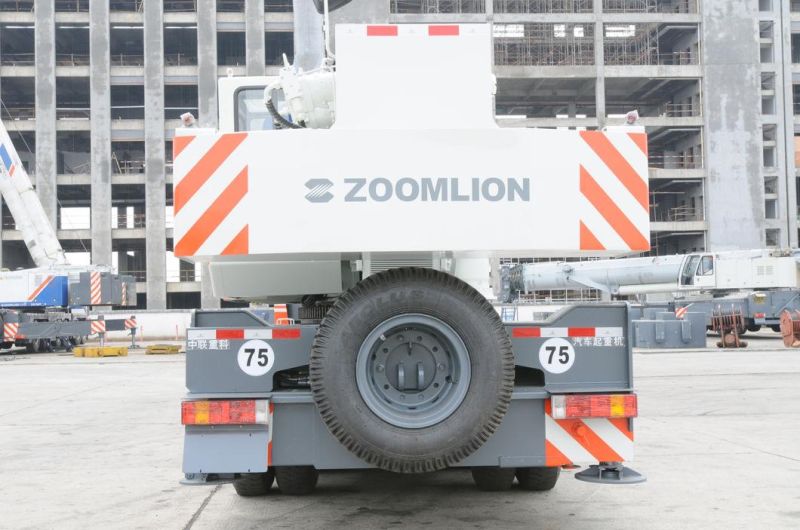

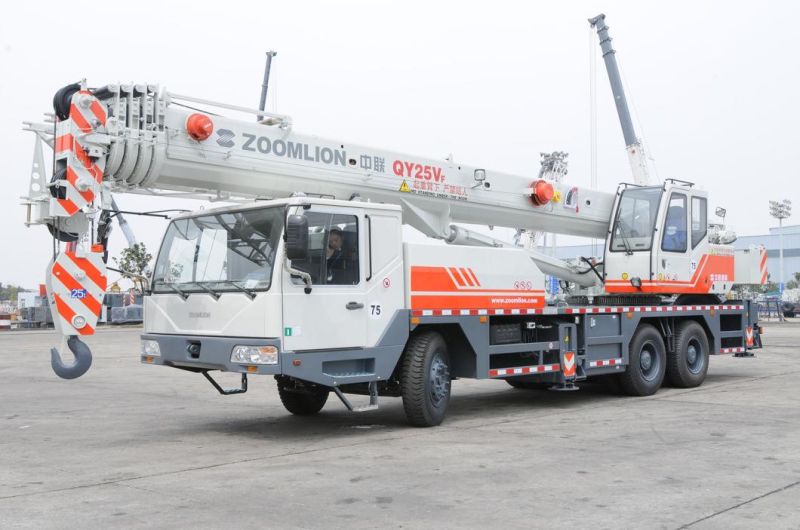

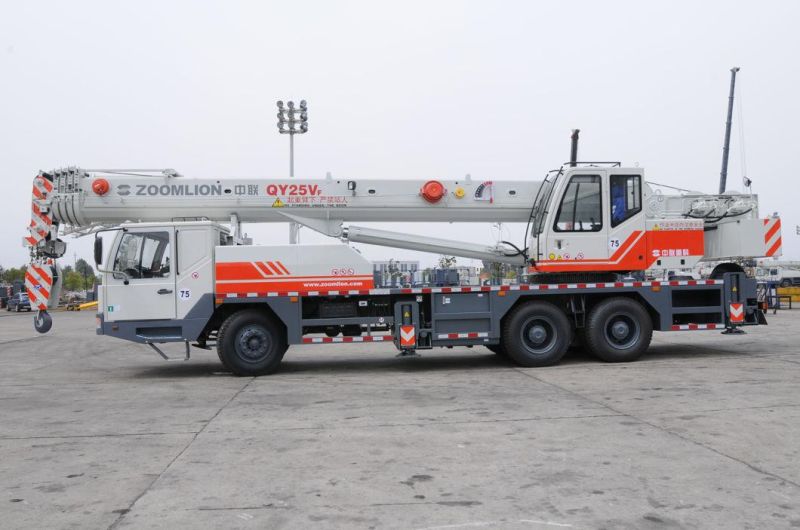

• Model NO.：QY25V
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Folding
• Dimension (Lxwxh)：12510X2500X3455mm
• Max. Rated Lifting Capacity：25000kg
• Max. Lifting Height of Main Boom：3870mm
• Max. Lifting Height of Jib：4658mm
• Main Boom Length：10300~38500mm
• Jib Length：8000mm
• Transport Package：by Roro, Bulk Cargo or Container Transprot
• Specification：25 Ton
• Trademark：ZOOMLION
• Origin：Hunan, China
• HS Code：84295100
• Production Capacity：50 Uint, Month

Item                                                                         _Unit                                               ValueWork
performanceMax. rated lifting capacitykg25000 Max. load moment of basic boomkN.m950 Max. load moment of main boom (fully extended)kN.m525 Max. lifting height of main boomm38.7These parameters do not include deflection of main boom and jib.Max. lifting height of jibm46.58Work speedsMax. hoist rope speed (Main winch)m/min135At 3 ^rd  layerMax. hoist rope speed (Auxiliary winch)m/min100At 3 ^rd  layerBoom derricking up times45 Boom telescoping out times120 Max. slewing speedr/min2.6 DrivingMax. driving speedkm/h72 Max. gradeability%34 Min. turning diameterm≤20 Min. ground clearancemm235 Limits for exhaust pollutants and smoke Comply with related standardsGB3847-2005 GB17691-2005 National stage IIIOil consumption per hundred kilometerL38 MassDeadweight in driving conditionkg29400 Complete vehicle kerb masskg29270 Front axle loadkg6370 Rear axle loadkg22900 DimensionsOverall dimensions (L × W × H)mm12510×2500×3455 Outrigger spread (L)m5.15 Outrigger spread (W)m6.1 Main boom lengthm10.3 - 38.5 Boom angle.-2 - 80 Jib lengthm8 Offset.0, 30 ChassisModel ZLJ5323JQZ Type IICode: ZLJ5323JQZV3EngineModelkw/r/minWP6.240 Rated powern.m/r/min176/2300 Max. output torque 900/1400 - 1600 Manufacturer Zoomlion Heavy Industry Science and Technology Co., Ltd.







Our company
Newindu Construction Engineering (Shanghai) Co., Ltd. is professional in construction machinery for nearly 10 years, exporting with good quality and low price, having excavator, truck crane, bulldozer, wheel loader, motor grader, drilling rig, dump truck, road roller, forklift, reach stacker, and also including the spare parts, etc.
